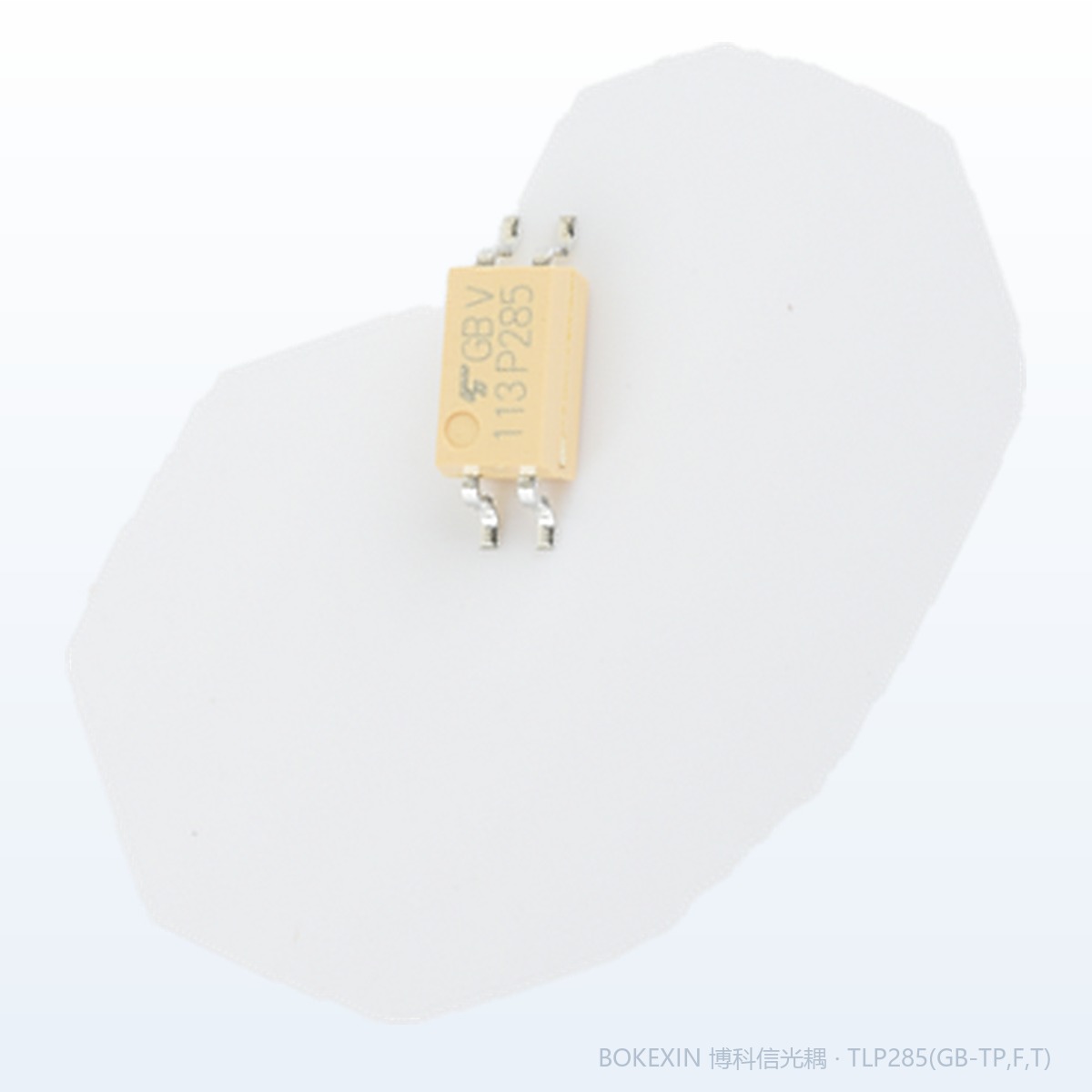

产品实拍图
/01.jpg)
本页为博科信现货实拍（器件丝印 见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。
关键参数速览
- 正向电压 VF
- 1.3
- 正向电流 IF
- 1.3
- 集电极-发射极电压 VCEO
- 80
- 工作温度 TA
- −1.0 (Ta≥75°C)
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| CHARACTERISTIC | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Forward Current | IF(RMS) | 50 | mA |
| Forward Current Derating | ∆IF /°C | −1.0 (Ta≥75°C) | mA /°C |
| Pulse Forward Current (Note2) | IFP | 1 | A |
| Junction Temperature | Tj | 125 | °C |
| Collector-Emitter Voltage | VCEO | 80 | V |
| Emitter-Collector Voltage | VECO | 7 | V |
| Collector Current | IC | 50 | mA |
| Collector Power Dissipation | PC | 150 | mW |
| ∆PC /°C | −1.5 | mW /°C | |
| Derating(Ta≥25°C) | |||
| Junction Temperature | Tj | 125 | °C |
| Operating Temperature Range | Topr | −55 to 110 | °C |
| Storage Temperature Range | Tstg | −55 to 125 | °C |
| Lead Soldering Temperature | Tsol | 260 (10s) | °C |
| Total Package Power Dissipation | PT | 200 | mW |
| ∆PT /°C | −2.0 | mW /°C | |
| Derating (Ta≥25°C) |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| ( | 备注 | ) | When | a | EN60747-5-2 | approved | 型号 | is | needed, |
|---|---|---|---|---|---|---|---|---|---|
| Guaranteed | performance | over | -55 to 110 | ˚C | |||||
| TOSHIBA 11-3A1 | |||||||||
| UL | Recognized | : | UL1577 , File | No. | E67349 | ||||
| Weight: 0.05 g (typ.) | |||||||||
| cUL | Recognized | : | CSA Component | Acceptance Service | |||||
| BSI | Approved | : | BS EN 60065: | 2002, | |||||
| : | BS EN | 60950-1: | 2006 | 1 4 | |||||
| Highest | permissible | over-voltage | : | 6000 | Vpk | ||||
| ( | Note | ) | When | a | EN60747-5-2 | approved | type | is | needed, 2 3 |
| please | designate | the “Option(V4)” | |||||||
| Construction | Mechanical | Rating | 1:ANODE 2:CATHODE | ||||||
| Creepage | Distance | 5.0 | mm (min) | 3:EMITTER | |||||
| Clearance | 5.0 | mm (min) | 4:COLLECTOR 1 2009-05-27 |
电气特性 Electrical Characteristics（TA = 25°C）
| CHARACTERISTIC | 符号 | 测试条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| Forward Voltage | VF IF | = 10 mA | 1.0 | 1.15 | 1.3 | V |
| Capacitance | CT V | = 0, f = 1 MHz | — | 30 | — | pF |
| Collector-Emitter Breakdown | Voltage V(BR) CEO IC | = 0.5 mA | 80 | — | — | V |
| Emitter-Collector Breakdown | Voltage V(BR) ECO IE | = 0.1 mA | 7 | — | — | V |
| Ambient Light Below | — | μA | ||||
| Collector Dark Current | (2) | (10) | ||||
| (100 ℓx) (Note | 4) | 2 | 50 | |||
| Ambient Light Below | — | (4) | (50) | μA | ||
| (100 ℓx) (Note | 4) | |||||
| CCE V | = 0, f = 1 MHz 3 | — | 10 | — | pF 2009-05-27 TLP285 | |
| IF | = 5 mA, VCE = 5 V | 50 | — | 600 |
应用领域 Applications
产品应用与封装尺寸
-appcircuit.jpg)
图纸取自该型号原厂规格书的应用电路与封装尺寸章节，点击图片可放大查看原始尺寸标注。
