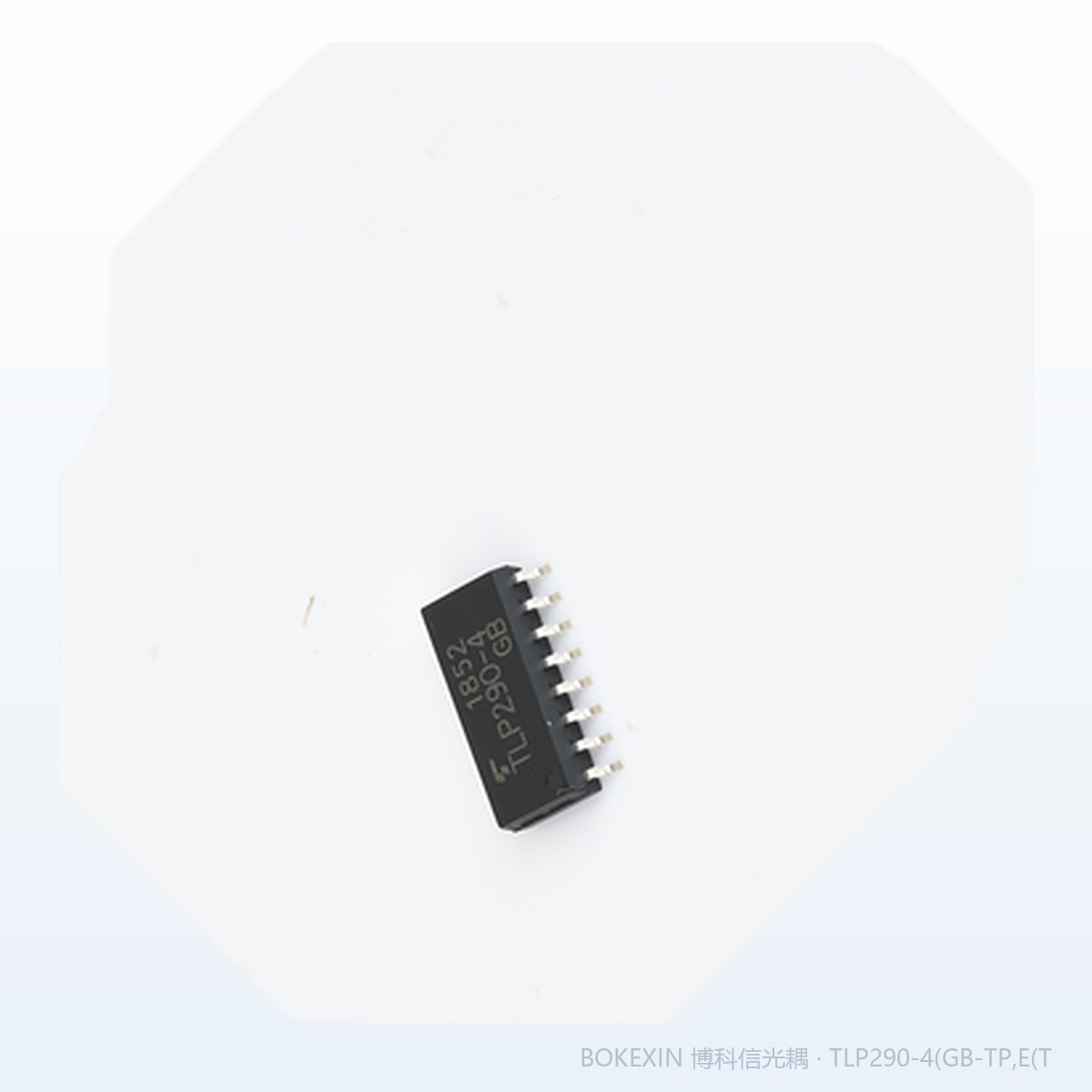

产品实拍图
本页为博科信现货实拍（器件丝印 见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 特性 | 符号 | 备注 | 额定值 | 单位 |
|---|---|---|---|---|
| TLP290-4 | ||||
| Creepage distances 5.0 | mm | |||
| LED R.M.S. forward current | I | ±50 | mA | |
| Input forward current derating (T ≥ | 50 ) ∆I /∆T | -0.67 | mA/ | |
| Input forward current (pulsed) | I | (Note 1) | ±1 | A |
| Input power dissipation | P | 70 | mW | |
| Input power dissipation derating (T ≥ | 50 ) ∆P /∆T | -0.93 | mW/ | |
| Junction temperature | T | 125 | | |
| Detector Collector-emitter voltage | V | 80 | V | |
| Emitter-collector voltage | V | 7 | ||
| Collector current | I | 50 | mA | |
| Collector power dissipation | P | 100 | mW | |
| Collector power dissipation (T ≥ | 25 ) ∆P /∆T | -1.0 | mW/ | |
| Junction temperature | T | 125 | | |
| Common Operating temperature | T | -55 to 110 | | |
| Storage temperature | T | -55 to 125 | ||
| Lead soldering temperature (10 | s) T | 260 | ||
| Total power dissipation (1 circuit) | P | 170 | mW | |
| Isolation voltage (AC, 60 s, | R.H. ≤ 60 %) BV | (Note 2) | 2500 | Vrms |
