Name: TOSHIBA TLP291(GR-TP,SE(T
Brand: TOSHIBA
Availability: InStock

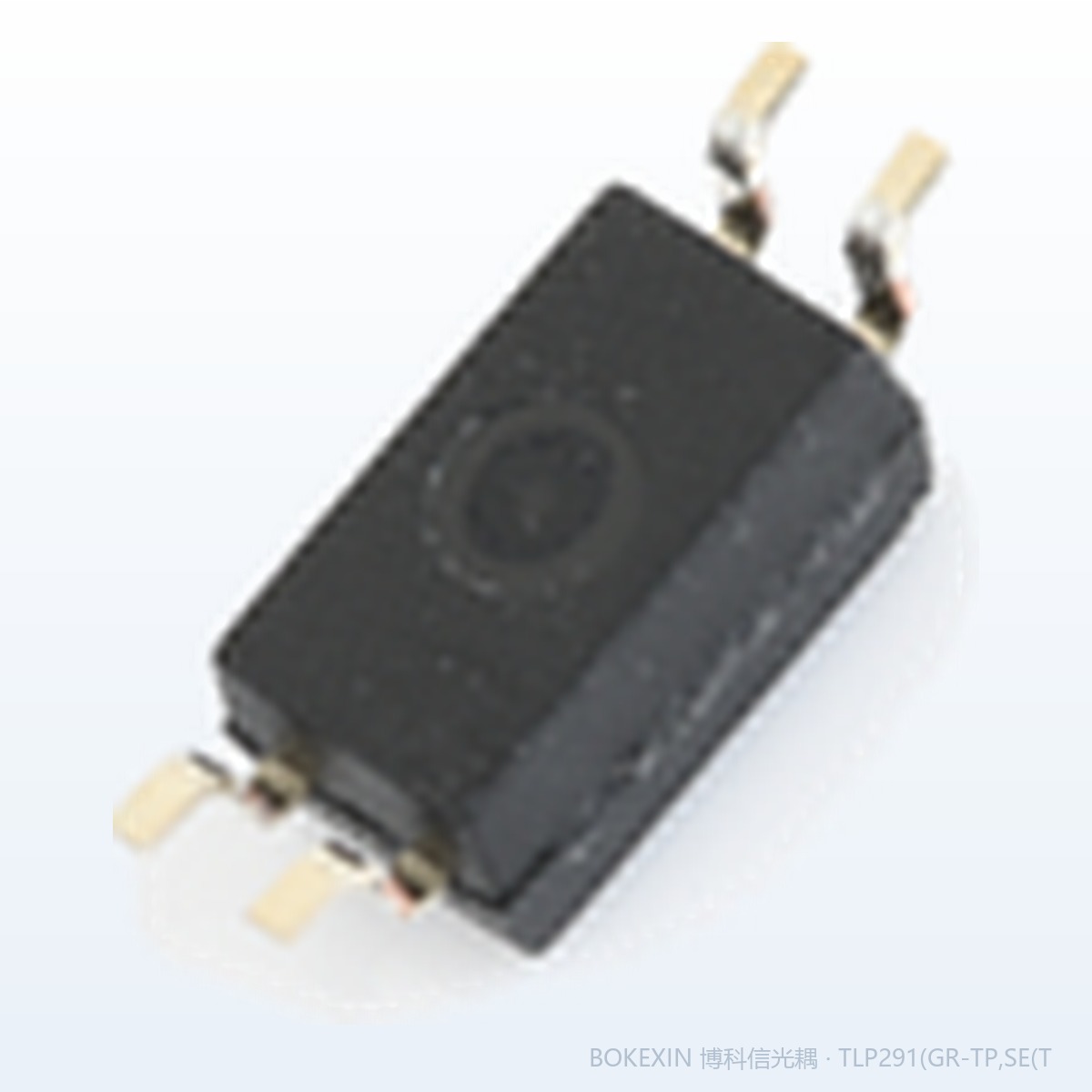

产品实拍图

本页为博科信现货实拍（器件丝印见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

关键参数速览

超过下表数值可能造成器件永久损坏，设计时请留余量。

CHARACTERISTIC	符号	备注	额定值	单位
Input forward current	IF		50	mA
Input forward current derating (Ta≥90°C)	∆IF /∆Ta		-1.5	mA /°C
DEL Input forward current (pulsed )	IFP	(Note 2)	1	A
Input power dissipation	PD		100	mW
Input power dissipation derating (Ta ≥	90°C) ∆PD/∆Ta		-3.0	mW/°C
Junction temperature	Tj		125	°C
Collector-emitter voltage	VCEO		80	V
Emitter-collector voltage	VECO		7	V
Collector current	IC		50	mA
Collector power dissipation	PC		150	mW
Collector power dissipation derating(Ta≥25°C)	∆PC /∆Ta		-1.5	mW /°C
Junction temperature	Tj		125	°C
Operating temperature range	Topr		-55 to 110	°C
Storage temperature range	Tstg		-55 to 125	°C
Lead soldering temperature	Tsol		260 (10s)	°C
Total package power dissipation	PT		200	mW
Total package power dissipation derating(Ta≥25°C)	∆PT /∆Ta		-2.0	mW /°C

数据来源：原厂规格书

最小	最大
	TLP291(SE
Current Transfer Ratio (CTR) Rank (	Unless otherwise specified, Ta = 25°C)

CHARACTERISTIC	符号	测试条件	最小	典型	最大	单位
Input forward voltage	VF IF	= 10 mA	1.1	1.25	1.4	V
Input capacitance	CT V	= 0 V, f = 1 MHz	-	30	-	pF
ROTCETED Collector-emitter breakdown	voltage V(BR) CEO IC	= 0.5 mA	80	-	-	V
Emitter-collector breakdown	voltage V(BR) ECO IE	= 0.1 mA	7	-	-	V
		VCE = 48 V	-	0.01	0.08	μA
		VCE = 48 V, Ta = 85°C	-	2	50	μA
Collector-emitter capacitance	CCE V	= 0 V, f = 1 MHz 3	-	10	- TLP291(SE	pF 2013-05-27
	IF	= 5 mA, VCE = 5 V	50	-	600

programmable controllers.TLP291(SE

规格书为原厂公开资料，点击在新窗口打开下载。

常备现货、免费送样、支持小批量试产。报出用量与封装要求，当天给报价与交期。
