关键参数速览
- 正向电压 VF
- 1.4
- 正向电流 IF
- 1.4
- 集电极-发射极电压 VCEO
- 80
- 工作温度 TA
- 50
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| Characteristic | 符号 | 备注 | 额定值 | 单位 |
|---|---|---|---|---|
| R.M.S. forward current | IF(RMS) | ±50 | mA | |
| Input forward current derating (Ta ≥ 90°C) | ΔIF /ΔTa | -1.5 | mA /°C | |
| Input forward current (pulsed) | IFP | (Note 2) | ±1 | A |
| Input power dissipation | PD | 100 | mW | |
| Input power dissipation derating (Ta ≥ | 90°C) ΔPD/ΔTa | -3.0 | mW/°C | |
| Junction temperature | Tj | 125 | °C | |
| Collector-emitter voltage | VCEO | 80 | V | |
| Emitter-collector voltage | VECO | 7 | V | |
| Collector current | IC | 50 | mA | |
| Collector power dissipation | PC | 150 | mW | |
| Collector power dissipation derating (Ta | ≥ 25°C) ΔPC /ΔTa | -1.5 | mW /°C | |
| Junction temperature | Tj | 125 | °C | |
| Operating temperature range | Topr | -55 to 110 | °C | |
| Storage temperature range | Tstg | -55 to 125 | °C | |
| Lead soldering temperature | Tsol | 260 (10 s) | °C | |
| Total package power dissipation | PT | 200 | mW | |
| Total package power dissipation derating (Ta | ≥ 25°C) ΔPT /ΔTa | -2.0 | mW /°C |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 最小 | 最大 |
|---|---|
| )Am( rotcelloC | TLP290(SE 10 mA 1 |
| Ta=25˚C | IF=16mA |
| IF=16mA | VCC=5V |
| VCC=5V )sμ( | RL=1.9kΩ )sμ( |
| gnihctiwS | gnihctiwS |
| Load resistance RL (kΩ) | Ambient temperature Ta (°C) |
电气特性 Electrical Characteristics（TA = 25°C）
| Characteristic | 符号 | 测试条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| Input forward voltage | VF IF | = ±10 mA | 1.1 | 1.25 | 1.4 | V |
| Input capacitance | CT V | = 0 V, f = 1 MHz | - | 60 | - | pF |
| Collector-emitter breakdown | voltage V(BR) CEO IC | = 0.5 mA | 80 | - | - | V |
| rotceteD Emitter-collector breakdown | voltage V(BR) ECO IE | = 0.1 mA | 7 | - | - | V |
| VCE = 48 V, | - | 0.01 | 0.08 | μA | ||
| VCE = 48 V, Ta = 85 °C | - | 2 | 50 | μA | ||
| Collector-emitter capacitance | CCE V | = 0 V, f = 1 MHz | - | 10 | - | pF |
| 50 | - | 600 TLP290(SE |
应用领域 Applications
产品应用与封装尺寸

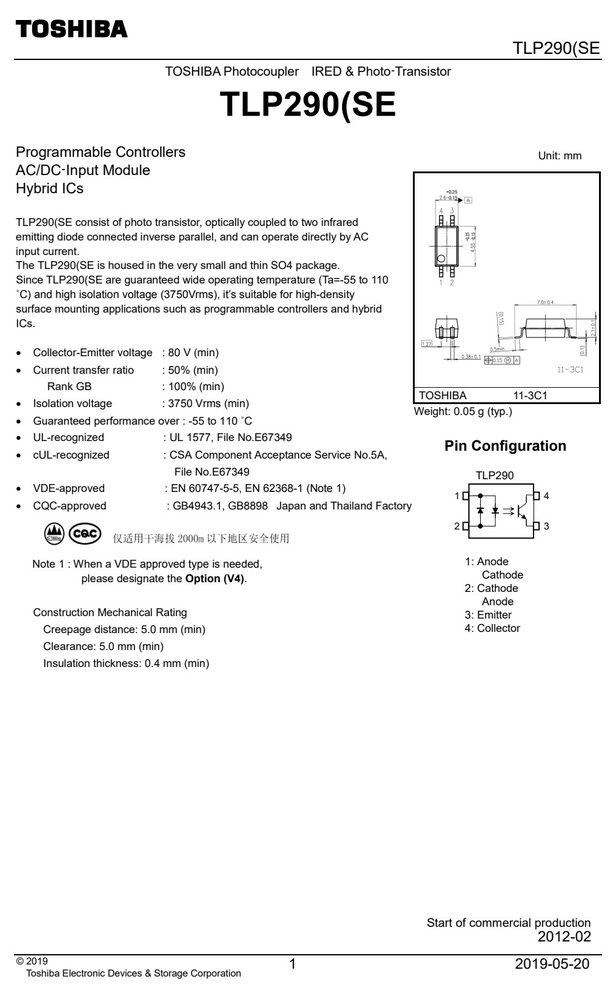

图纸取自该型号原厂规格书的应用电路与封装尺寸章节，点击图片可放大查看原始尺寸标注。
