Name: TOSHIBA TLP559(F)
Brand: TOSHIBA
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

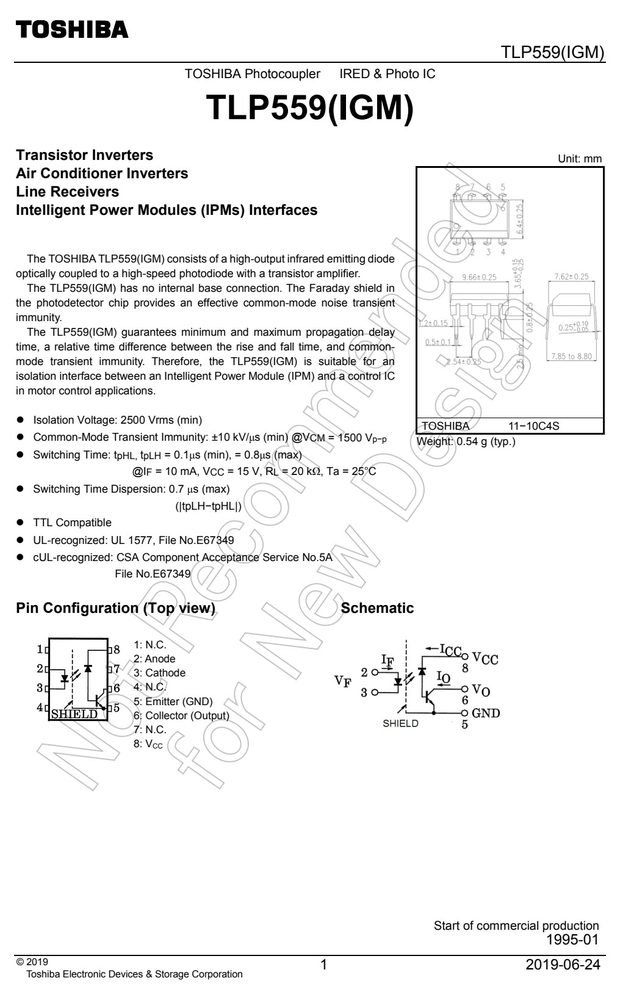

引脚定义与内部结构

数据来源：原厂规格书引脚图

超过下表数值可能造成器件永久损坏，设计时请留余量。

CHARACTERISTIC	符号	额定值	单位
Forward Current	(Note 1) IF	25	mA
Pulse Forward Current	(Note 2) IFP	50	mA
Peak Transient Forward Current	(Note 3) IFPT	1	A
Diode Power Dissipation	(Note 4) PD	45	mW
Output Current	IO	8	mA
Peak Output Current	IOP	16	mA
Output Voltage	VO	−0.5 to 20	V
Supply Voltage	VCC	−0.5 to 30	V
Output Power Dissipation	(Note 5) PO	100	mW
Operating Temperature Range	Topr	−55 to 100	°C
Storage Temperature Range	Tstg	−55 to 125	°C
Lead Solder Temperature(10 s)	(Note 6) Tsol	260	°C

数据来源：原厂规格书

CHARACTERISTIC	符号	额定值	单位
			TLP559(IGM)
(Note 1) Derate 0.8 mA above 70 °C.
(Note 2) 50 % duty cycle, 1 ms pulse width. Derate 1.6	mA/°C above 70 °C.
(Note 3) Pulse width PW ≤ 1μs, 300 pps.
(Note 4) Derate 0.9 mW/°C above 70°C.
(Note 5) Derate 2 mW/°C above 70°C.
(Note 6) Soldering portion of lead : up to 2mm from the	body of the device.
(Note 7) Device considers a two-terminal device : pins 1,	2, 3 and 4 shorted together	and
pins 5, 6, 7 and 8 shorted together.

CHARACTERISTIC	符号	测试条件	最小	典型	最大	单位
Forward Voltage	VF IF	= 16 mA	―	1.65	1.85	V
	∆VF /∆Ta IF	= 16 mA	―	−2	―	mV /°C
Capacitance between Terminal	CT V	= 0 V, f = 1 MHz	―	45	―	pF
	IOH (1) IF	= 0 mA, VCC = VO = 5.5 V	―	3	500	nA
	IOH (2)		―	―	5
	IOH		―	―	50
High Level Supply Voltage	ICCH IF	= 0 mA, VCC = 30 V	―	0.01	1	μA
Supply Voltage	VCC	ICC = 0.01 mA	30	―	―	V
Output Voltage	VO IO	= 0.5 mA	20	―	―	V
			25	35	75 TLP559(IGM)
