引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 1 | Anode | |
| 2 | N.C. | |
| 3 | Cathode | |
| 4 | GND | |
| 5 | V (Output) | |
| 6 | Internal Circuit (Note) | |
| 7 | Principle of Operation |
数据来源：原厂规格书引脚图
产品特点 Features
- (1) Buffer logic type (totem pole output)
- (2) Output peak current: ±0.6 A (max)
- (3) Operating temperature: -40 to 110
- (4) Supply current: 2.0 mA (max)
- (5) Supply voltage: 10 to 30 V
- (6) Threshold input current: 5 mA (max)
- (7) Propagation delay time: t /t = 500 ns (max) pHL pLH
- (8) Common-mode transient immunity: ±20 kV/µs (min)
- TLP5701
- 4. Packaging (Note)
- TLP5701 TLP5701(LF4)
- 11-4N1A
- 11-4N101A
- 7. Principle of Operation
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 特性 | 符号 | 备注 | 额定值 | 单位 |
|---|---|---|---|---|
| R.H. | ≤ 60 % | TLP5701 | ||
| reliability test report and estimated failure | rate, etc). |

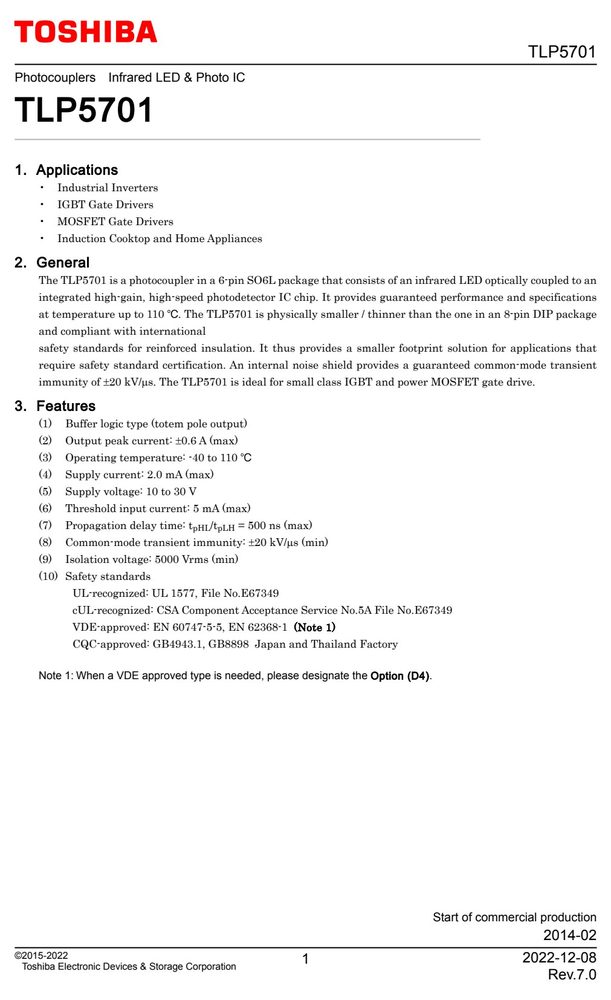

应用领域 Applications

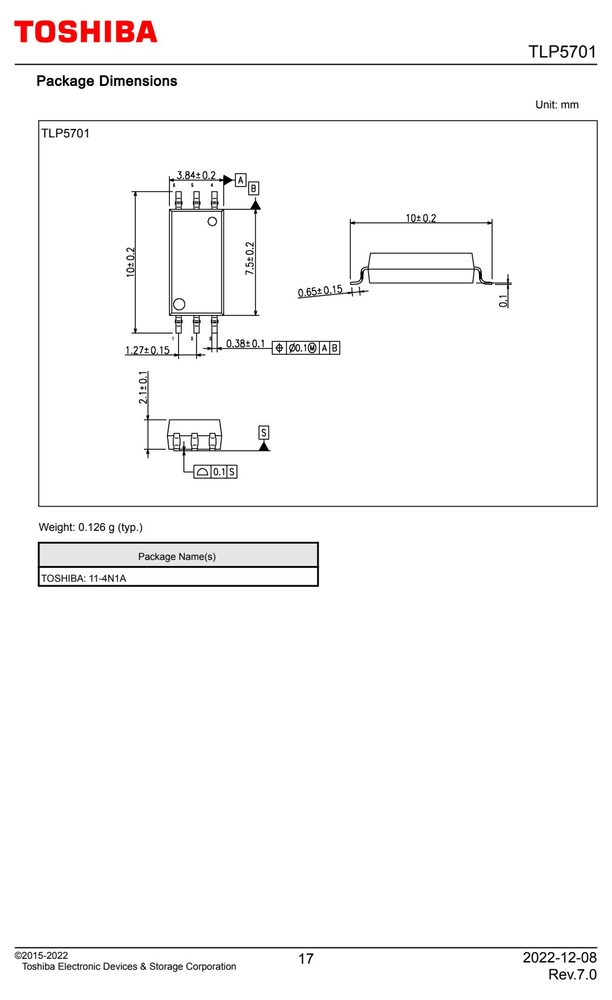

产品应用与封装尺寸
图纸取自该型号原厂规格书的应用电路与封装尺寸章节，点击图片可放大查看原始尺寸标注。
