Name: AVAGO ACPL-W346-500E
Brand: AVAGO
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

产品应用与封装尺寸

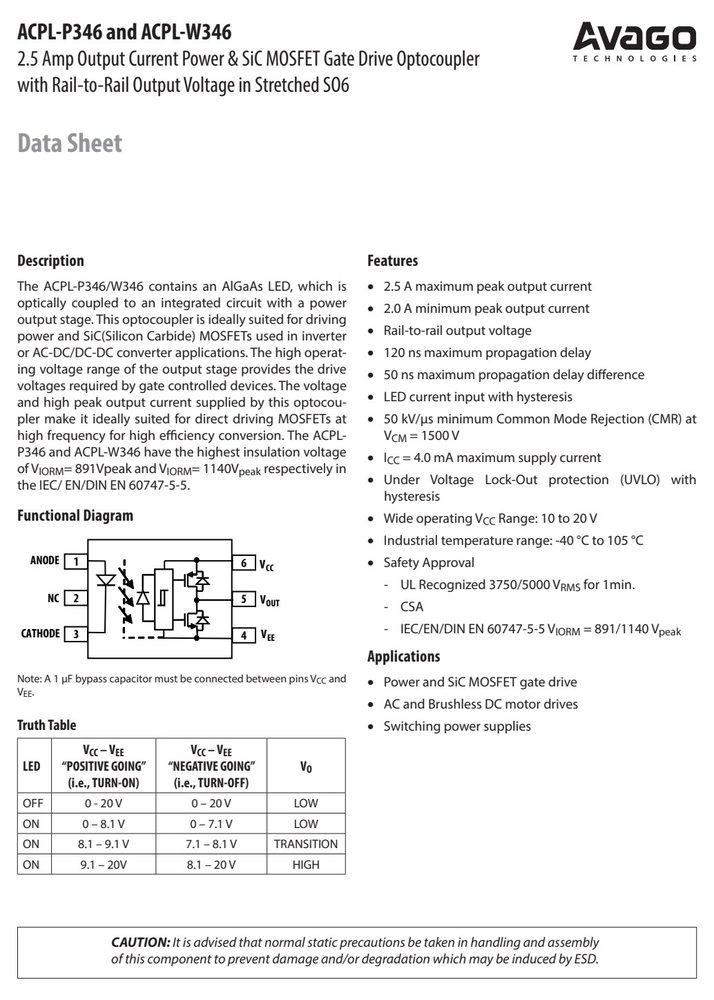

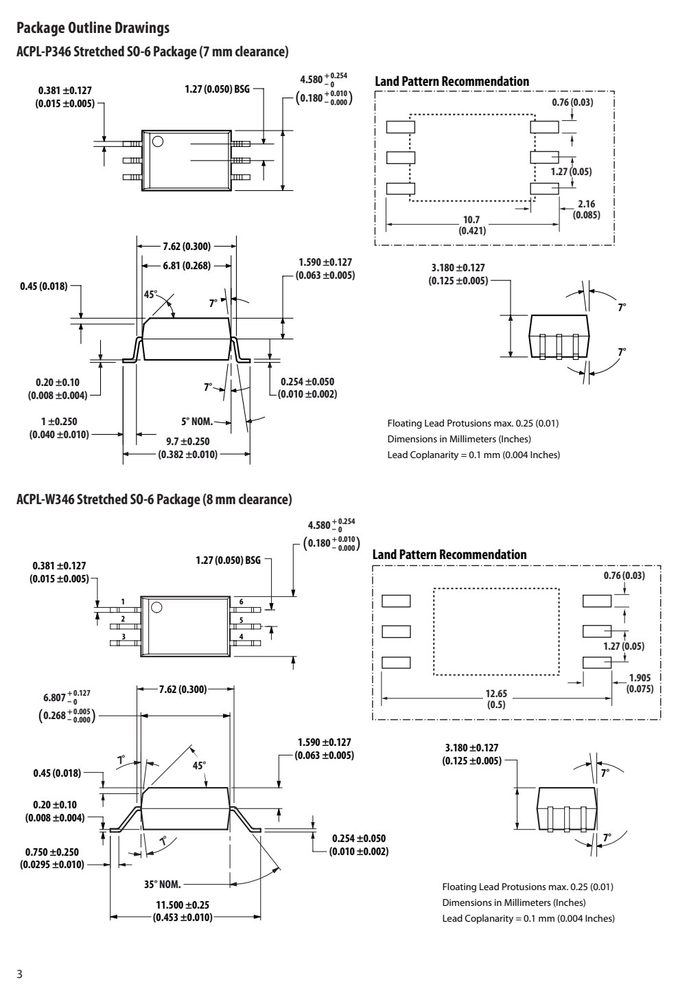

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

关键参数速览

正向电压 VF: 19
电源电压 VCC: 7, 8
工作温度 TA: 105

产品特点 Features

2.5 A maximum peak output current
2.0 A minimum peak output current
Rail-to-rail output voltage

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位	备注
Storage Temperature	T	-55	125	°C
Operating Temperature	T	-40	105	°C
Output IC Junction Temperature	T		125	°C
Average Input Current	I		25	mA	1
Peak Transient Input Current (<1 µs	pulse width, 300pps) I		1	A
“High” Peak Output Current	I		2.5	A	2
“Low” Peak Output Current	I		2.5	A	2
Total Output Supply Voltage	(V - V )	0	25	V
Output Voltage	V	-0.5	V	V
eOutput IC Power Dissipation	P		500	mW	3
Total Power Dissipation	P		550	mW	4

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

说明	符号	包装	060	包装2	0602	单位
UL Recognized under	UL 1577, component recognition program	up to	V =	3750 V		(ACPL-
		ACPL-P346		ACPL-W346
for rated mains voltage ≤ 150 Vrms		I –	IV	I –	IV
for rated mains voltage ≤ 300 Vrms		I –	IV	I –	IV
for rated mains voltage ≤ 450 Vrms		I –	III	I –	IV
for rated mains voltage ≤ 600 Vrms		I –	III	I –	IV
for rated mains voltage ≤ 1000 Vrms				I –	III
Pollution Degree (DIN VDE 0110/39)		2		2
Input to Output Test Voltage, Method b*	V	1671		2137		V
Input to Output Test Voltage, Method a*	V	1426		1824		V
Highest Allowable Overvoltage*	V	6000		8000		V
Case Temperature	TS	175		175		°C
Input Current	I	230		230		mA
Output Power	P	600		600		mW
Insulation Resistance at TS, V IO = 500 V	RS	>109		>109		W

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	最小	典型	最大	单位	测试条件	图号	备注
	A		F(ON)		F(OFF)	EE	CC
High Level Peak Output	Current I OH	-2.0	-3.4		A	V – V = 10 V CC O	3, 4	5
Low Level Peak Output	Current I OL	2.0	4.4		A	V - V = 10 V O EE	6, 7	5
High Output Transistor	RDS(ON) R	0.3	1.7	3.5	Ω	I = -2.0 A	8	6
Low Output Transistor	RDS(ON) R	0.3	0.7	2.0	Ω	I = 2.0 A	9	6
High Level Output	Voltage V	Vcc-0.3	Vcc – 0.2		V	I = -100 mA, I = 9 mA	2, 4	7, 8
High Level Output	Voltage V		Vcc		V	I = 0 mA, I = 9 mA	1
Low Level Output	Voltage V		0.1	0.25	V	I = 100 mA	5, 7
High Level Supply	Current I		2.6	4.0	mA	I = 9 mA	10,
Low Level Supply	Current I		2.6	4.0	mA	V = 0V
Threshold Input Current	I	0.5	1.5	4.0	mA	V > 5 V	12,
Low to High							13
Threshold Input Voltage	V	0.8			V
Input Forward Voltage	V	1.2	1.55	1.95	V	I = 9 mA	19
Temperature Coefficient	ΔV /ΔT		-1.7		mV/°C
Input Capacitance	C		70		pF	f = 1 MHz, V = 0 V
UVLO Threshold	V UVLO+	8.1	8.6	9.1	V	V > 5 V, I = 9 mA O F
	V	7.1	7.6	8.1
UVLO Hysteresis	UVLO	0.5	1.0		V

订货信息与供货形式

型号	型号2	RoHS	Compliant	封装	Surface	Mount	Tape&	包装	60747-5-5	数量
ACPL-P346	is	UL Recognized	with	3750 V for 1	minute per	UL1577.
Part	number	RoHS	Compliant	Package	Surface	Mount	Tape&	Reel	60747-5-5	Quantity
column	to form	an order	entry.
DIN	EN	60747-5-5 Safety	Approval	in RoHS	compliant.

应用领域 Applications

LED current input with hysteresisV = 1500 VPower and SiC MOSFET gate driveAC and Brushless DC motor drivesSelecting the Gate Resistor (Rg)W346.V CC−VRg ≥ EE − RDSON(MIN)OLPEAK10 − 0V= − 0.3Ω
