Name: EVERLIGHT EL0631(TA)
Brand: EVERLIGHT
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

关键参数速览

正向电压 VF: 1.8
正向电流 IF: 20
电源电压 VCC: 0.6
工作温度 TA: 85°C unless

产品特点 Features

Compliance Halogen Free .
(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
High speed 10Mbit/s
10kV/μs min. common mode transient immunity (EL0631)
Guaranteed performance from -40 to 85°C
Wide operating temperature range of -40°C to 100°C
Logic gate output

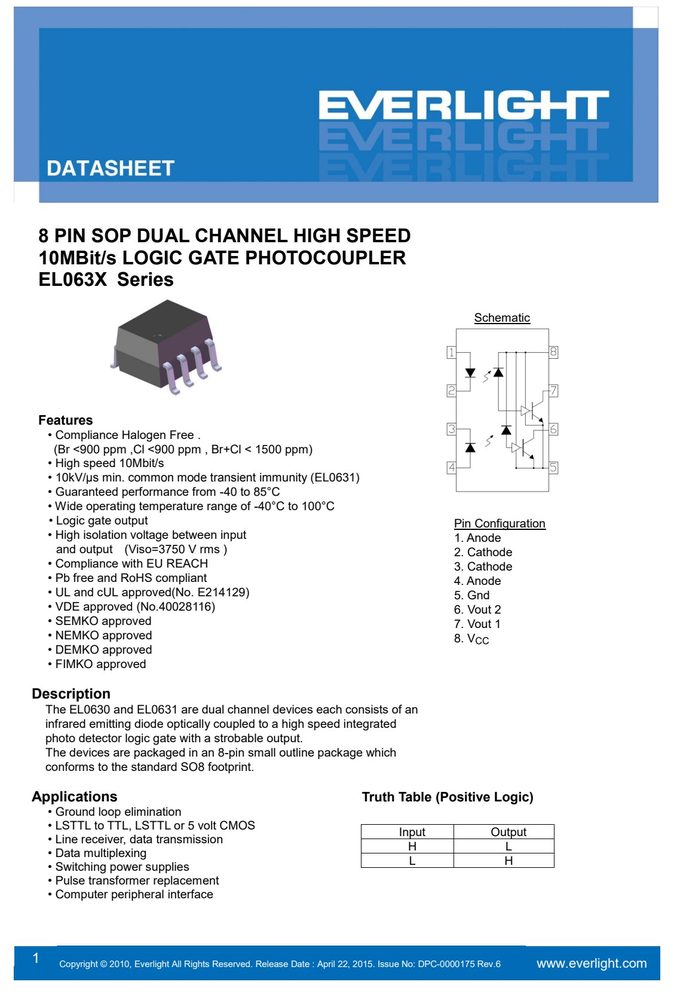

DATASHEET
8 PIN SOP DUAL CHANNEL HIGH SPEED
10MBit/s LOGIC GATE PHOTOCOUPLER
EL063X Series

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	额定值	单位
DC/ Average Forward current	I	20	mA
Power dissipation	P	45	mW
	P	60	mW
Output current	I	50	mA
Output voltage	V	7.0	V
Supply voltage (max 1 minute)	V	7.0	V
Output Power Dissipation	P	80	mW

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	额定值	单位
8 PIN SOP DUAL CHANNEL HIGH	SPEED
10MBit/s LOGIC GATE PHOTOCOUPLER
EL063X Series
	T	-40 ~ +100	°C
	T	-55 ~ +125	°C
Soldering temperature *2	T	260	°C

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	最小	典型	最大	单位	条件
Forward voltage	V	-	1.4	1.8	V I	=10mA
coefficient of forward	V /T	-	-1.8	-	mV/°C I	=10mA
Input capacitance	C	-	60	-	pF	V =0, f=1MHz
	I	-	13	18	mA	I =0mA, V =5.5V
current	CCH					F CC
	I	-	15	21	mA	I =10mA, V =5.5V
current	CCL					F CC
Transfer	Characteristics	(Ta=-40 to	85°C unless	specified	otherwise)
HIGH Level Output						V =5.5V, V =5.5V,
	I	-	-	100	µA	CC O
Current	OH					I =250μA,
LOW Level Output						V =5.5V, I =5mA,
	V	-	-	0.6	V	CC F
Current	OL					I =13mA
Input Threshold						V =5.5V, V =0.6V,
	I	-	-	5	mA	CC O
Current	FT					I =13mA
Switching Characteristics	(T	=-40 to	85°C, V	=5V, I	=7.5mA unless	specified otherwise)
		a	CC	F
time to output High						C =15pF, R =350Ω,
	t	-	-	100	ns	L L
level* 4	PHL					T =25°C
time to output Low						C =15pF, R =350Ω,
	t	-	-	100	ns	L L
level* 5	PLH					T =25°C
Pulse width distortion	PHL	-	-	35	ns	C =15pF, R =350Ω
	t	-	40	-	ns	C =15pF, R =350Ω
(Fig.11)	r					L L
	t	-	10	-	ns	C =15pF, R =350Ω
(Fig.11)	f					L L
Common					I	=0mA ,V =2.0V,
Mode EL0630		5000				R =350Ω, T =25°C
Transient						lV l =1KV(Fig.12 )
	lCM l		-	-	V/µs	CM
Immunity	H				I	= 0mA ,V =2.0V,
at Logic EL0631		10000				R =350Ω, T =25°C
High*						lV l=1KV(Fig.12 )
Common					I	=7.5mA,V =0.8V,
Mode EL0630		5000				R =350Ω, T =25°C
Transient						lV l =1KV(Fig.12 )
	lCM l		-	-	V/µs
Immunity	L				I	=7.5mA,V =0.8V,
at Logic EL0631		10000				R =350Ω, T =25°C
Low* 9						lV l =1KV(Fig.12 )

订货信息与供货形式

0630	denotes	器件	型号
EL063X	Series
Device	Marking
Option	TA	Option	TB

应用领域 Applications

Ground loop eliminationLSTTL to TTL, LSTTL or 5 volt CMOSInput OutputLine receiver, data transmissionData multiplexingSwitching power suppliesPulse transformer replacementComputer peripheral interfaceDATASHEET8 PIN SOP DUAL CHANNEL HIGH SPEED10MBit/s LOGIC GATE PHOTOCOUPLEREL063X Series

资料下载

📄 EL0631(TA) 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。

获取报价 / 申请样品

常备现货、免费送样、支持小批量试产。报出用量与封装要求，当天给报价与交期。

💬 咨询 / 询价查看完整产品目录

EL0631(TA) 8-pin small
