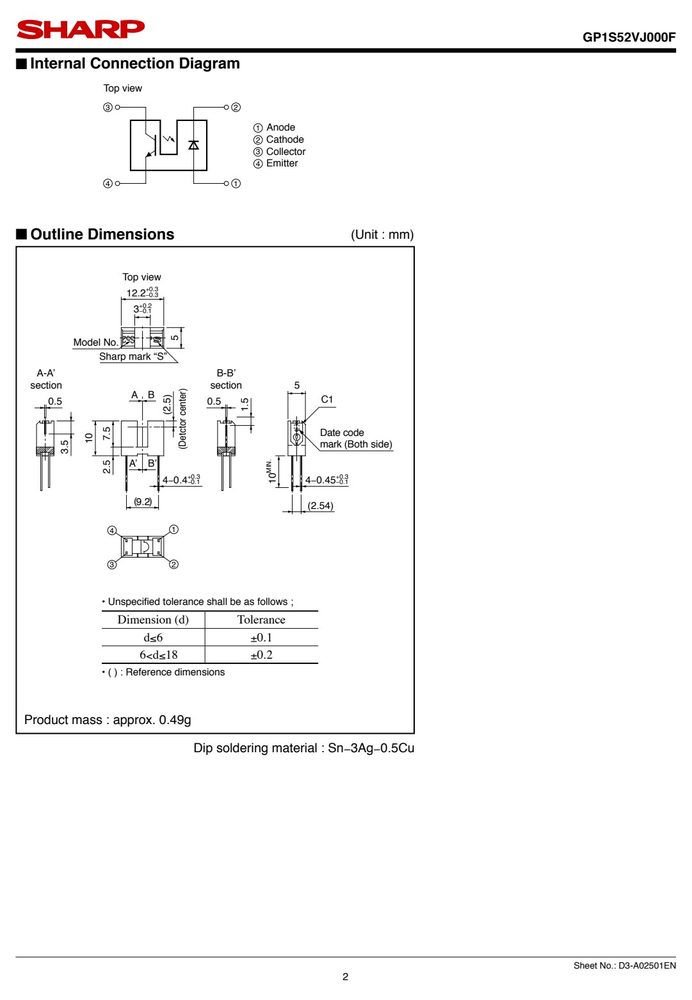

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.4
- 正向电流 IF
- 50
- 集电极-发射极电压 VCEO
- 0.4
- 工作温度 TA
- −25 to +85

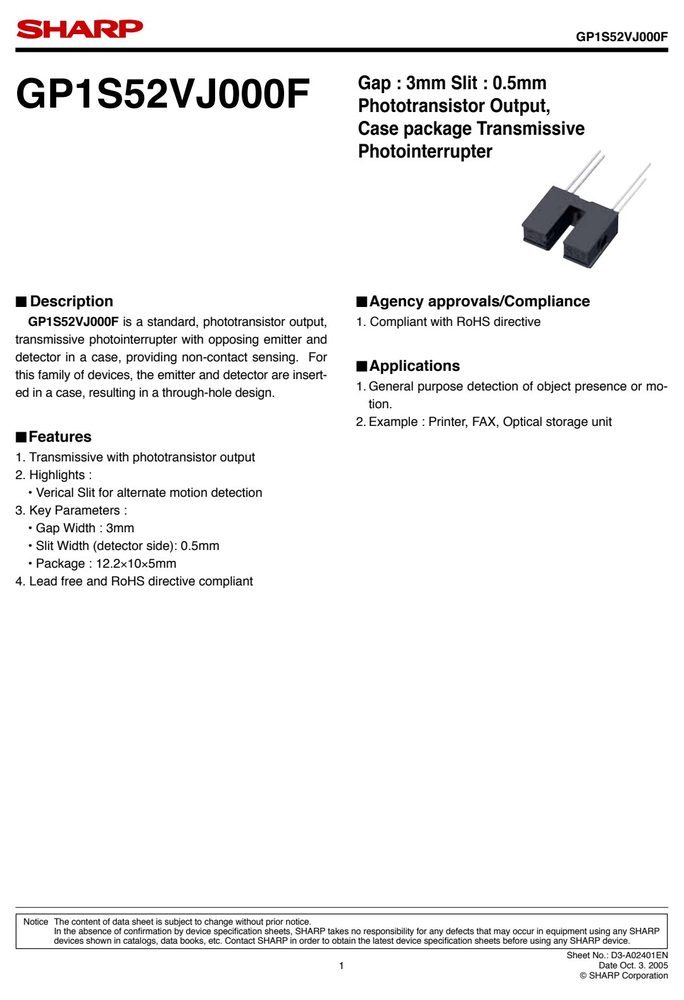

产品特点 Features
- 1. Transmissive with phototransistor output
- 2. Highlights :
- Verical Slit for alternate motion detection
- 3. Key Parameters :
- Gap Width : 3mm
- Slit Width (detector side): 0.5mm
- Package : 12.2×10×5mm
- 4. Lead free and RoHS directive compliant
- Notice The content of data sheet is subject to change without prior notice.
- Sheet No.: D3-A02401EN
- 1 Date Oct. 3. 2005
- GP1S52VJ000F
- Internal Connection Diagram
- Top view
- 1 Anode
- 2 Cathode
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| (T =25˚C) | |||
| ∗1 Forward current | I | 50 | mA |
| ∗1, 2Peak forward current | I | 1 | A |
| Power dissipation | P | 75 | mW |
| Collector-emitter voltage | V | 35 | V |
| Emitter-collector voltage | V | 6 | V |
| Collector current | I | 20 | mA |
| ∗1 Collector power | dissipation P | 75 | mW |
| Operating temperature | T | −25 to +85 | ˚C |
| Storage temperature | T | −40 to +100 | ˚C |
| ∗3Soldering temperature | T | 260 | ˚C |
| ∗1 Refer to Fig. 1, 2, 3 | |||
| ∗2 Pulse width ≤ 100μs, Duty ratio=0.01 | |||
| ∗3 For 5s or less |
数据来源：原厂规格书
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| (T =25˚C) | ||||||
| Forward voltage | V | I =20mA | − | 1.25 | 1.4 | V |
| Input Peak forward voltage | V | I =0.5A | 3 | 4 | V | |
| Output Collector dark current | I | V =20V | − | 1 | 100 | nA |
| Collector current | I | V =5V, I =20mA | 0.5 | − | 5 | mA |
| Collector-emitter saturation | voltage V | I =40mA, I =0.5mA | − | − | 0.4 | V |
| Rise | time t | − | 3 | 15 | ||
| teristics Response time | V | =2V, I =2mA, R =100Ω | μs | |||
| Fall | time t | − | 4 | 20 | ||
| Sheet No.: | D3-A02501EN |
