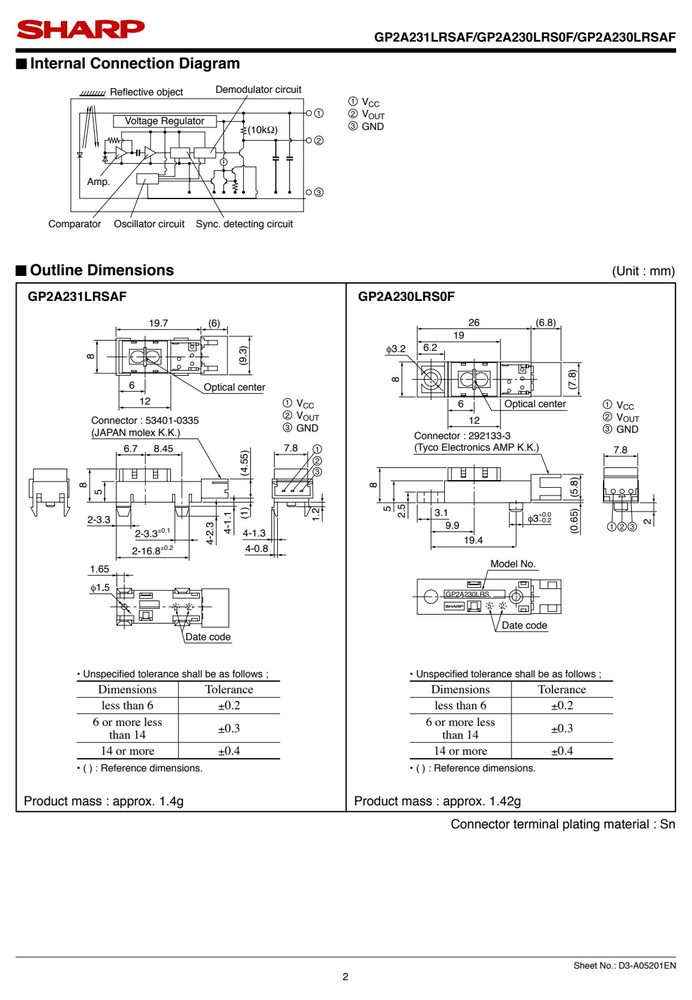

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 电源电压 VCC
- 5.25
- 工作温度 TA
- −10 to +70

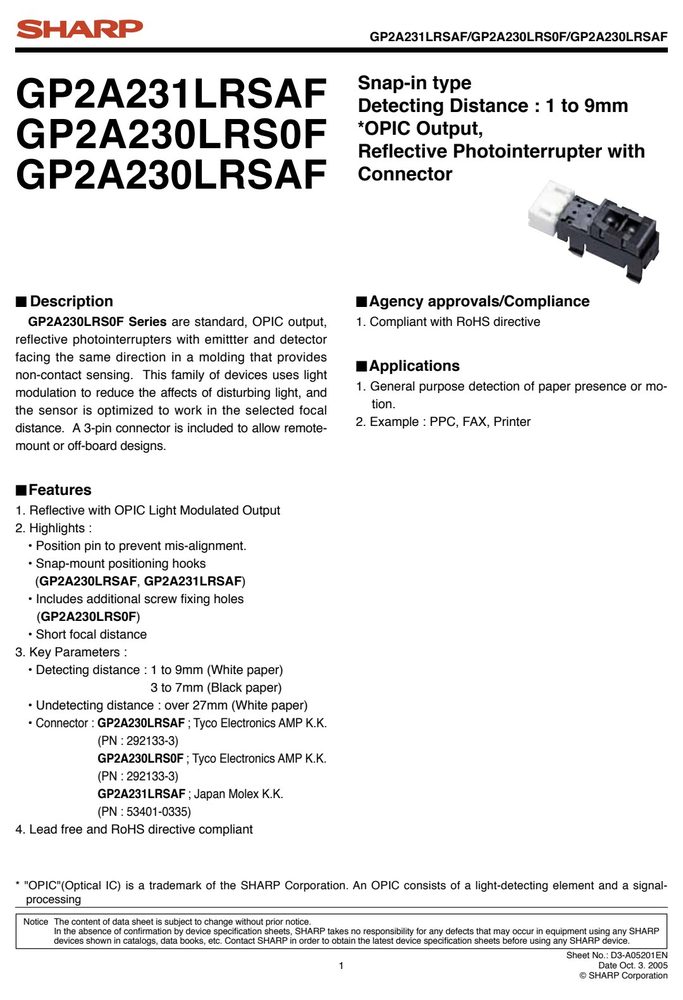

产品特点 Features
- 1. Refl ective with OPIC Light Modulated Output
- 2. Highlights :
- Snap-mount positioning hooks
- (GP2A230LRSAF, GP2A231LRSAF)
- Includes additional screw fi xing holes
- (GP2A230LRS0F)
- Short focal distance
- 3. Key Parameters :
- Detecting distance : 1 to 9mm (White paper)
- 3 to 7mm (Black paper)
- Undetecting distance : over 27mm (White paper)
- Connector : GP2A230LRSAF ; Tyco Electronics AMP K.K.
- (PN : 292133-3)
- GP2A230LRS0F ; Tyco Electronics AMP K.K.
- GP2A231LRSAF ; Japan Molex K.K.
- (PN : 53401-0335)
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| (T =25˚C ) | |||
| Supply voltage | V | −0.5 to +7 | V |
| Output voltage | V | 7 | V |
| ∗1 Sink current refer to Fig.5. |
数据来源：原厂规格书
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | Condhitions | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| (T =25˚C) | ||||||
| Supply voltage | V | − | 4.75 | − | 5.25 | V |
| Current dissipation (I) | I | Smoothing value V =5V, R | =∞ − | − | 20 | mA |
| Low level output voltage | V V | =5V, I =16mA, at detecting | time − | − | 0.4 | V |
| High level output voltage | V V | =5V, R =1kΩ, at non detecting | time 4.5 | − | − | V |
| KODAK Gray Cards, V =5V | − | − | 1 | |||
| Black paper, V =5V | − | − | 3 | |||
| KODAK Gray Cards, V =5V | 9 | − | − | |||
| Black paper, V =5V | 7 | − | − | |||
| t | − | − | 1 | ms | ||
| t | − | − | 1 | ms | ||
| Ev1 | 3 000 | − | − | lx | ||
| Ev2 | 1 500 | − | − | lx | ||
| : Standard | refl ective object | (provided by SHARP | Corporation) | |||
| PPC | paper : Standard | refl ective object | (provided by SHARP | Corporation) | ||
| Sheet No.: | D3-A05201EN | |||||
| GP2A231LRSAF/GP2A230LRS0F/GP2A230LRSAF |
