产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.4
- 正向电流 IF
- 50
- 集电极-发射极电压 VCEO
- 35
- 工作温度 TA
- −25 to +85

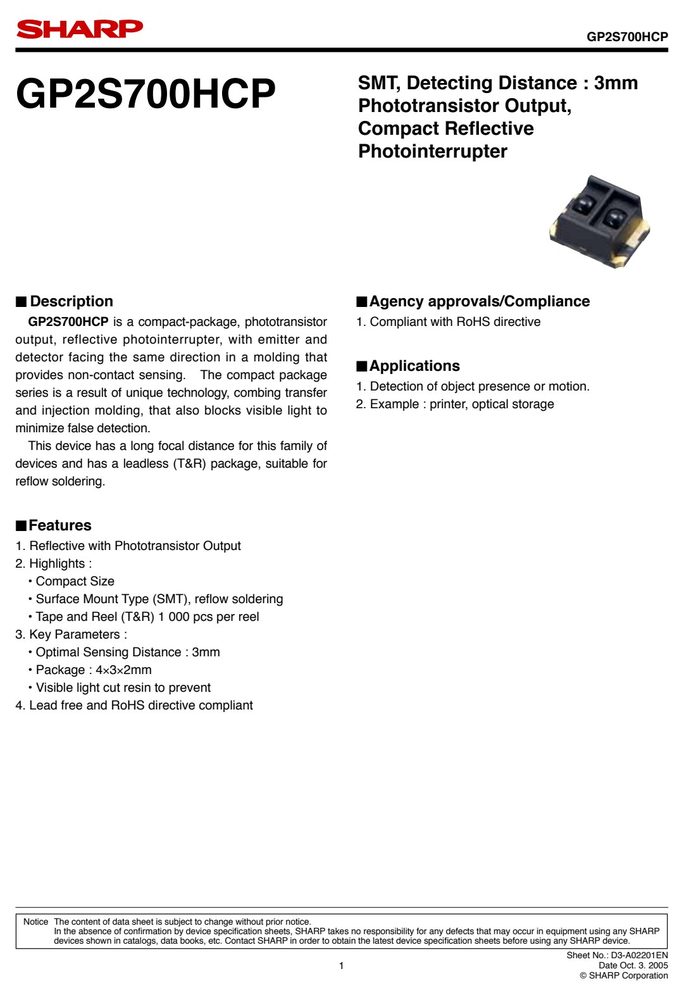

产品特点 Features
- 1. Refl ective with Phototransistor Output
- 2. Highlights :
- Compact Size
- Surface Mount Type (SMT), refl ow soldering
- Tape and Reel (T&R) 1 000 pcs per reel
- 3. Key Parameters :
- Optimal Sensing Distance : 3mm
- Package : 4×3×2mm
- 4. Lead free and RoHS directive compliant
- Notice The content of data sheet is subject to change without prior notice.
- Sheet No.: D3-A02201EN
- 1 Date Oct. 3. 2005
- GP2S700HCP

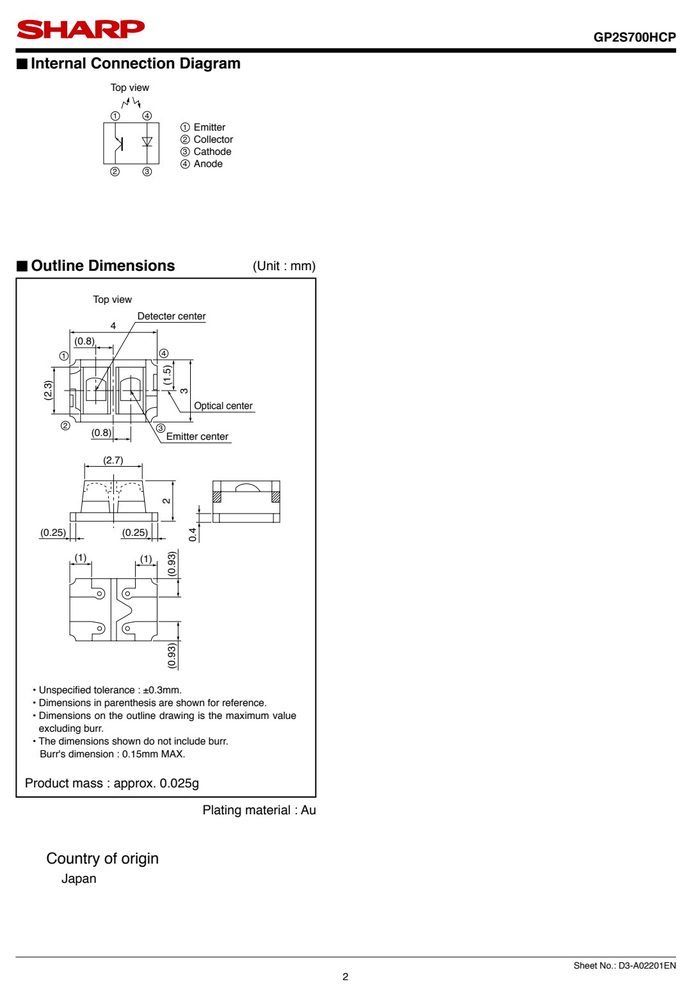

- Internal Connection Diagram
- Top view
- 1 Emitter
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| (T =25˚C) | |||
| Forward current | I | 50 | mA |
| Power dissipation | P | 75 | mW |
| Collector-emitter voltage | V | 35 | V |
| Emitter-collector voltage | V | 6 | V |
| Collector current | I | 20 | mA |
| Collector power dissipation | P | 75 | mW |
| Total power dissipation | P | 100 | mW |
| Operating temperature | T | −25 to +85 | ˚C |
| Storage temperature | T | −40 to +100 | ˚C |
| ∗1Soldering temperature | T | 260 | ˚C |
| ∗1 For 5s or less |
数据来源：原厂规格书
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| (T =25˚C) | ||||||
| Forward voltage | V | I =20mA | − | 1.2 | 1.4 | V |
| Output Collector dark current | I | V =20V | − | 1 | 100 | nA |
| ∗2 Collector current | I | I =4mA, V =2V | 60 | − | 410 | μA |
| ∗3 Leak current | I | I =4mA, V =2V | − | − | 700 | nA |
| Rise | time t | V =2V, I =100μA, | − | 20 | 100 | |
| teristics Response time | μs | |||||
| Fall | time t | R =1kΩ, d=4mm | − | 20 | 100 |
