产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。

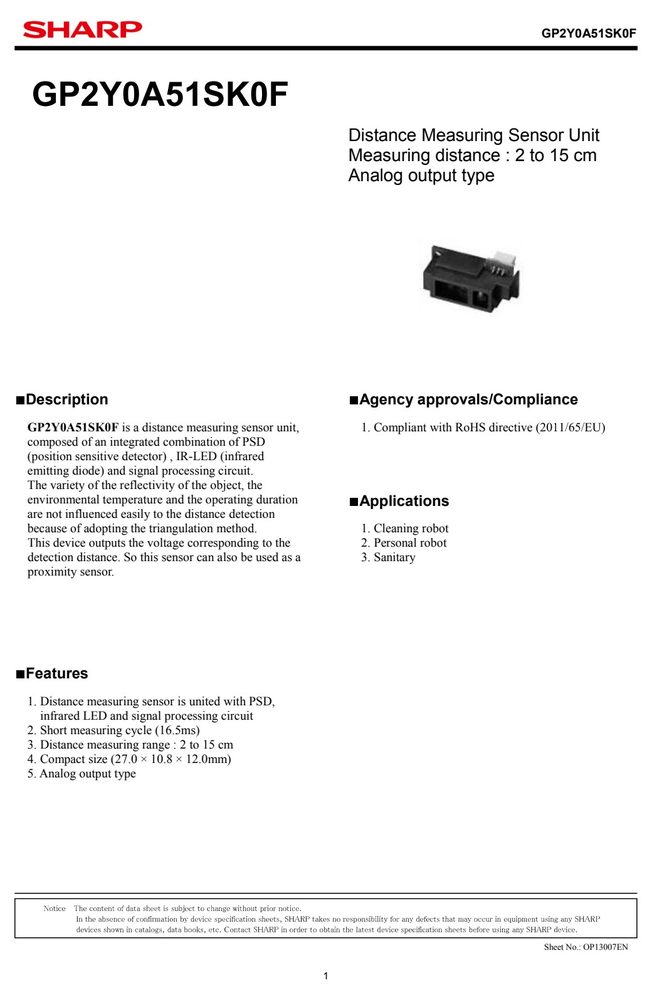

产品特点 Features
- 1. Distance measuring sensor is united with PSD, infrared LED and signal processing circuit
- 2. Short measuring cycle (16.5ms)
- 3. Distance measuring range : 2 to 15 cm
- 4. Compact size (27.0 × 10.8 × 12.0mm)
- 5. Analog output type
- Sheet No.: OP13007EN
- GP2Y0A51SK0F
- Schematic
- GND Vcc
- Signal
- Voltage regulator processing circuit
- Oscillation circuit
- LED drive circuit Output circuit Vo
- Measuring distance IC
- Outline
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 | Remark |
|---|---|---|---|---|
| (Ta=25°C) | ||||
| Supply voltage | Vcc | -0.3 to +7 | V | - |
| Output terminal voltage | Vo | -0.3 to Vcc+0.3 | V | - |
| Operating temperature | Topr | -10 to +60 | °C | - |
| Storage temperature | Tstg | -40 to +70 | °C | - |
| Operating supply | voltage | |||
| Vcc | 4.5 to 5.5 | V | - |
数据来源：原厂规格书
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| (Ta=25°C, | Vcc=5V) | |||||
| Measuring distance | range | (Note 1) | 2 | - | 15 | cm |
| Output terminal voltage | Vo | L=15cm (Note 1) | 0.25 | 0.4 | 0.55 | V |
| Output voltage difference | cm) (Note | 1.35 1) | 1.65 | 1.95 | V | |
| Average supply current | Icc | L=15cm (Note 1) Second | - nth | 12 | 22 | mA |
| measurement | measurement | |||||
| Vo (Output) | Unstable output | First output | Second output | |||
| Sheet No.: | OP13007EN |
