Name: AVAGO HCPL-060L-500E
Brand: AVAGO
Availability: InStock

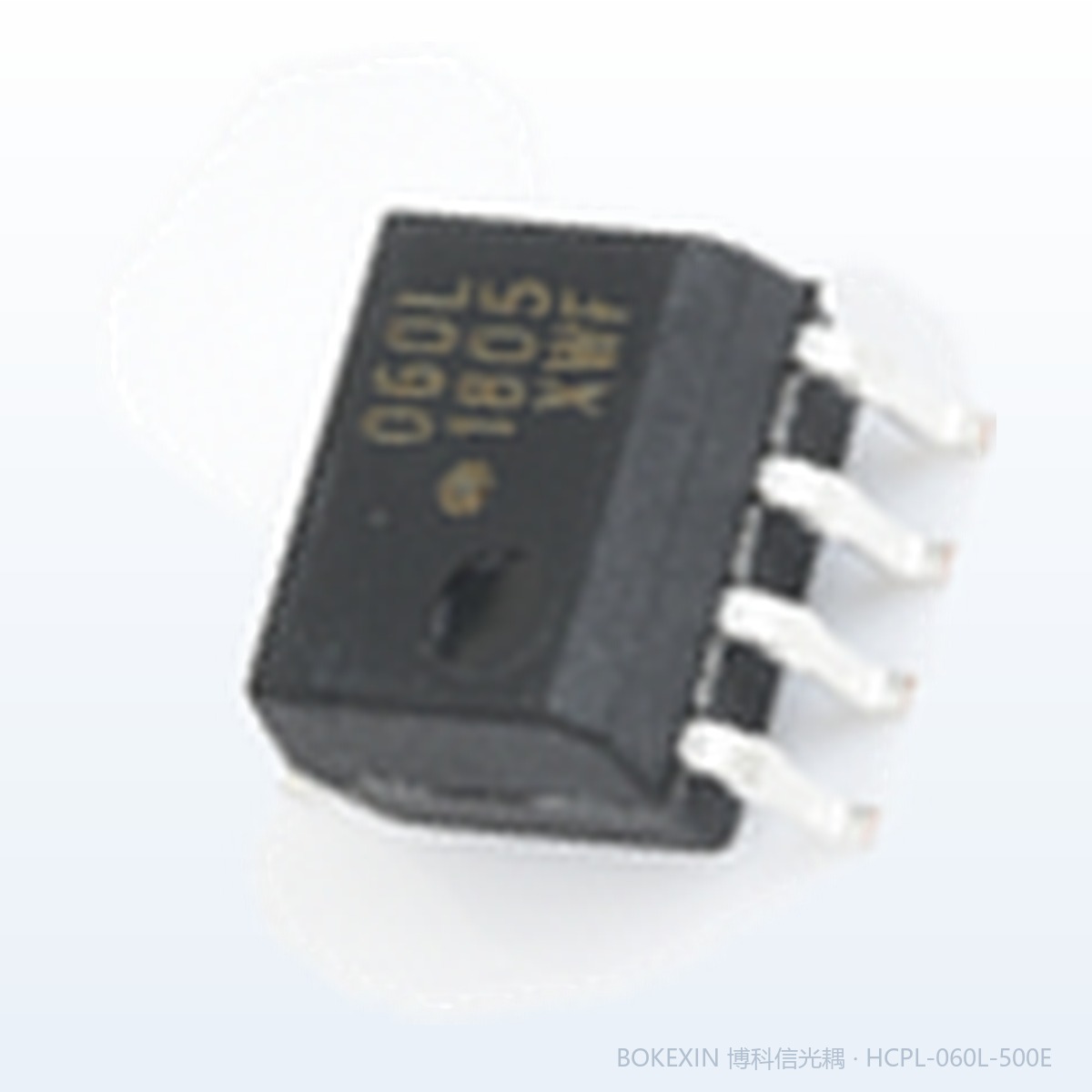

产品实拍图

本页为博科信现货实拍（器件丝印见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

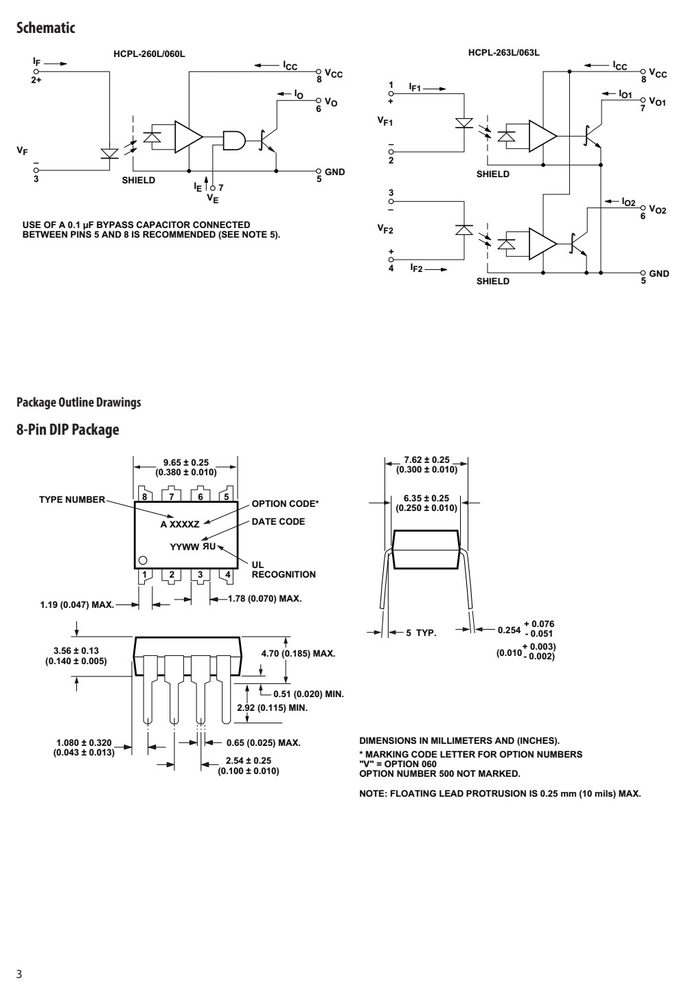

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

引脚定义与内部结构

引脚	符号	名称
3	SHIELD
5	GND
6	VO
7	VE
8	VCC

数据来源：原厂规格书引脚图

关键参数速览

正向电流 IF: 15.0
电源电压 VCC: 7
工作温度 TA: 85

产品特点 Features

15 kV/µs at 3.3V.
These optocouplers are suitable for high speed logic
3.3V/5V Dual Supply Voltages
Low power consumption
15 kV/µs minimum Common Mode Rejection (CMR) at
V = 1000 V
High speed: 15 MBd typical
LVTTL/LVCMOS compatible
Low input current capability: 5 mA
Guaranteed AC and DC performance over tempera- ture: –40°C to +85°C
Available in 8-pin DIP, SOIC-8
Strobable output (single channel products only)
Schematic
HCPL-260L/060L HCPL-263L/063L
ICC ICC
VCC VCC

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	Package**	最小	最大	单位	备注
Storage Temperature	T		–55	125	˚C
Operating Temperature†	T		–40	85	˚C
Average Forward Input	Current I	Single 8-Pin DIP		20	mA	2
		Dual 8-Pin DIP		15		1, 3
Input Power Dissipation	P			40	mW
Supply Voltage (1 Minute	Maximum) V			7	V
Enable Input Voltage (Not	to Exceed V	Single 8-Pin DIP		V + 0.5	V
Enable Input Current	I			5	mA
Output Collector Current	I			50	mA	1
Output Collector Voltage	V			7	V	1
Output Collector Power	Dissipation P	Single 8-Pin DIP		85	mW
		Dual 8-Pin DIP		60		1, 4

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	值	值2	单位	条件
		8-Pin DIP
		(300 Mil)	SO-8
Minimum External Air	L (101)	7.1	4.9	mm	Measured from input terminals to output
Gap (External Clearance)					terminals, shortest distance through air.
Minimum External	Tracking L (102)	7.4	4.8	mm	Measured from input terminals to output
(External Creepage)					terminals, shortest distance path along body.
Gap (Internal Clearance)					to conductor, usually the direct distance
Tracking Resistance	CTI	200	200	Volts	DIN IEC 112/VDE 0303 Part 1
Isolation Group		IIIa	IIIa		Material Group (DIN VDE 0110, 1/89, Table 1)

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	器件	最小	典型	最大	单位	测试条件	图号	备注
High Level	I * OH			4.5	50	µA	V = 3.3 V, V = 2.0 CC E	V, 1	1, 15
Output Current							V = 3.3 V, I = 250 µA
Input Threshold	I TH			3.0	5.0	mA	V = 3.3 V, V = 2.0 CC E	V, 2	15
Current							V = 0.6 V,
							I (Sinking) = 13 mA
Low Level	V * OL			0.35	0.6	V	V = 3.3 V, V = 2.0 CC E	V, 3	15
Output Voltage							I = 5 mA,
							I (Sinking) = 13 mA
High Level	I CCH	Single		4.7	7.0	mA	V = 0.5 V I = 0 mA E F
Supply Current		Dual		6.9	10.0		V = 3.3 V
Low Level	I CCL	Single		7.0	10.0	mA	V = 0.5 V I = 10 mA E F
Supply Current		Dual		8.7	15.0		V = 3.3 V
High Level	I EH	Single		–0.5	–1.2	mA	V = 3.3 V, V = 2.0 V CC E
Low Level	I * EL	Single		–0.5	–1.2	mA	V = 3.3 V, V = 0.5 V CC E
High Level	V	Single	2.0			V			15
Low Level	V	Single			0.8	V
Input Forward	V F		1.4	1.5	1.75*	V	T = 25˚C, I = 10 mA A F	5	1
Input Diode	∆V /			–1.6		mV˚C	I = 10 mA		1
Input	C			60		pF	f = 1 MHz, V = 0 V		1
High Level Output	I			5.5	100	mA	V = 5.5 V,	1	1,15
Current							V = 5.5 V, I = 250 mA
Input Threshold	I TH	Single		2.0	5.0	mA	V = 5.5 V, V = 0.6 CC O	V, 2	15
Current							I > 13 mA
		Dual		2.5			OL
Low Level Output	V OL			0.35	0.6	V	V = 5.5 V, I = 5 CC F	mA, 3	15
Voltage							I (Sinking) = 13 mA
High Level Supply	I CCH	Single		7.0	10.0	mA	V =0.5V, V = 5.5 E CC	V,
Current							I = 0 mA
				6.5		mA	V =V , V = 5.5 V, I = 0 mA
		Dual		10.0	15.0		V = 5.5 V, IF = 0	mA
Low Level Supply	I CCL	Single		9.0	13.0	mA	V =0.5V, V = 5.5 E CC	V,
Current							I = 0 mA
				8.5		mA	V =V , Vv = 5.5 V, IF = 0 mA
		Dual		13.0	21.0	mA	V = 5.5 V, I = 0 mA
High Level Enable	I EH	Single		-0.7	-1.6	mA	V = 5.5 V, V = 2.0V CC E
Low Level Enable	I EL	Single		-0.9	-1.6	mA	V = 5.5 V, V = 0.5V CC E
High Level Enable	V	Single	2.0			V			15
Low Level Enable	V	Single			0.8	V
Input Forward	V F		1.4	1.5	1.75	V	T = 25 °C, I = 10 A F	mA	5
			1.3		1.8	V	IF=10mA
Input Diode	ΔV /ΔT			-1.6		mV/°C	I = 10 mA		1
Input Capacitance	C			60		pF	f = 1 MHz, V = 0 V		1
Input-Output	I *	Single 8-Pin	DIP		1	µA	45% RH, t = 5 s,		16, 17

订货信息与供货形式

型号	型号2	Compliant	Compliant2	封装	Mount	Wing	&	包装	ute
HCPL-xxxx	is	UL Recognized	with	3750 Vrms	for 1 minute	per	UL1577
Part	number	Compliant	Compliant	Package	Mount	Wing	&	Reel	ute
column	to form	an order	entry.	Combination	of Option	020 and	Option	060	is
Option	datasheets	are	available.	Contact your	Avago	sales	representative		or
RoHS	compliant	option	will use ‘-XXXE‘.

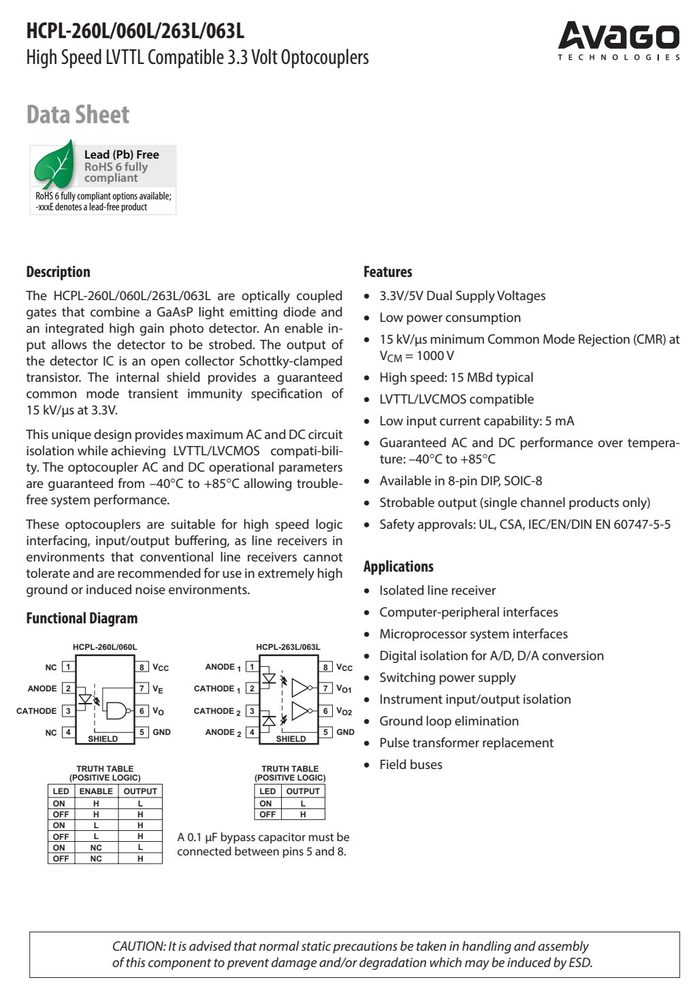

应用领域 Applications

Functional DiagramHCPL-260L/060L HCPL-263L/063LNC 1 8 VCC ANODE 1 1 8ANODE 2 7 VE CATHODE 1 2 7CATHODE 3 6 VO CATHODE 2 3 6NC 4 5 GND ANODE 2 4 5SHIELD SHIELDIsolated line receiverComputer-peripheral interfacesMicroprocessor system interfacesSwitching power supplyInstrument input/output isolation

资料下载

📄 HCPL-060L-500E 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。

获取报价 / 申请样品

常备现货、免费送样、支持小批量试产。报出用量与封装要求，当天给报价与交期。

💬 咨询 / 询价查看完整产品目录

HCPL-060L-500E 8-pin DIP
