Name: AVAGO HCPL-070A-500E
Brand: AVAGO
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

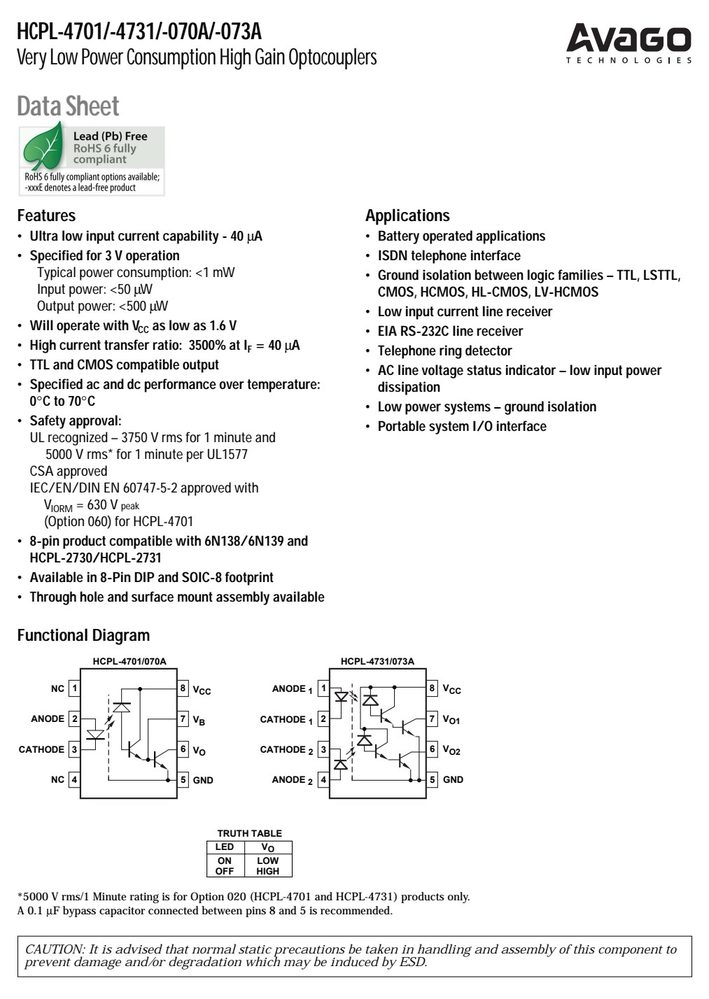

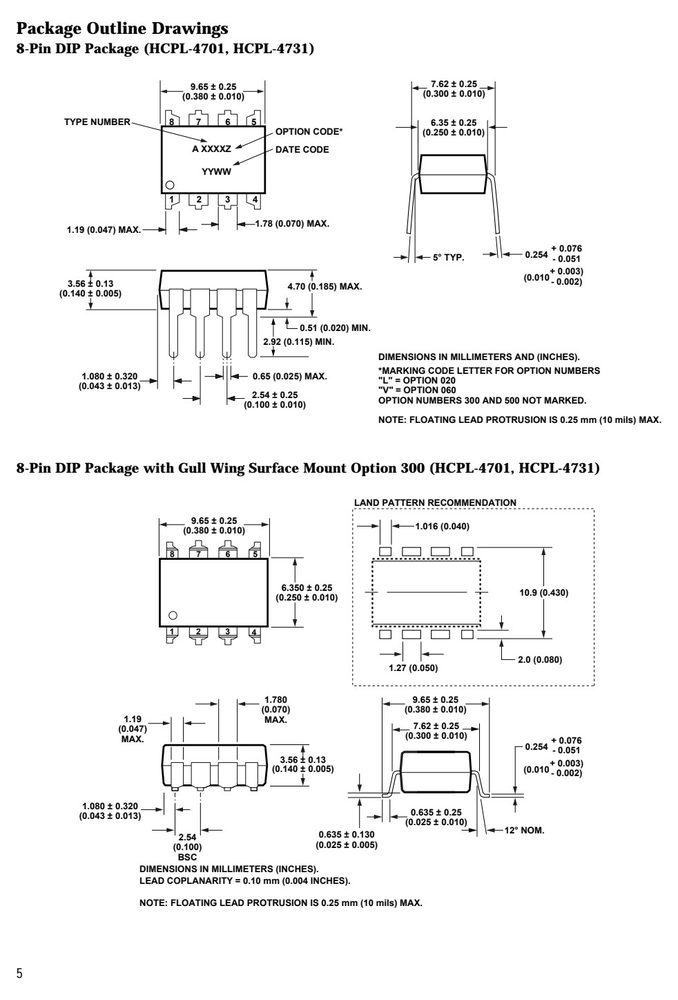

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

引脚定义与内部结构

引脚	符号	名称
2	IF
3	V
5	GND
6	VO
7	VB
8	VCC

数据来源：原厂规格书引脚图

关键参数速览

电流传输比 CTR: 2
电源电压 VCC: 18
工作温度 TA: 85

产品特点 Features

Ultra low input current capability - 40 µA • Battery operated applications
Specified for 3 V operation • ISDN telephone interface
Typical power consumption: <1 mW • Ground isolation between logic families – TTL, LSTTL,
Input power: <50 µW CMOS, HCMOS, HL-CMOS, LV-HCMOS
Output power: <500 µW
Low input current line receiver
Will operate with V as low as 1.6 V
CC • EIA RS-232C line receiver

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	Minimum	Maximum	单位
Storage Temperature	T	-55	125	°C
Operating Temperature	T	-40	85	°C
Average Forward Input Current (HCPL-4701/4731)	I		10	mA
Average Forward Input Current (HCPL-070A/073A)	I		5	mA
Peak Transient Input Current (HCPL-4701/4731)	I		20	mA
Peak Transient Input Current (HCPL-070A/073A)	I		10	mA
Input Power Dissipation (Each Channel)	P		15	mW
Output Current (Each Channel)	I		60	mA
Output Transistor Base Current (HCPL-4701/070A)	I		5	mA
Supply Voltage	V	-0.5	18	V
Output Voltage	V	-0.5	18	V
Output Power Dissipation (Each Channel)	P		100	mW
Total Power Dissipation (Each Channel)	P		115	mW

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	值	值2	单位	条件
		8-Pin DIP
		(300 Mil)	SO-8
Minimum External Air	L(101)	7.1	4.9	mm Measured	from input terminals to
Gap (External				output	terminals, shortest distance
Clearance)				through	air.
Minimum External	L(102)	7.4	4.8	mm Measured	from input terminals to
Tracking (External				output	terminals, shortest distance
Creepage)				path	along body.
Gap (Internal Clearance)				to	conductor, usually the direct
				distance	between the photoemitter and
				photodetector	inside the optocoupler
Tracking Resistance	CTI	200	200	Volts DIN IEC	112/ VDE 0303 Part 1
Isolation Group		IIIa	IIIa	Material	Group DIN VDE 0110,
				1/89,	Table 1)
Option 300 – surface	mount classification	is Class	A in	accordance with	CECC 00802.

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	HCPL-	最小	Typ.*	最大	单位	测试条件	图号	备注
0°C ≤ T ≤ 70°C,	4.5 V ≤ V	≤ 20 V, 1.6	mA ≤ I	≤	5 mA, 0	V ≤ V	≤ 0.8 V, unless	otherwise
A	CC			F(ON)		F(OFF)
specified. All	Typicals at T =	25°C. See	note 8.
Current	CTR		800	3500	25k	% I	= 40 µA, V = 0.4	V 4, 5	2
Transfer							V = 4.5 V
Ratio			600	3000	8k	I	= 0.5 mA, V = 4.5 V
			700	3200	25k	I	= 40 µA
			500	2700	8k	I	= 0.5 mA
Logic Low	V OL			0.06	0.4	V I	= 40 µA, I = 280 F O	µA 2, 3
Output Voltage				0.04	0.4	I	= 0.5 mA, I = 2.5	mA
Logic High	I			0.01	5	µA	V = V = 3 to 7 V,
Output Current						I	= 0 mA
				0.02	80	I	V = V = 18 V, = 0 mA
Logic Low	I CCL	4701/070A		0.02	0.2	mA I	= 40 µA V = Open F O
Supply Current				0.1	1	I	= 0.5 mA
		4731/073A		0.04	0.4	I	= 40 µA
				0.2	2.0	I	= 0.5 mA
Logic High	I CCH	4701/070A		<0.01	10	µA I	= 0 mA V = Open F O
Supply Current		4731/073A		<0.01	20
Input Forward	V		1.1	1.25	1.4	V I	= 40 to 500 µA,	6
Voltage							T = 25°C
	R		0.95		1.5	I	= 40 to 500 µA R A
			2.5			I	= 100 µA
Temperature	∆V /∆T			-2.0		mV/°C I	= 40 µA
				-1.6		I	= 0.5 mA
Input Capacitance	C			18		pF f	= 1 MHz, V = 0 V

订货信息与供货形式

型号	RoHS	non	RoHS2	Surface	Gull	包装	UL	5000	Vrms/	IEC/EN/DIN
UL1577	and are	approved	under CSA	Component	Acceptance		Notice	#5,	File CA	88324.
Part	RoHS	non	RoHS	Surface	Gull	Tape	UL	5000	Vrms/	IEC/EN/DIN
Number	Compliant		Compliant Package	Mount	Wing	& Reel	1	Minute	rating	EN 60747-5-2 Quantity
HCPL-4701	-020E	-020					X			50 per tube
HCPL-4731	-320E	-320		X	X		X			50 per tube
HCPL-070A	-500E	-500		X	X	X				1500 per reel
HCPL-073A	-060E	-060								X 100 per tube
the	option column	to	form an order	entry.
packaging	with	IEC/EN/DIN	EN	60747-5-2 Safety	Approval	and	RoHS		compliant.

应用领域 Applications

Output power: <500 µWLow input current line receiverWill operate with V as low as 1.6 VCC • EIA RS-232C line receiverVCM 90% 90%10% 10%0 V 2 tr tfVO 5 V VFFSWITCH AT A: IF = 0 mAV O VOL VCMSWITCH AT B: IF = 0.5 mA + –PULSE GEN.

资料下载

📄 HCPL-070A-500E 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。
