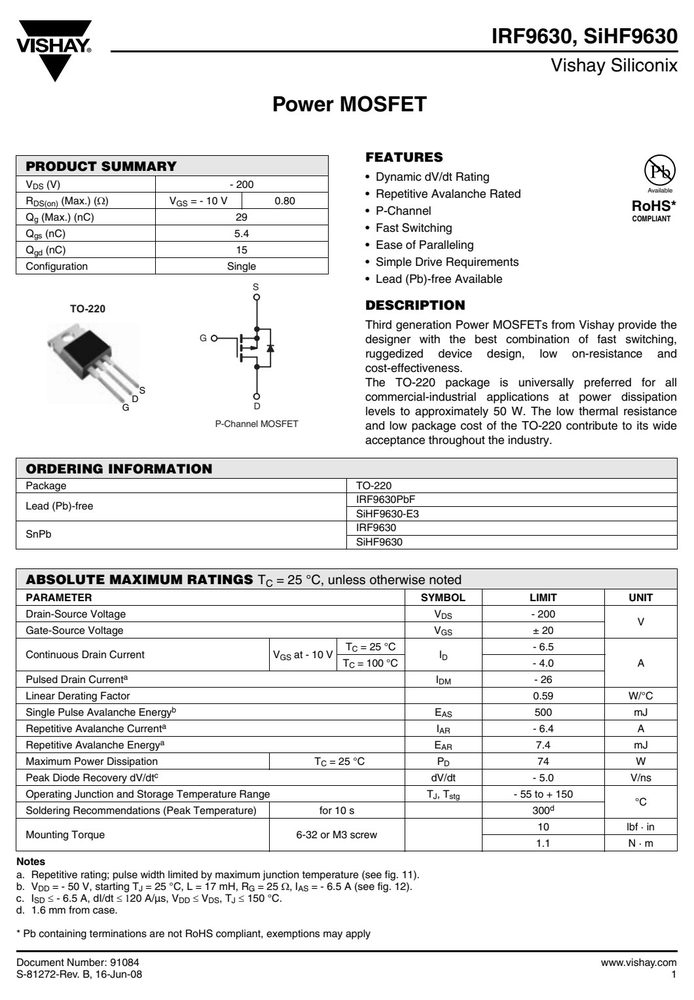

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
产品特点 Features
- PRODUCT SUMMARY
- Dynamic dV/dt Rating
- V (V) - 200
- Repetitive Avalanche Rated Available
- R (Max.) (Ω) V = - 10 V 0.80
- DS(on) GS RoHS*
- P-Channel
- Q (Max.) (nC) 29 g COMPLIANT
- Fast Switching
- Q (nC) 5.4
- Ease of Paralleling
- Q (nC) 15
- Simple Drive Requirements
- Configuration Single
- Lead (Pb)-free Available
- IRF9630, SiHF9630
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | LIMIT | 单位 |
|---|---|---|---|
| Drain-Source Voltage | V | - 200 | |
| Gate-Source Voltage | V | ± 20 | |
| T = 25 °C | - 6.5 | ||
| Continuous Drain Current | V at - 10 V I | ||
| T = 100 °C | - 4.0 | A | |
| Pulsed Drain Currenta | I | - 26 | |
| Linear Derating Factor | 0.59 | W/°C | |
| Single Pulse Avalanche Energyb | E | 500 | mJ |
| Repetitive Avalanche Currenta | I | - 6.4 | A |
| Repetitive Avalanche Energya | E | 7.4 | mJ |
| Maximum Power Dissipation | T = 25 °C P | 74 | W |
| Peak Diode Recovery dV/dtc | dV/dt | - 5.0 | V/ns |
| Soldering Recommendations (Peak Temperature) | for 10 s | 300d 10 | lbf · in |
| Mounting Torque | 6-32 or M3 screw | ||
| b. V = - 50 V, starting T = 25 °C, L = 17 mH, R | = 25 Ω, I = - 6.5 A (see fig. 12). | ||
| c. I ≤ - 6.5 A, dI/dt ≤ 120 A/µs, V ≤ V , T ≤ | 150 °C. | ||
| d. 1.6 mm from case. |
数据来源：原厂规格书

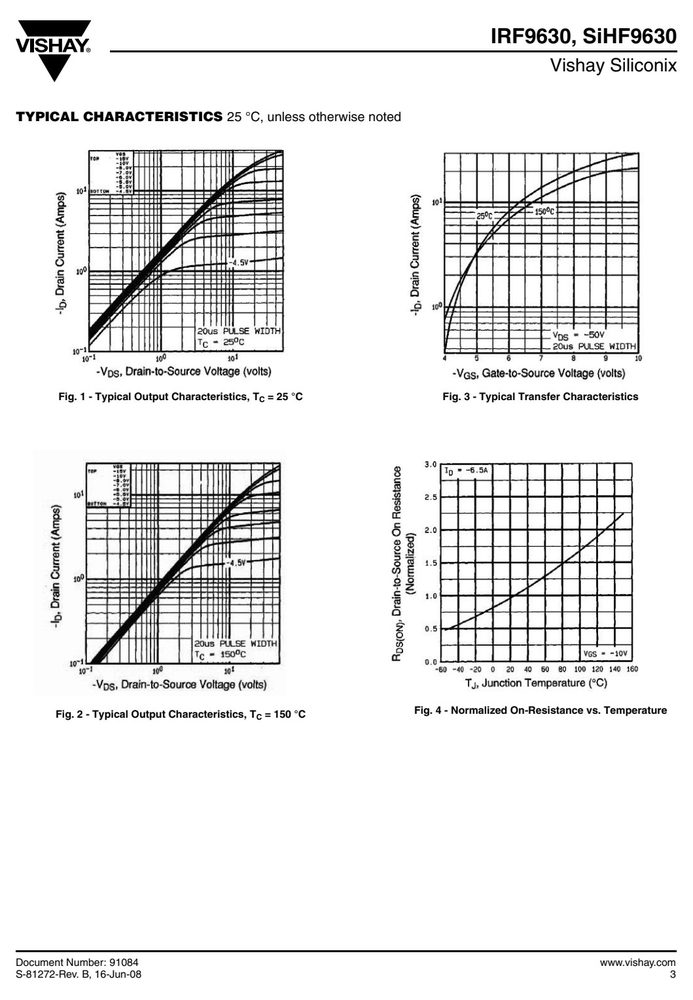

特性曲线（Typical Performance Curves）
