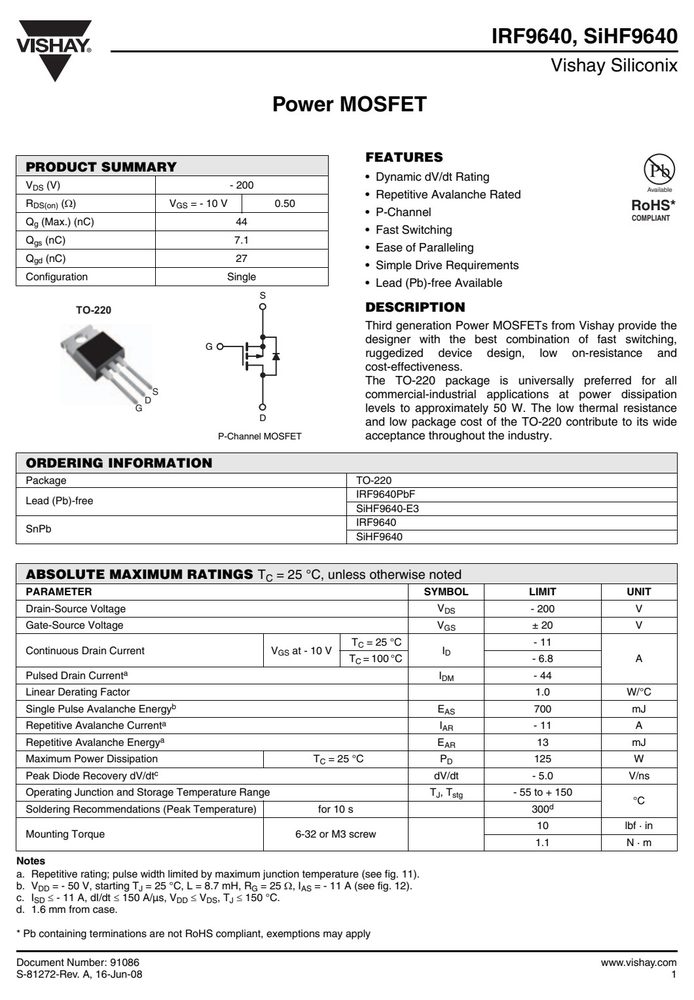

图纸取自原厂规格书，点击可放大查看原始尺寸标注。
产品特点 Features
- PRODUCT SUMMARY
- Dynamic dV/dt Rating
- V (V) - 200
- DS Repetitive Avalanche Rated Available
- R (Ω) V = - 10 V 0.50 RoHS*
- DS(on) GS
- P-Channel
- Q (Max.) (nC) 44 COMPLIANT
- Fast Switching
- Q (nC) 7.1 gs Ease of Paralleling
- Q (nC) 27 gd Simple Drive Requirements
- Configuration Single
- Lead (Pb)-free Available
- IRF9640, SiHF9640
- THERMAL RESISTANCE RATINGS
- PARAMETER SYMBOL TYP. MAX. UNIT
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | LIMIT | 单位 |
|---|---|---|---|
| Drain-Source Voltage | V | - 200 | V |
| Gate-Source Voltage | V | ± 20 | V |
| T = 25 °C | - 11 | ||
| Continuous Drain Current | V at - 10 V I | ||
| T = 100 °C | - 6.8 | A | |
| Pulsed Drain Currenta | I | - 44 | |
| Linear Derating Factor | 1.0 | W/°C | |
| Single Pulse Avalanche Energyb | E | 700 | mJ |
| Repetitive Avalanche Currenta | I | - 11 | A |
| Repetitive Avalanche Energya | E | 13 | mJ |
| Maximum Power Dissipation | T = 25 °C P | 125 | W |
| Peak Diode Recovery dV/dtc | dV/dt | - 5.0 | V/ns |
| Soldering Recommendations (Peak Temperature) | for 10 s | 300d 10 | lbf · in |
| Mounting Torque | 6-32 or M3 screw | ||
| b. V = - 50 V, starting T = 25 °C, L = 8.7 mH, R | = 25 Ω, I = - 11 A (see fig. 12). | ||
| c. I ≤ - 11 A, dI/dt ≤ 150 A/µs, V ≤ V , T ≤ | 150 °C. | ||
| d. 1.6 mm from case. |
数据来源：原厂规格书

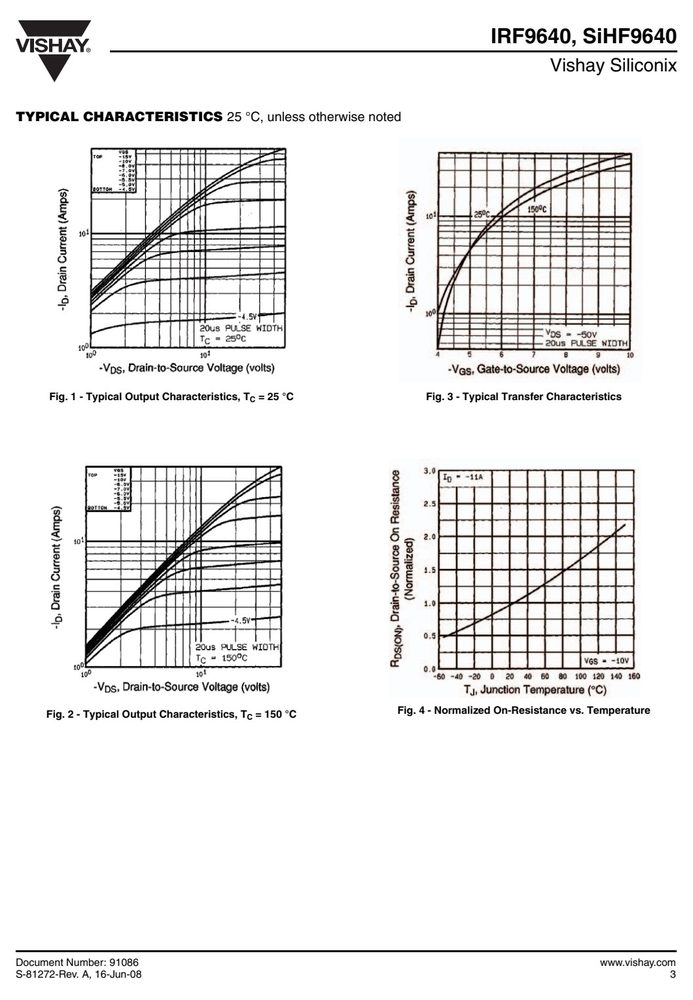

特性曲线（Typical Performance Curves）
