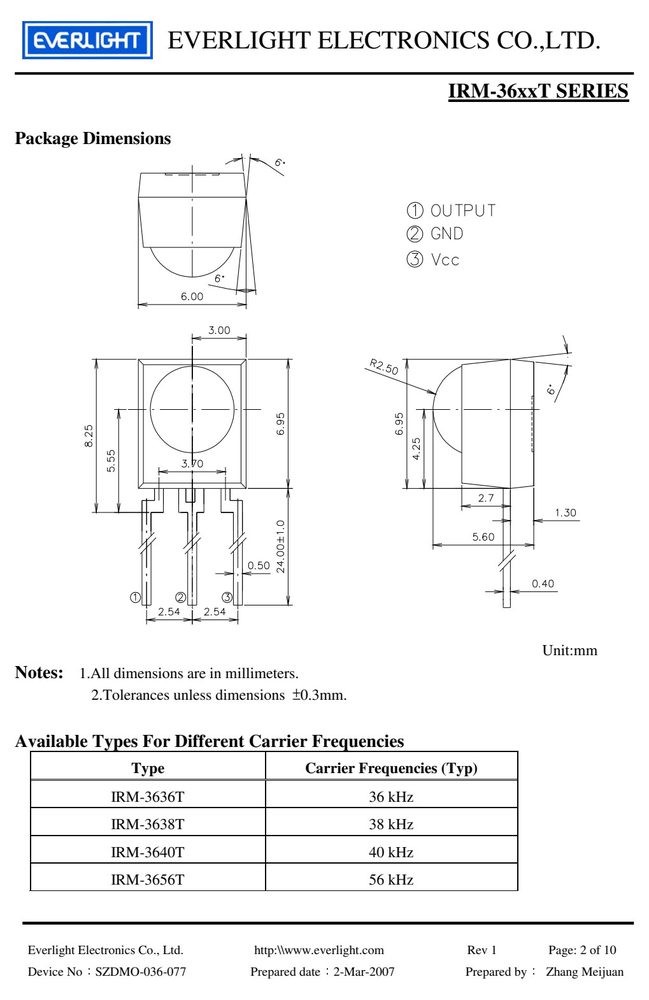

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 电源电压 VCC
- 0~6
- 工作温度 TA
- -25 ~ +80

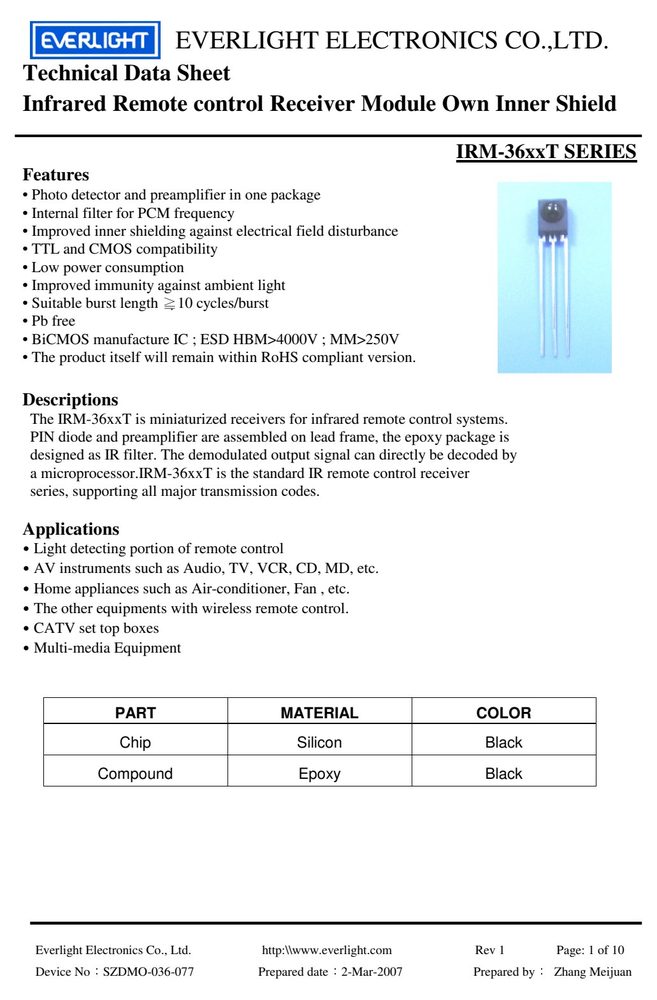

产品特点 Features
- Photo detector and preamplifier in one package
- Internal filter for PCM frequency
- IRM-36xxT SERIES
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 | Notice |
|---|---|---|---|---|
| Supply Voltage | Vcc | 0~6 | V | |
| Operating Temperature | Topr | -25 ~ +80 | ℃ | |
| Storage Temperature | Tstg | -40 ~ +85 | ℃ | |
| 4mm from mold | ||||
| Soldering Temperature | Tsol | 260 | ℃ | |
| body less than 10 |
数据来源：原厂规格书
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | 典型 | 最大 | 单位 | 条件 |
|---|---|---|---|---|---|---|
| Consumption Current | Icc | --- | 1.0 | 1.2 | mA | No signal input |
| Peak Wavelength | λ | --- | 940 | --- | nm | |
| L | 14 | --- | --- | |||
| Reception Distance | m | |||||
| L | 6 | --- | --- | |||
| Half Angle(Horizontal) | Θ h | --- | 45 | --- | deg | *1 |
| Half Angle(Vertical) | Θ | --- | 45 | --- | deg | |
| High Level Pulse Width | T | 400 | --- | 800 | ||
| Low Level Pulse Width | T | 400 | --- | 800 | ||
| High Level Output Voltage | V | 2.7 | --- | --- | V | |
| Low Level Output Voltage | V | --- | --- | 0.5 | V |
