产品应用与封装尺寸

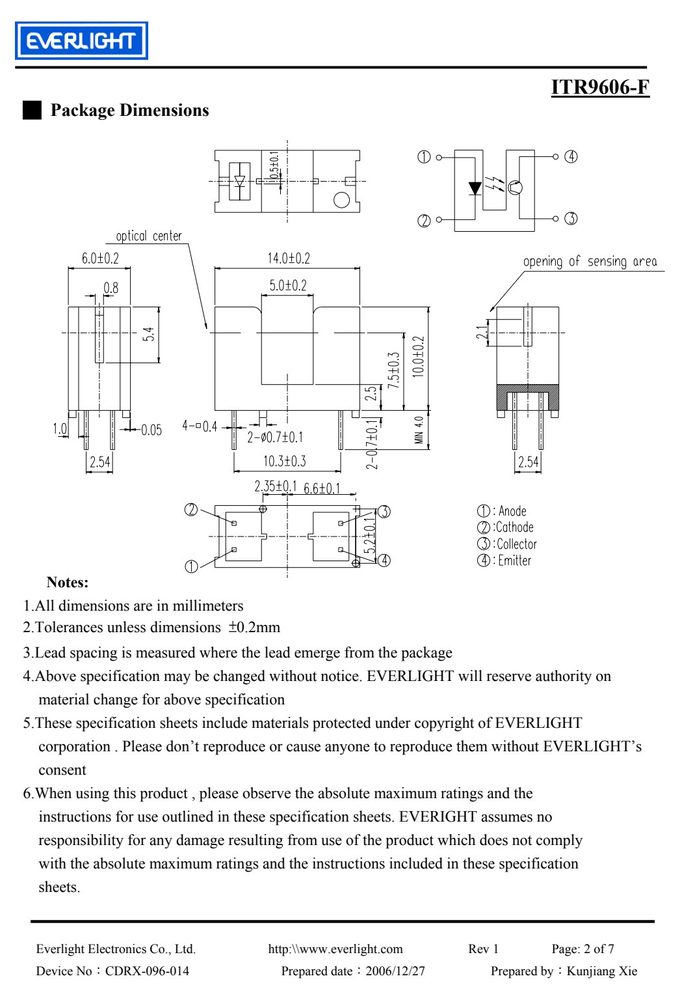

图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.5
- 正向电流 IF
- 50
- 集电极-发射极电压 VCEO
- 30
- 工作温度 TA
- -25~+85

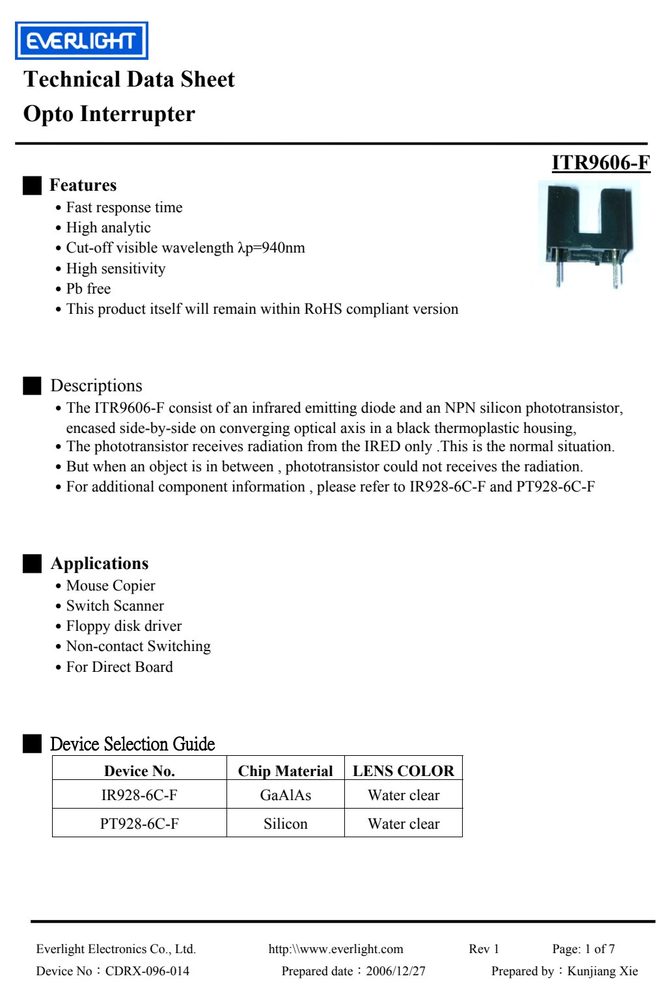

产品特点 Features
- ․Fast response time
- ․High analytic
- ․Cut-off visible wavelength λp=940nm
- ․High sensitivity
- ․Pb free
- ․This product itself will remain within RoHS compliant version
- ITR9606-F
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Power Dissipation at(or below) 25℃ | Free | ||
| Pd | 75 | mW | |
| Forward Current | I | 50 | mA |
| Peak Forward Current (*1) | |||
| I | 1 | A | |
| Pulse width ≦100μs, Duty cycle=1% | |||
| Collector Power Dissipation | Pd | 75 | mW |
| Collector Current | I | 20 | mA |
| Collector-Emitter Voltage | B V | 30 | V |
| Emitter-Collector Voltage | B V | 5 | V |
| Operating Temperature | Topr | -25~+85 | ℃ |
| Storage Temperature | Tstg | -40~+85 | ℃ |
| Lead Soldering Temperature (*2) | |||
| Tsol | 260 | ℃ | |
| (1/16 inch form body for 5 seconds) | |||
| (*1) tw=100 μsec. , T=10 msec. | (*2) t=5 Sec |
数据来源：原厂规格书
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | 典型 | 最大 | 单位 | 条件 |
|---|---|---|---|---|---|---|
| Forward Voltage | V | --- | 1.2 | 1.5 | V | I =20mA |
| Peak Wavelength | λ | --- | 940 | --- | nm | I =20mA |
| View Angle | 2θ1/2 | --- | 60 | --- | Deg | I =20mA |
| Dark C urrent | I | --- | --- | 100 | nA V | =20V,Ee=0mW/cm2 |
| Output C-E Saturation | I =2mA | |||||
| V (sat) | --- | --- | 0.4 | V | C | |
| Voltage | CE | ,Ee=1mW/cm2 | ||||
| I (ON) | 0.5 | --- | 10 | mA | V =5V I =20mA | |
| Ic(OFF) | --- | --- | 20 | μA | F | |
| Rise time | t | --- | 15 | --- | μsec | V =5V |
| Characteristics | r | CE I =1mA | ||||
| Fall time | t | --- | 15 | --- | μsec | C R =1KΩ |
