产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.4
- 电流传输比 CTR
- 600
- 正向电流 IF
- 50
- 集电极-发射极电压 VCEO
- 0.2
- 隔离电压 VISO
- 1011

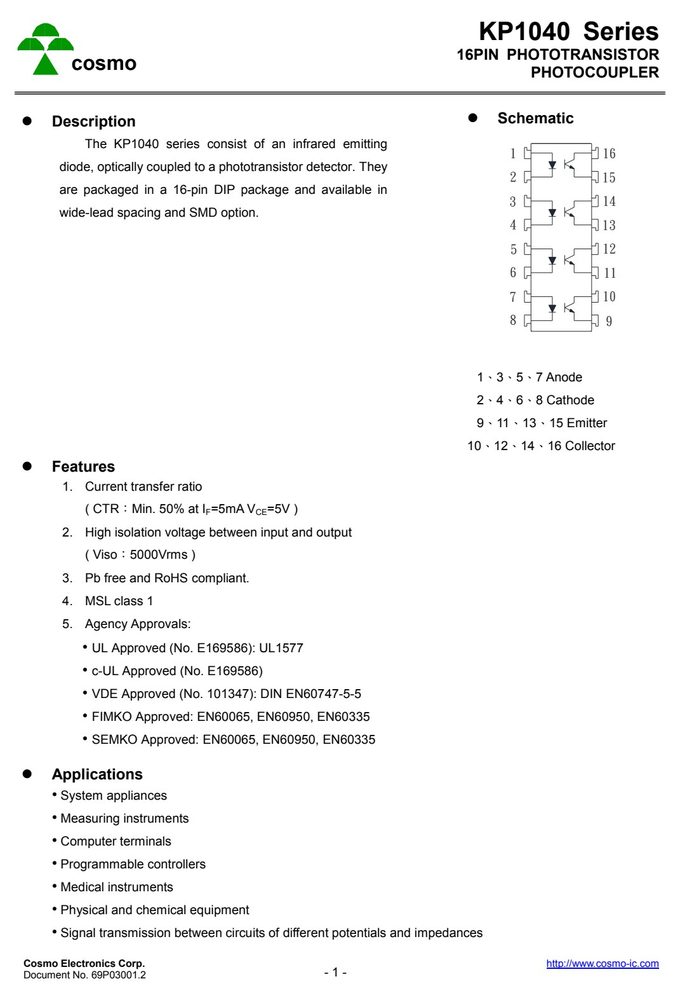

产品特点 Features
- KP1040 Series
- 16PIN PHOTOTRANSISTOR cosmo
- PHOTOCOUPLER
- Outside Dimension Unit : mm
- 1.Dual-in-line type. 2.Surface mount type.
- KP1040 KP1040S
- 7.62 19.84 6.50 19.84
- 05.3 05.3
- 0~10°
- 00.3 07.2 04.0 0.25 0.10±0.1
- 1.00 1.20 2.54 2.54
- 10.00±0.4
- 0.25 0.50 1.20 2.54 2.54
- 13.00° 13.00°
- 3.Long creepage distance type 4.Long creepage distance for surface mount type.
- KP1040H KP1040L
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Forward current | I | 50 | mA |
| Peak forward current | I | 1 | A |
| Power dissipation | P | 70 | mW |
| Collector-emitter voltage | V | 80 | V |
| Emitter-collector voltage | V | 6 | V |
| Collector current | I | 50 | mA |
| Collector power dissipation | P | 150 | mW |
| Total power dissipation | P | 200 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 1.Dual-in-line | 型号 | 2.Surface | mount | 型号2 |
|---|---|---|---|---|
| KP1040 Series | ||||
| 16PIN PHOTOTRANSISTOR | ||||
| Outside | Dimension | Unit : mm | ||
| 1.Dual-in-line | type. | 2.Surface | mount | type. |
| KP1040 | KP1040S | |||
| 7.62 | 19.84 | 6.50 | 19.84 0~10° | |
| 3.Long | creepage distance type | 4.Long | creepage | distance |
| for surface | mount | type. | ||
| KP1040H | KP1040L 0~10° | |||
| 0.25 | 00.3 03.0 | 07.2 11.80+ - 0 0 | . . 2 5 | 2.0±52.0 1.20 2.54 2.54 |
| cosmo 1040 | cosmo 1040 | TOLERANCE：±0.2mm | ||
| YWW | Y: | Year code / WW: Week code |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| Forward voltage | V I | =20mA | - | 1.2 | 1.4 | V |
| Peak forward voltage | V I | =0.5A | - | - | 3.0 | V |
| Terminal capacitance | C V=0, | f=1KHz | - | 30 | - | pF |
| Output Collector dark current | I V | =20V, I =0 | - | - | 0.1 | μA |
| Current transfer ratio | CTR I | =5mA, V =5V | 50 | - | 600 | % |
| Collector-emitter | saturation V I | =20mA, I =1mA | - | 0.1 | 0.2 | V |
| Isolation resistance | R | DC500V | 5x1010 | 1011 | - | Ω |
| charac- Floating capacitance | C V=0, | f=1MHz | - | 0.6 | 1.0 | pF |
| Cut-off frequency | f V | =5V, I =2mA, R | =100Ω - | 80 | - | KHz |
| Response time ( Rise | ) t | - | 4 | 18 | μs | |
| V | =2V, I =2mA, R | =100Ω | ||||
| Response time ( Fall | ) t | - | 3 | 18 | μs |
