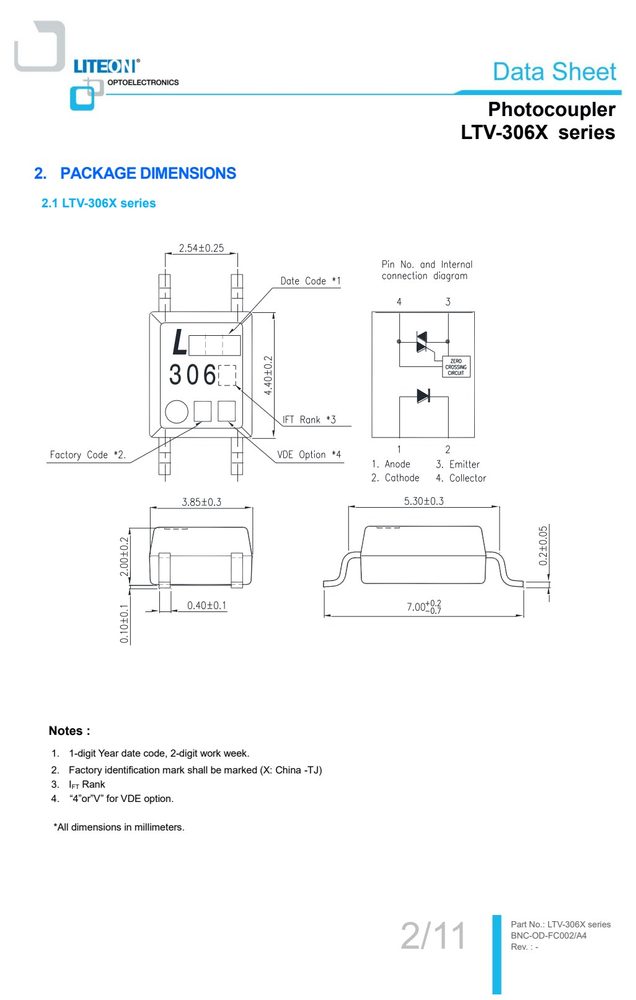

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.4
- 正向电流 IF
- 50

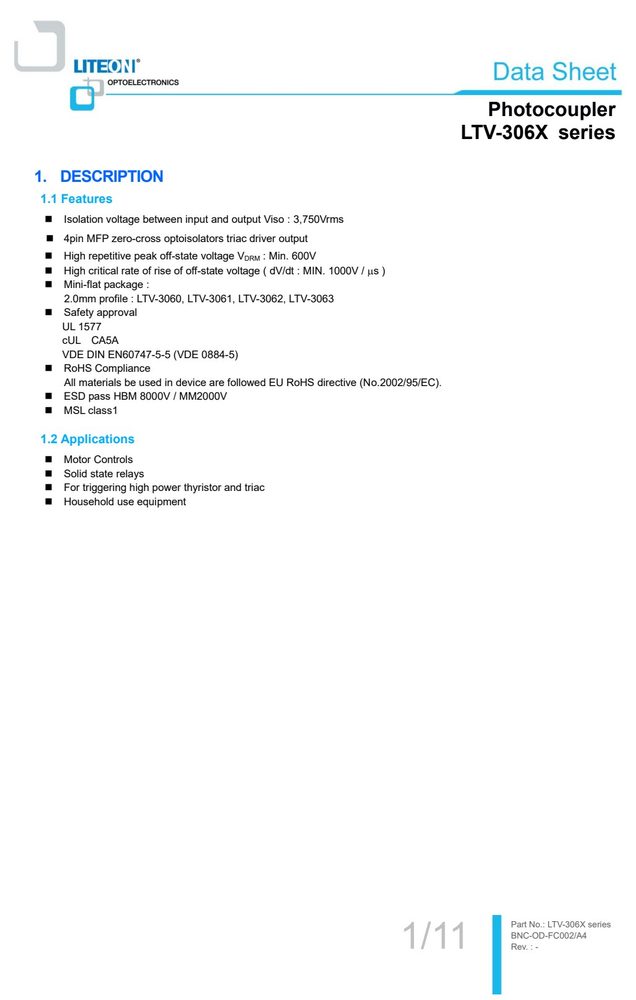

产品特点 Features
- Photocoupler
- LTV-306X series
- 3. TAPING DIMENSIONS
- 3.1 LTV-306X-TP 3.2 LTV-306X
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Forward Current | I | 50 | mA |
| Power Dissipation | P | 70 | mW |
| Junction Temperature | T | 125 | oC |
| Off-State Output Terminal Voltage | V | 600 | V |
| Peak Repetitive Surge Current ( PW=1ms, | 120pps ) V | 1 | A |
| Collector Power Dissipation | P | 300 | mW |
| Junction Temperature | T | 125 | oC |
| Total Power Dissipation | P | 330 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 4. | 额定值 | AND | 特性 |
|---|---|---|---|
| LTV-306X series | |||
| Ambient Operating Temperature Range T -55 ~ +115 oC | |||
| Storage Temperature T -55 ~ +150 oC | |||
| Isolation voltage | shall be measured using the following method. | ||
| (2) | The isolation | voltage tester with zero-cross circuit shall be used. | |
| (3) | The waveform | of applied voltage shall be a sine wave. | |
| 4/11 Part No.: LTV- 306X ser ies | |||
| BNC-OD-FC002/A4 |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | 典型 | 最大 | 单位 | 测试条件 |
|---|---|---|---|---|---|---|
| Forward Voltage | V | — | 1.2 | 1.4 | V | I =20mA |
| I | — | — | 500 | nA | V =600V | |
| Output | V | — | — | 3.0 | V | I =100 mA Peak |
| dv/dt | 1000 | — | — | V/s | ||
| LTV-3060 | — | — | 30 | |||
| Current, Current | LTV-3061 | — | — | 15 | ||
| Main Terminal | ||||||
| Required to Latch | I | mA | ||||
| LTV-3062 | — | — | 10 | Voltage = 3V | ||
| LTV-3063 | — | — | 5 | |||
| Holding Current, Either | Direction I | — | 400 | — | A | |
| MT1-MT2 Voltage | ||||||
| Inhibit Voltage | V | — | 5 | 20 | Volts | above which |
| device will not trigger | ||||||
| Leakage in Inhibited State | I | — | — | 500 | A | |
| V , Off State | ||||||
| 5/11 | Part No.: LTV- 306X ser ies | |||||
| BNC-OD-FC002/A4 |
