关键参数速览
- 正向电压 VF
- -1.2
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| Characteristic | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Drain-source voltage | V | 30 | V |
| Gate-source voltage | V | – 12 | V |
| DC | I (Note 1) | 4.0 | |
| Pulse | I (Note 1,2) | 10 | |
| P D (Note 3) | 1 | ||
| t ≦ 10s | 2 | 1. Gate | |
| Channel temperature | T | 150 | C SOT-23F 2. Source |
| Storage temperature range | T | - 55 to 150 | C |
数据来源：原厂规格书
电气特性 Electrical Characteristics（TA = 25°C）
| Characteristic | 符号 | 测试条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| V I | = 1 mA, V = 0 V | 30 | ||||
| V I | = 1 mA, V = - 12 V (Note | 5) 18 | ||||
| Drain cut-off current | I V | = 24 V, V = 0 V | 1 | m A | ||
| Gate leakage current | I V | = – 10 V, V = 0 V | – 10 | m A | ||
| Gate threshold voltage | V V | = 3 V, I = 1 mA | 0.4 | 1.0 | V | |
| Forward transfer admittance | ‰ Y ‰ V | = 3 V, I = 2.0 A | (Note 4) | 10.5 | S | |
| I | = 2.0 A, V = 4.5 V | (Note 4) | 45 | 56 | ||
| Drain–source ON-resistance | R I | = 1.0 A, V = 2.5 V | (Note 4) | 55 | 72 | mW |
| I | = 0.5 A, V = 1.8 V | (Note 4) | 69 | 109 | ||
| Input capacitance | C | 200 | ||||
| Output capacitance | C V | = 10 V, V = 0 V, f = 1 MHz | 40 | pF | ||
| Total gate charge | Q | 2.2 | ||||
| Gate-source charge | Q | DS D | 0.5 | nC | ||
| Gate-drain charge | Q | 0.9 | ||||
| Turn-on time | t on V | DD = 10 V, I D = 2.0 A, | 9 | |||
| Switching time | ns | |||||
| Turn-off time | t off V | GS = 0 to 2.5V, R G = 4.7 W | 9.5 | |||
| Drain-source forward voltage | V I | = -4.0 A, V = 0 V | (Note 4) | -0.8 | -1.2 | V |
应用领域 Applications
产品应用与封装尺寸

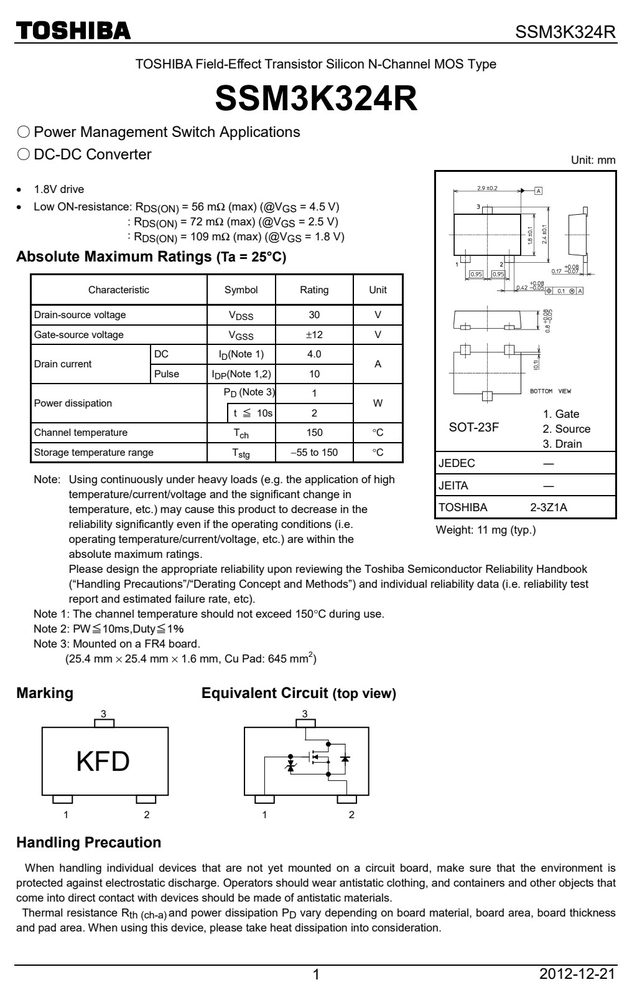

图纸取自该型号原厂规格书的应用电路与封装尺寸章节，点击图片可放大查看原始尺寸标注。
