产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 反向电压 VR
- 13.5
- 电源电压 VCC
- ±18 V
产品特点 Features
- Wide common-mode (up to V + ) and differential voltage range
- Low input bias and offset current
- Output short-circuit protection
- High input impedance JFET input stage DIP8
- (Plastic package)
- Internal frequency compensation
- Latch up free operation
- High slew rate: 16 V/µs (typical) bias and offset current, and low offset voltage
- TSSOP8 temperature coefficient.
- (Thin shrink small outline package)
- Schematic diagram TL082 TL082A TL082B
- 1 Schematic diagram
- Figure 1. Schematic diagram
- Non-inverting input
- Inverting input
- Output
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 符号 | 参数 | 单位 |
|---|---|---|
| TL082I, AI, TL082C, AC, | ||
| V Supply | voltage (1) | ±18 V |
| V Input | voltage (2) | ±15 V |
| V Differential | input voltage (3) | ±30 V |
| P Power | dissipation | 680 mW |
| Thermal SO-8 DIP8 TSSOP8 | resistance junction to ambient(4) | 125 85 120 |
| Thermal SO-8 DIP8 TSSOP8 | resistance junction to case | 40 41 37 |
| Output | short-circuit duration (5) | Infinite |
| T Storage | temperature range | -65 to +150 °C |
| HBM: | human body model(6) | 1 kV |
数据来源：原厂规格书
电气特性 Electrical Characteristics（TA = 25°C）
| 最小 | 典型 | 最大 | 最小2 | 典型2 | 最大2 |
|---|---|---|---|---|---|
| TL082C | |||||
| T = +25°C TL082 | 3 | 10 | 3 | 10 | |
| TL082A | 3 | 6 | |||
| V TL082B | 1 | 3 | mV | ||
| T ≤ T ≤ T TL082 TL082A TL082B | 13 7 5 | 13 | |||
| DV Input offset voltage drift | 10 | 10 | µV/°C | ||
| I T = +25°C | 5 | 100 | 5 | 100 pA | |
| T ≤ T ≤ T | 4 | 10 nA | |||
| I T = +25°C | 20 | 200 | 20 | 400 pA | |
| T ≤ T ≤ T | 20 | 20 nA | |||
| A T = +25°C 50 | 200 | 25 | 200 | V/mV | |
| T ≤ T ≤ T 25 | 15 | ||||
| SVR T = +25°C 80 | 86 | 70 | 86 | dB | |
| T ≤ T ≤ T 80 | 70 | ||||
| I T = +25°C | 1.4 | 2.5 | 1.4 | 2.5 mA | |
| T ≤ T ≤ T | 2.5 | 2.5 | |||
| ±11 | +15 | ±11 | +15 | ||
| icm | -12 | -12 | |||
| 80 | 86 | 70 | 86 | ||
| CMR T = +25°C amb 80 | 70 | dB | |||
| I T = +25°C 10 | 40 | 60 | 10 | 40 | 60 mA |
| T ≤ T ≤ T 10 | 60 | 10 | 60 | ||
| T = +25°C R = 2kΩ 10 | 12 | 10 | 12 | ||
| ±V R = 10kΩ 12 | 13.5 | 12 | 13.5 | V | |
| T ≤ T ≤ T R = 2kΩ 10 | 10 | ||||
| R = 10kΩ 12 | 12 | ||||
| V = 10V, R = 2kΩ, C = 100pF, unity gain 8 | 16 | 8 | 16 | V/µs | |
| Table 3. V = ±15V, T = +25°C (unless otherwise | specified) | (continued) | TL082C | ||
| r V = 20mV, R = 2kΩ, C = 100pF, unity gain | 0.1 | 0.1 | µs | ||
| ov V = 20mV, R = 2kΩ, C = 100pF, unity gain | 10 | 10 | % | ||
| V = 10mV, R = 2kΩ, C = 100pF, F= 100kHz 2.5 | 4 | 2.5 | 4 | MHz | |
| R Input resistance | 1012 | 1012 | Ω | ||
| F=1kHz, R = 2kΩ,C =100pF, A =20dB, V =2V | 0.01 | 0.01 | % | ||
| e n R S = 100Ω, F = 1kHz | 15 | 15 | --- n -- H - V ---- z -- | ||
| ∅m Phase margin | 45 | 45 | degrees | ||
| V /V | 120 | 120 | dB |

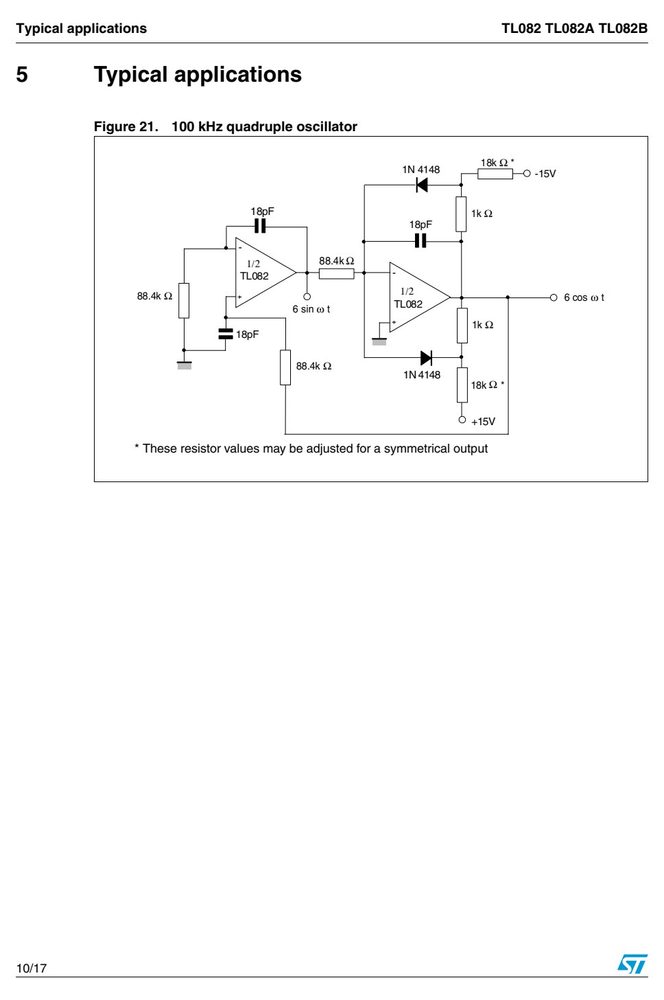

特性曲线（Typical Performance Curves）
订货信息与供货形式
| TL082IDT | 包装 | & | 包装2 | 082I |
|---|---|---|---|---|
| TL082IN | DIP8 | Tube | TL082IN | |
| TL082ID | Tube | or | ||
| TL082IDT | tape | & | reel | 082I |
| TL082IPT | TSSOP8 Tape | & | reel | |
| TL082AIN | DIP8 | Tube | TL082AIN | |
| TL082AID | Tube | or | ||
| TL082AIDT | tape | & | reel | 082AI |
| TL082AIPT | TSSOP8 Tape | & | reel | |
| TL082BIN | DIP8 | Tube | TL082BIN | |
| TL082BID | Tube | or | ||
| TL082BIDT | tape | & | reel | 082BI |
| TL082BIPT | TSSOP8 Tape | & | reel | |
| TL082CN | DIP8 | Tube | TL082CN | |
| TL082CD | Tube | or | ||
| TL082CDT | tape | & | reel | 082C |
| TL082CPT | TSSOP8 Tape | & | reel | |
| TL082ACN | DIP8 | Tube | TL082ACN | |
| TL082ACD | Tube | or | ||
| TL082ACDT | tape | & | reel | 082AC |
| TL082ACPT | TSSOP8 Tape | & | reel | |
| TL082BCN | DIP8 | Tube | TL082BCN | |
| TL082BCD | Tube | or | ||
| TL082BCDT | tape | & | reel | 082BC |
| TL082BCPT | TSSOP8 Tape | & | reel |
