Name: TOSHIBA TLP126(TPL,F)
Brand: TOSHIBA
Availability: InStock

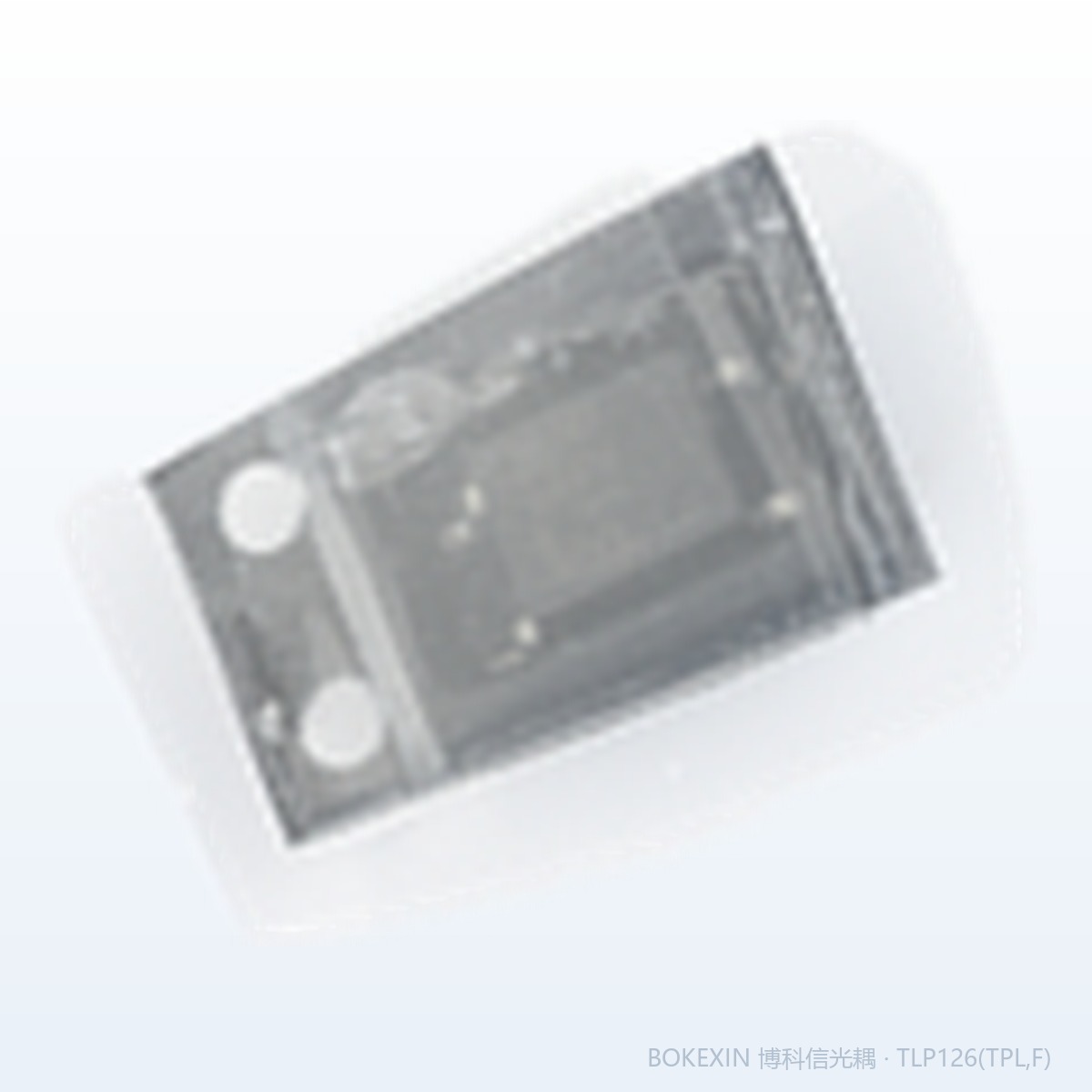

产品实拍图

本页为博科信现货实拍（器件丝印见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

引脚定义与内部结构

数据来源：原厂规格书引脚图

超过下表数值可能造成器件永久损坏，设计时请留余量。

Characteristic	符号	额定值	单位
Forward current	I	50	mA
Forward current derating (Ta≥ 53°C) ∆	∆I / °C	Ω0.7	mA / °C
Peak forward current(100µs pulse,100pps)	I	1	A
Junction temperature	T	125	°C
CollectorΩemitter voltage	V	80	V
EmitterΩcollector voltage	V	7	V
Collector current	I	50	mA
Peak collector current(10ms pulse,100pps)	I	100	mA
Power dissipation	P	150	mW
Power dissipation derating (Ta ≥ 25°C)	∆P / °C	Ω1.5	mW / °C
Junction temperature	T	125	°C
Storage temperature range	T	Ω55~125	°C
Operating temperature range	T	Ω55~100	°C
Lead soldering temperature(10 sec.)	T	260	°C
Total package power dissipation	P	200	mW
Total package power dissipation derating	(Ta≥25°C) ∆P / °C	Ω2.0	mW / °C
Isolation voltage (AC, 1min., RH ≤ 60%)	(Note 1) BV	3750	Vrms

数据来源：原厂规格书

Characteristic	符号	额定值	单位
			TLP126

Characteristic	符号	测试条件	最小	典型	最大	单位
Forward voltage	V I	= ±10 mA	1.0	1.15	1.3	V
Capacitance	C T V	= 0, f = 1 MHz	―	60	―	pF
breakdown voltage	V (BR) CEO I C	= 0.5 mA	80	―	―	V
rotceteD breakdown voltage	V (BR) ECO I E	= 0.1 mA	7	―	―	V
	V	CE = 48 V	―	10	100	nA
	V	CE = 48 V, Ta = 85°C	―	2	50	µA
Capacitance collector to emitter	C CE V	= 0, f = 1 MHz	―	12	―	pF
Current transfer ratio	I / I I	= ±1 mA, V = 0.5 V	100	―	1200	%
Low input CTR	I / I IF	= ±0.5 mA, V = 1.5 V	50	―	―	%
CollectorΩemitter	I C	= 0.5 mA, I F = ±1 mA	―	―	0.4
	I	= 1 mA, I = ±1 mA	―	0.2	―
OffΩstate collector current	I V	= ± 0.7V, V = 48 V	―	1	10	µA
CTR symmetry	I I	(I = Ω1mA) / I (I = 1mA)	0.3	―	3	—
Current transfer ratio	I / I I	= 1 mA, V = 0.5 V	50	―	―	%
Low input CTR	I / I IF	= 0.5 mA, V = 1.5 V 3	―	50	―	% 2002-09-25 TLP126

规格书为原厂公开资料，点击在新窗口打开下载。

常备现货、免费送样、支持小批量试产。报出用量与封装要求，当天给报价与交期。
