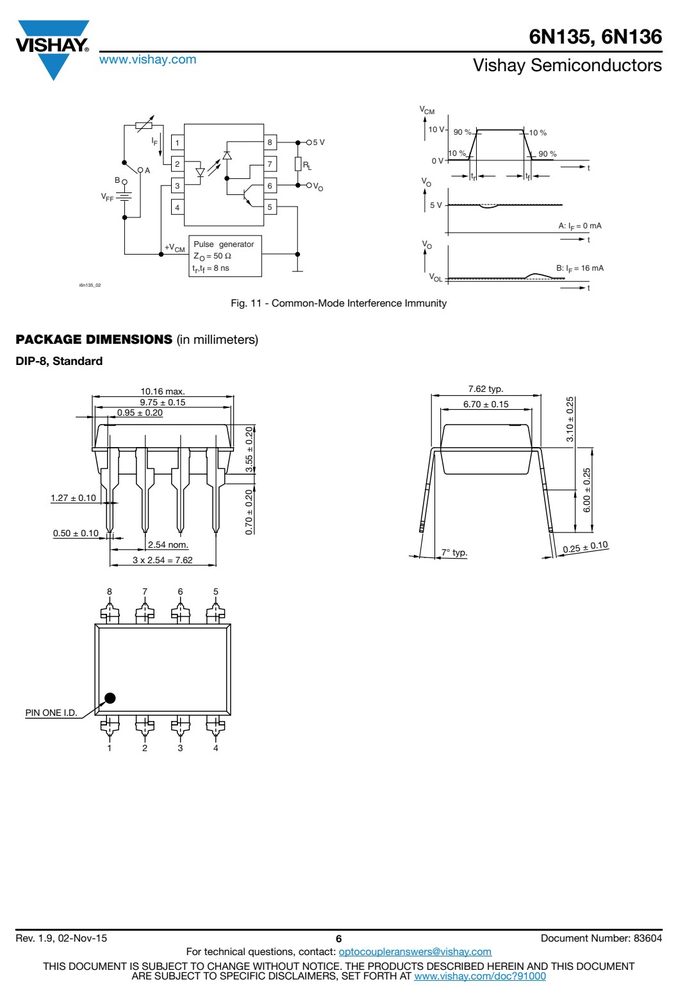

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 1 | A | |
| 2 | I | |
| 3 | F | |
| 4 | F | |
| 5 | E | |
| 6 | C | |
| 7 | B | |
| 8 | C |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电压 VF
- 1.9
- 正向电流 IF
- 25
- 电源电压 VCC
- -0.5 to 15
产品特点 Features
- Isolation test voltages: 5300 V
- TTL compatible
- High bit rates: 1 Mbit/s
- NC 1 8 C (V )
- CC • High common-mode interference immunity
- A 2 7 B (V )
- B • Bandwidth 2 MHz
- C 3 6 C (V )
- O • Open-collector output
- NC 4 5 E (GND)
- External base wiring possible
- Material categorization:
- for definitions of compliance please see
- AGENCY APPROVALS
- UL1577 file no. E52744, double protection
- DIN EN 60747-5-5 (VDE0884-5) available with option 1
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 条件 | 符号 | 值 | 单位 |
|---|---|---|---|---|
| Forward current | I | 25 | mA | |
| Peak forward current | t = 1 ms, duty cycle 50 % | I | 50 | mA |
| Maximum surge forward current | t ≤ 1 μs, 300 pulses/s | 1 | A | |
| Thermal resistance | R | 700 | K/W | |
| Power dissipation | T = 70 °C amb | P diss | 45 | mW |
| Supply voltage | V | -0.5 to 15 | V | |
| Output voltage | V | -0.5 to 15 | V | |
| Emitter base voltage | V | 5 | V | |
| Output current | I | 8 | mA | |
| Maximum output current | 16 | mA | ||
| Base current | I | 5 | mA | |
| Thermal resistance | 300 | K/W | ||
| Power dissipation | T = 70 °C amb | P diss | 100 | mW |
| Storage temperature range | T | -55 to +150 | °C | |
| Ambient temperature range | T | -55 to +100 | °C | |
| max. ≤ 10 s, dip soldering | ||||
| Soldering temperature | T | 260 | °C | |
| ≥ 0.5 mm from case bottom | sld |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 测试条件 | 符号 | 值 | 单位 |
|---|---|---|---|---|
| Pollution degree | According to DIN VDE 0109 | 2 | ||
| Maximum rated withstanding isolation | voltage According to UL1577, t = 1 min | V | 5300 | V |
| Maximum transient isolation voltage | According to DIN EN 60747-5-5 | V | 8000 | V |
| Maximum repetitive peak isolation | voltage According to DIN EN 60747-5-5 | V | 890 | V |
| T = 25 °C, V = 500 V amb IO | R IO | ≥ 1012 | Ω | |
| T = 100 °C, V = 500 V amb IO | R IO | ≥ 1011 | Ω |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 测试条件 | 型号 | 符号 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|---|
| Forward voltage | I = 16 mA | V | - | 1.33 | 1.9 | V | |
| Breakdown voltage | I = 10 μA | V | 5 | - | - | V | |
| Capacitance | V = 0 V, f = 1 MHz | C | - | 30 | - | pF | |
| Temperature coefficient, forward | voltage I = 16 mA | ΔV /ΔT | - | -1.7 | - | mV/°C | |
| Logic low supply current | I = 16 mA, V = open, V = | 15 V | I | - | 150 | - | μA |
| Logic high supply current | I = 0 mA, V = open, V = 15 | V | I | - | 0.01 | 1 | μA |
| I = 16 mA, I = 1.1 mA, V = | 4.5 V 6N135 | V | - | 0.1 | 0.4 | V | |
| I = 16 mA, I = 3.0 mA, V = | 4.5 V 6N136 | V | - | 0.1 | 0.4 | V | |
| I = 0 mA, V = V = 5.5 V | I | - | 3 | 500 | nA | ||
| I = 0 mA, V = V = 15 V | I | - | 0.01 | 1 | μA | ||
| Capacitance (input to output) | f = 1 MHz | C | - | 0.6 | - 6N135, | pF 6N136 |

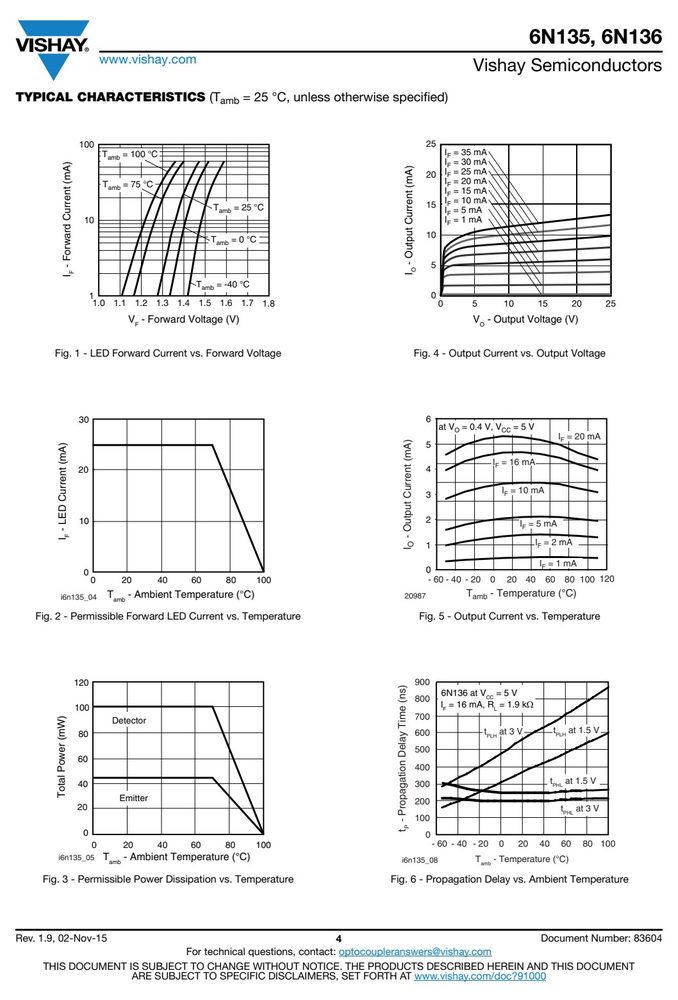

特性曲线（Typical Performance Curves）
相关 / 可替代型号
以上型号来自规格书与型号命名比对，参数需以各自规格书为准；下单前请与销售确认封装与脚位。
