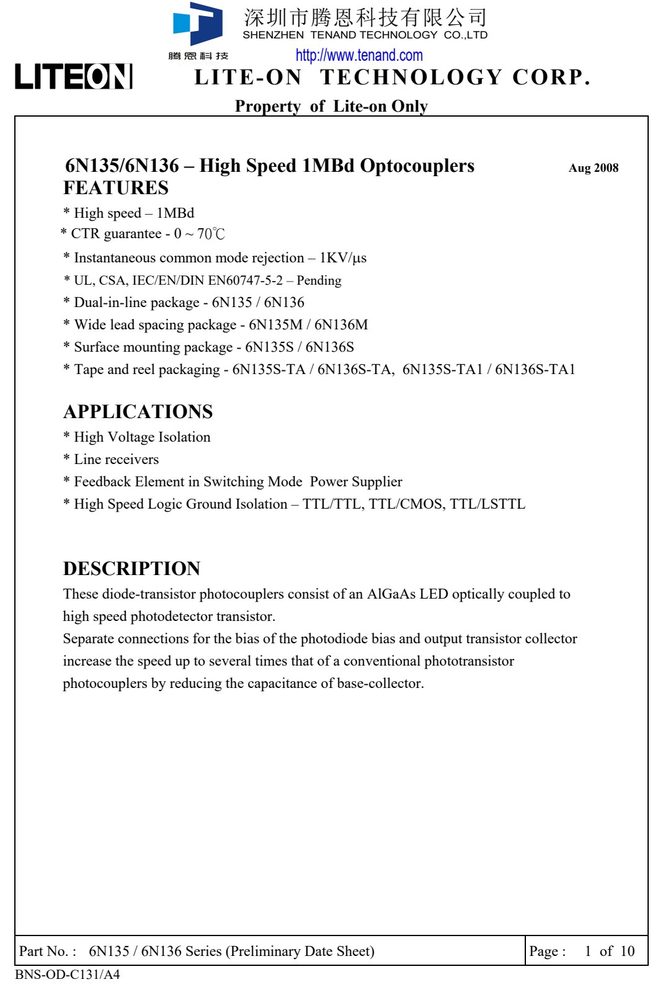

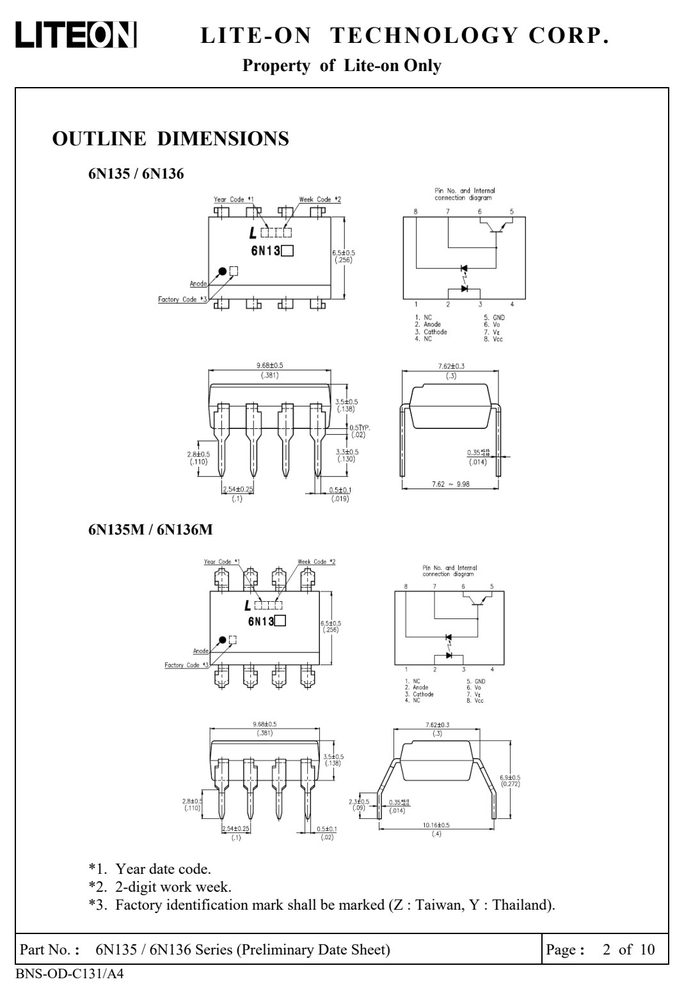

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电流 IF
- 25
- 电源电压 VCC
- -0.5 ~ +30
产品特点 Features
- High speed – 1MBd
- L I T E - O N T E C H N O L O G Y C O R P .
- Property of Lite-on Only
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| ( | Ta = 25°C ) | ||
| Forward Current | I | 25 | mA |
| Power Dissipation | P | 35 | mW |
| Supply Voltage | V | -0.5 ~ +30 | V |
| Output Voltage | V | -0.5 ~ +20 | V |
| Average Output Current | I | 8 | mA |
| Power Dissipation | P | 100 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Operating Temperature | T | -40 ~ +100 | °C |
| Storage Temperature | T | -55 ~ +125 | °C |
| 2 Soldering Temperature | T | 260 | °C |
| Isolation voltage shall be measured | using the following method. | ||
| (1) Short between anode and cathode | on the primary side and | between collector | and |
| (2) The isolation voltage tester with | zero-cross circuit shall be | used. | |
| (3) The waveform of applied voltage | shall be a sine wave. | ||
| Part No. : 6N135 / 6N136 Series (Preliminary | Date Sheet) | Page : 5 of 10 | |
| BNS-OD-C131/A4 |
