AFBR-1521CZ 3 Pin No

The AFBR-15x1CZ analog transmitter utilizes a 650-nm LED source, and the AFBR-25x1CZ receiver consists of an IC with an integrated photodiode providing a TTL logic family AFBR-25x1CZ devices have inve
3 Pin No正向电流 IF AFBR-15x1CZ with电源电压 VCC V CC + 0.3工作温度 TA 95

品牌说明

本型号为 AVAGO(安华高) 产品。安华高与博通(Broadcom)属于同一家公司:安华高 2005 年由安捷伦分拆上市,2016 年被博通收购,成为博通旗下半导体业务,业内常以 AVAGO/安华高/博通 混称。本页参数与规格书均取自该产品线原厂资料。

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符,本页不放同系列近似图;如需实物照片,请联系销售获取本批次实拍。

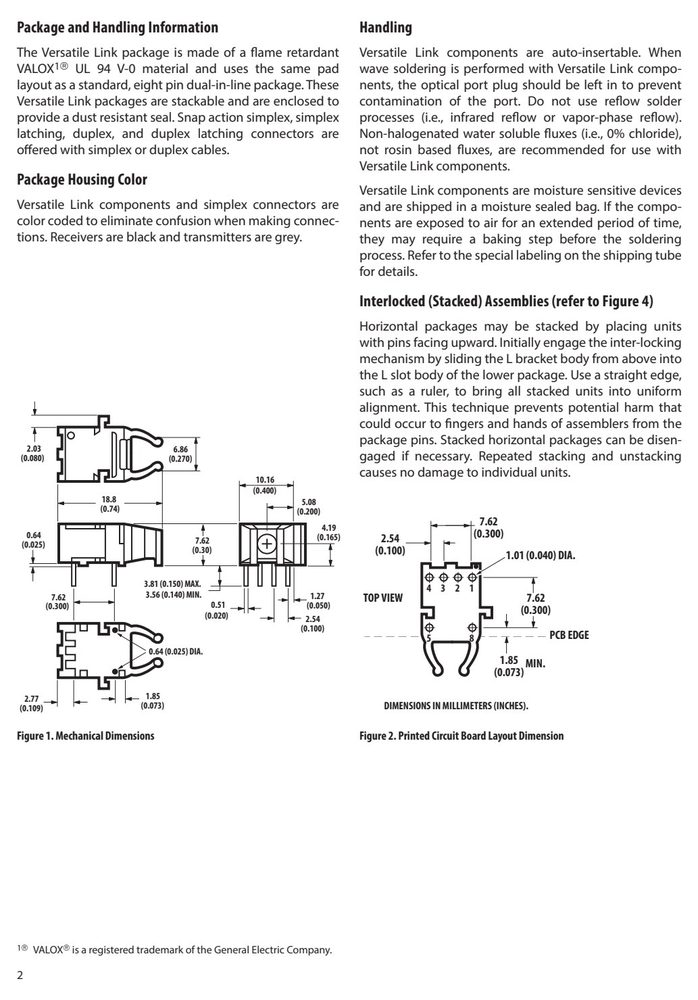

产品应用与封装尺寸

图纸取自原厂规格书,点击可放大查看原始尺寸标注。

关键参数速览

正向电流 IF
AFBR-15x1CZ with
电源电压 VCC
V CC + 0.3
工作温度 TA
95

产品特点 Features

  • The AFBR-15x1CZ analog transmitter utilizes a 650-nm LED source, and the AFBR-25x1CZ receiver consists of an IC with an integrated photodiode providing a TTL logic family output.
  • AFBR-25x1CZ devices have inverted output signals, which means that light_on leads to Data_out low.
  • The transmitter and receiver housing is designed to efficiently couple into 1-mm Polymer Optical Fiber (POF) and 200-μm
  •  RoHS-compliant
  •  Data transmission at signal rates from DC up to 5 MBd
  •  Up to 58 meters distance with 1-mm Polymer Optical Fiber
  • (POF) and up to 500 meters with 200-μm PCS
  •  Operating temperature range of –40 °C to +95 °C
  •  Compatible with the Avago Technologies Versatile Link family of connectors, for easy termination of fiber
  • Electrostatic Discharge (ESD) to the Electrical Pins Human Body Model MIL-STD-883 Method 3015 Min ± 2000 V

绝对最大额定值 Absolute Maximum Ratings(TA = 25°C)

超过下表数值可能造成器件永久损坏,设计时请留余量。

参数符号最小最大单位
Storage and Operating TemperatureT–4095°C
Transmitter Peaking Forward Input CurrentaI F,PK—45mA
Transmitter Short Term Peaking Forward InputCurrentb I F, PKshort—80mA
Transmitter Average Forward Input CurrentI—30mA
a. For I > 30 mA, the duty factor must maintain ≤30mA I and pulse width ≤1 μs.
数据来源:原厂规格书

电气特性 Electrical Characteristics(TA = 25°C)

参数符号最小Typical最大单位
Supply CurrentaI CC—610mA
Data Output Voltage – LowbV OL–0.3—0.4V
Data Output Voltage – HighbV OH2.5—V CC + 0.3V
Rise Time (10% to 90%)ct R——10ns
Fall Time (90% to 10%)ct F——10ns
Pulse Width Distortionc, d, e, fPWD–30—30ns
Propagation Delayc, dt D——60ns
Propagation Skewc, d, gt skew——20ns
V Level to Deactivate PORa, hV POR_DEACT—2.8—V
V CC Level to Activate PORa, hV POR_ACT—2.6—V
POR Deactivate Delay Timea, ht POR_DEACT_DEL—100—μs
Receiver OpticalCharacteristics(AFBR-25x1CZ)
Input Optical Power POF (Peak)aP IN–24—1dBm
Input Optical Power PCS (Peak)bP IN–26—–2dBm
Input Optical Power Off-State POFaP IN_Off–40——dBm
Input Optical Power Off-State PCSbP IN_Off–43——dBm

应用领域 Applications

Horizontal Package AFBR-1521CZVertical Package AFBR-1531CZTilted Package AFBR-1541CZAvailable Receiver AFBR-25x1CZ Options:Horizontal Package AFBR-2521CZVertical Package AFBR-2531CZTilted Package AFBR-2541CZ Serial field buses Extension of RS-232 and RS-485 High voltage isolation Elimination of ground loops Drivers and inverters
