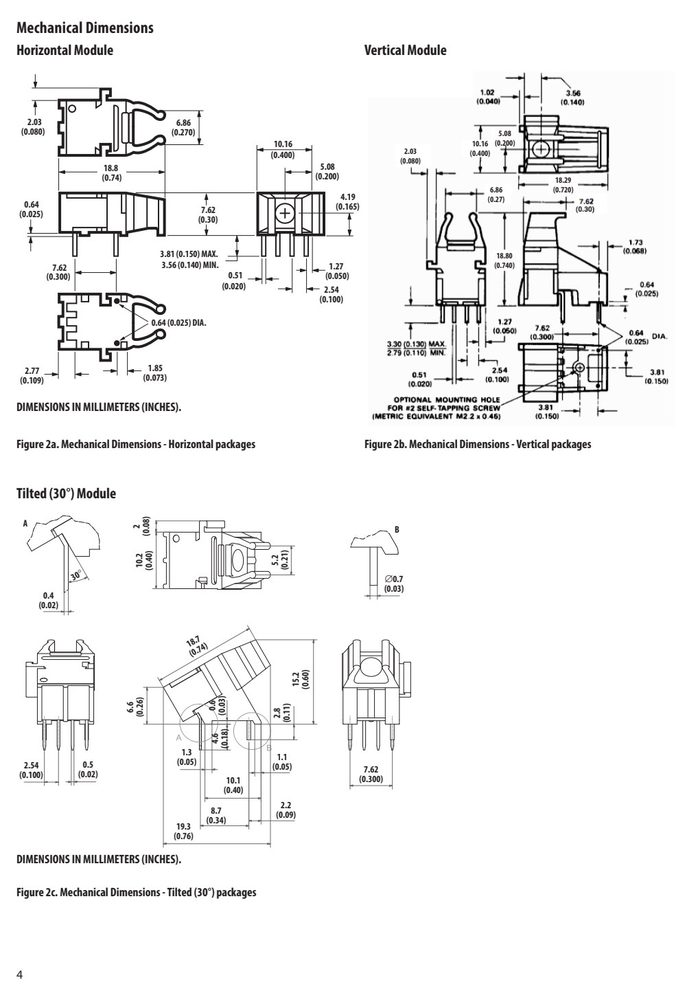

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电流 IF
- 1. Absolute Maximum Ratings
- 电源电压 VCC
- 2
- 传输速率
- 5

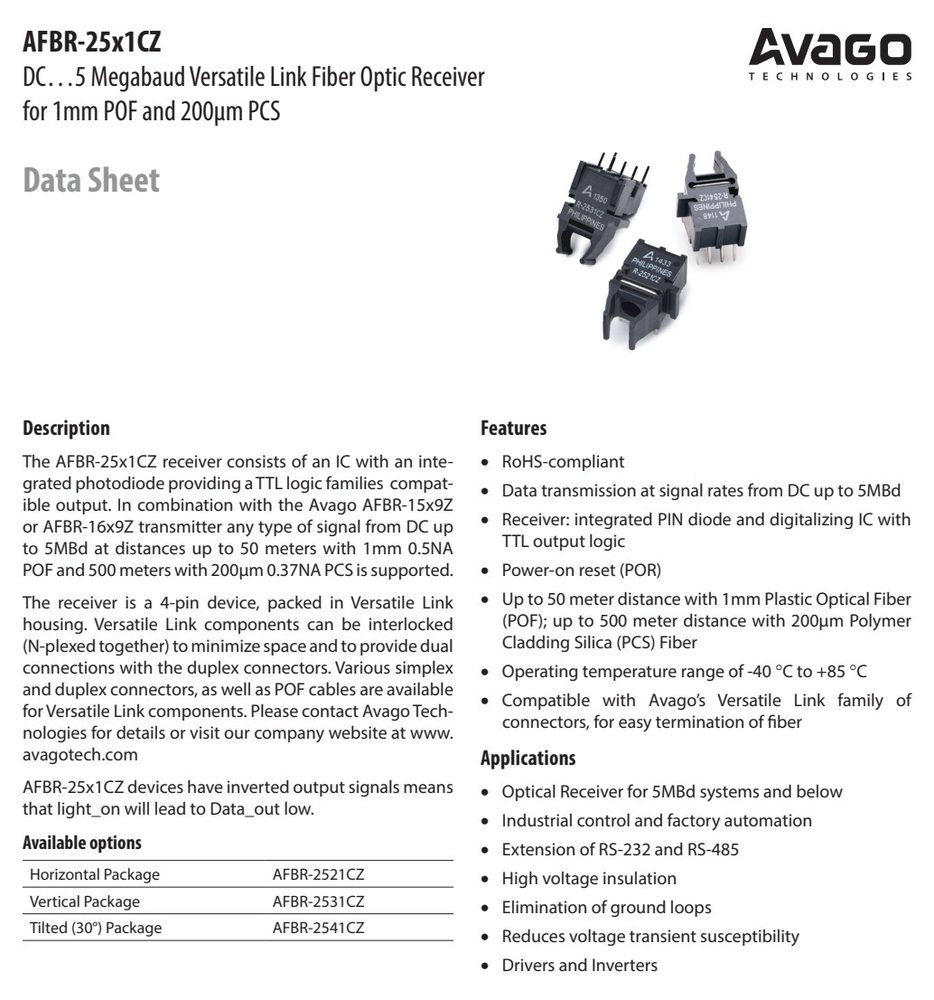

产品特点 Features
- POF and 500 meters with 200µm 0.37NA PCS is supported.
- The receiver is a 4-pin device, packed in Versatile Link housing. Versatile Link components can be interlocked
- RoHS-compliant
- Data transmission at signal rates from DC up to 5MBd
- Receiver: integrated PIN diode and digitalizing IC with
- TTL output logic
- Power-on reset (POR)
- Up to 50 meter distance with 1mm Plastic Optical Fiber
- (POF); up to 500 meter distance with 200µm Polymer
- Cladding Silica (PCS) Fiber
- Operating temperature range of -40 °C to +85 °C
- Compatible with Avago’s Versatile Link family of connectors, for easy termination of fiber
- Electrostatic Discharge (ESD) to the Electrical Pins Human Body Model MIL-STD-883 Method 3015 Min +/- 2000V
- AFBR-25x1CZ Receiver
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 典型 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|---|
| Storage Temperature | T | –40 | 95 | °C | 1 | |
| Ambient Temperature | T | -40 | 85 | °C | 1 | |
| Relative Humidity | RH | 0 | 85 | % | 1 | |
| Supply Voltage | V | –0.5 | 6 | V | 1 | |
| Data Output Current | I | 10 | mA | 1 | ||
| Data Rate | DC | 5 | MBd |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| Figure | 1a. | Interlocked | (stacked) | Horizontal | 封装 | Figure2 | 1b. | Interlocked2 | (stacked)2 | Vertical | 封装2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Interlocked | (Stacked) | Assemblies | (refer to Figure 1) | ||||||||
| Stacking | Horizontal | Modules | Stacking | Vertical | Modules | ||||||
| Figure | 1c. | Interlocked | (stacked) | Tilted (30°) | packages |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | Typical | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|---|
| Supply Current | I | 6 | 10 | mA | 1 | |
| Data Output Voltage – | Low V | –0.3 | 0.4 | V | 2 | |
| Data Output Voltage – | High V | 2.5 | Vcc+0.3 | V | 2 | |
| Rise Time (10%–90%) | t | 10 | ns | 3 | ||
| Fall Time (90%–10%) | t | 10 | ns | 3 | ||
| Pulse Width Distortion | PWD | -30 | 30 | ns | 3, 4, 5, 6 | |
| Propagation Delay | t | 60 | ns | 3, 4 | ||
| Propagation Skew | t | 20 | ns | 3, 4, 7 | ||
| Vcc level to deactivate | POR V | 2.8 | V | 1, 8 | ||
| Vcc level to activate POR | V | 2.6 | V | 1, 8 | ||
| POR deactivate delay time | t | 100 | µs | 1, 8 | ||
| Input Optical Power POF | (Peak) P | -24 | 1 | dBm | 9 | |
| Input Optical Power PCS | (Peak) P | -26 | -2 | dBm | 10 | |
| Input Optical Power | Off-State POF P | -40 | dBm | 9 | ||
| Input Optical Power | Off-State PCS P | -43 | dBm | 10 |
