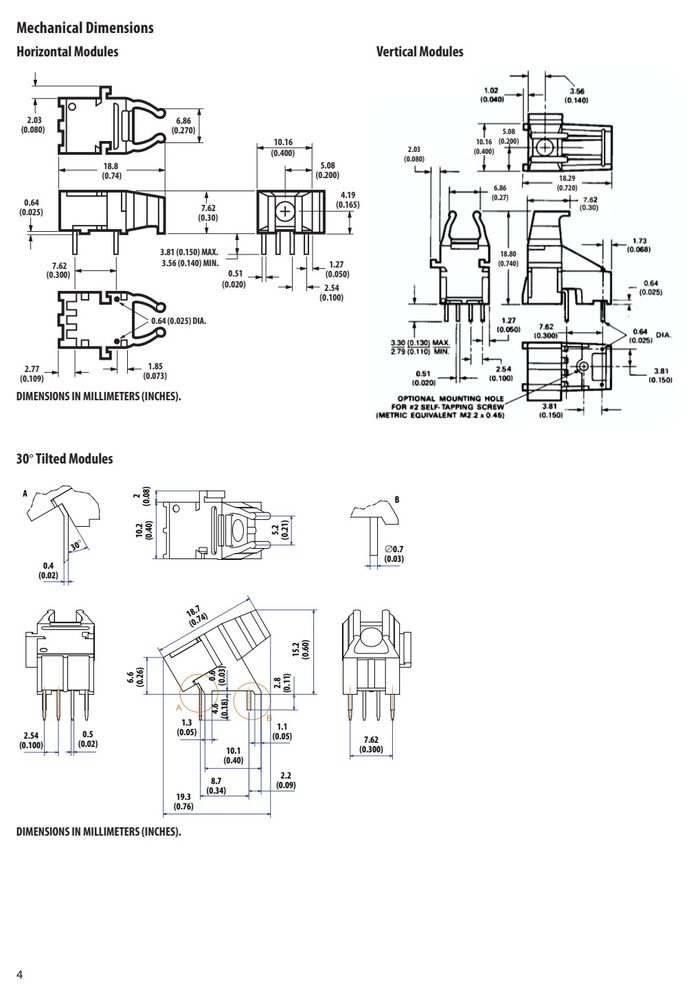

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
产品特点 Features
- The Versatile Link series is a complete family of fi ber
- Extended temperature range -40 to +85° C
- HFBR-0500ETZ Series Part Number Guide
- HFBR-X5XXETZ
- 1 = Transmitter
- 2 = Receiver ET = extended temperature range
- Z = RoHS compliant
- 5 = 600 nm Transmitter and
- Receiver Products
- 1 = 5 MBd High Performance Link
- 2 = 1 MBd High Performance Link
- 2 = Horizontal Package 6 = 155 MBd Receiver
- 3 = Vertical Package 7 = 155 MBd Transmitter
- 4 = 30° Tilted Package
- Available option – Horizontal Package
- HFBR-x521ETZ HFBR-x522ETZ
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 符号 | 最小 | 最大 | 单位 | Reference |
|---|---|---|---|---|
| T | –40 | +85 | °C | |
| T | –40 | +85 | °C | |
| 260 10 | °C sec | Note 1, 4 | ||
| I I | 1000 80 | mA | Note 2, 3 | |
| V | 5 | V | ||
| T | –40 | +85 | ° C | |
| T | –40 | +85 | ° C | |
| 260 10 | ° C sec | Note 1, 4 | ||
| I I | 1000 80 | mA | Note 2, 3 | |
| V | 5 | V |
数据来源：原厂规格书
