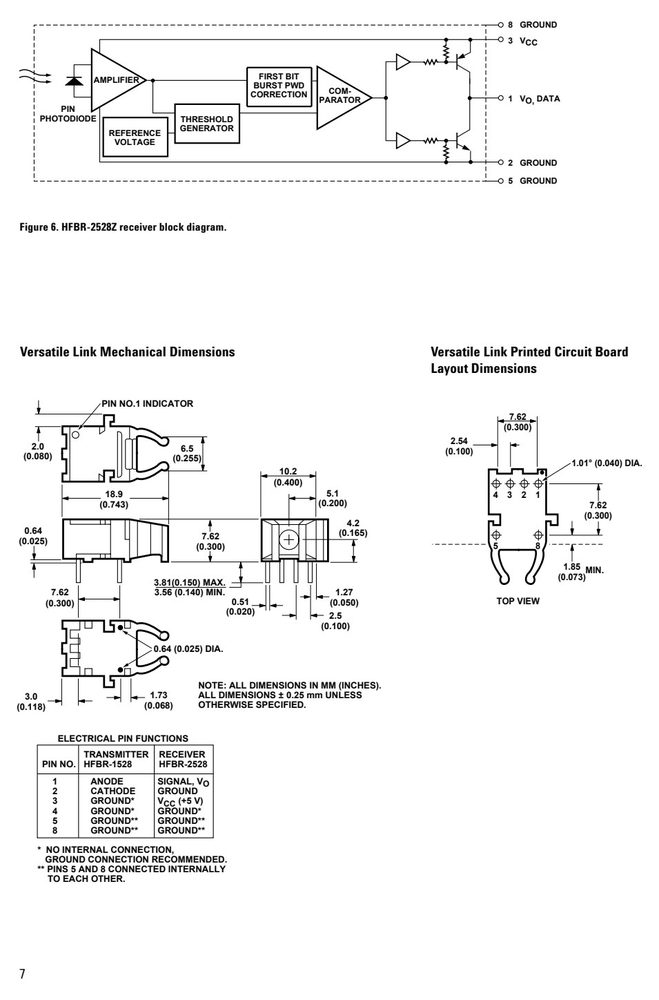

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 电源电压 VCC
- +5.5
- 工作温度 TA
- +85
产品特点 Features

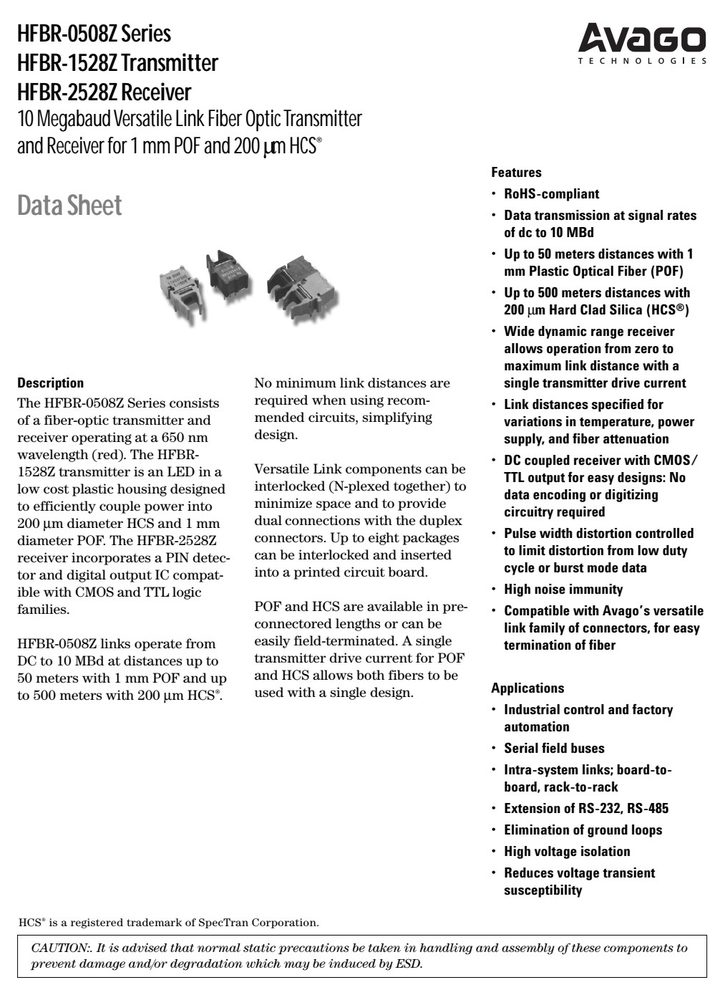

- Data Sheet
- RoHS-compliant
- Data transmission at signal rates of dc to 10 MBd
- Up to 50 meters distances with 1 mm Plastic Optical Fiber (POF)
- Up to 500 meters distances with
- 200 µm Hard Clad Silica (HCS®)
- Wide dynamic range receiver allows operation from zero to maximum link distance with a
- No minimum link distances are single transmitter drive current
- HFBR-0508Z Series 10 MBd Data Link
- Typical Link Performance, T = +25°C
- Parameter Symbol Typ.[1] Unit Condition Note
- Signaling Rate f 15 Mb/s NRZ 2
- Link Distance with Extra Low Loss POF Cable 100 m 10 MBd 2, 3, 5
- Link Distance with 200 µm HCS Cable 900 m 10 MBd 2, 4, 5
- Specified Link Performance, T = -40° to +85°C, DC to 10 MBd, unless otherwise noted.
- Parameter Symbol Min. Max. Unit Condition Note
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|
| Receiver Supply Voltage | V | -0.5 | +5.5 | V | |
| Receiver Average Output Current | I | -16 | +16 | mA | |
| Receiver Output Power Dissipation | P | 80 | mW | ||
| Transmitter Peak Forward Input Current | I | 90 | mA | 6 | |
| Transmitter Average Forward Input | Current I | 60 | mA | ||
| Lead Soldering Cycle | Temp T | +260 | °C | 7 | |
| Time | 10 | sec | 7 |
数据来源：原厂规格书
