产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.5
- 隔离电压 VISO
- 1x1011

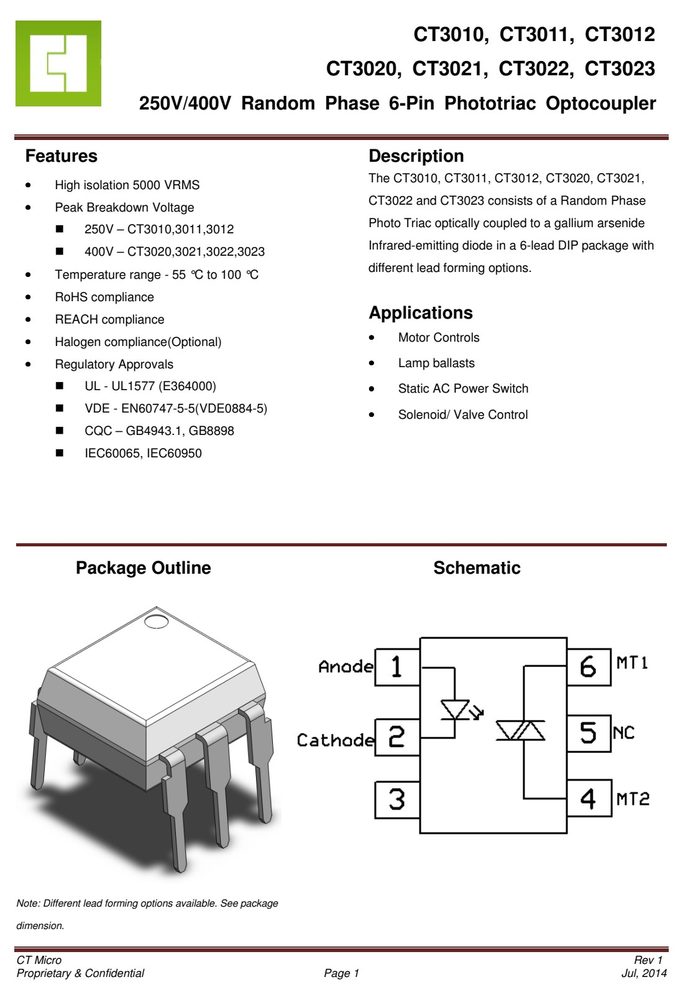

产品特点 Features
- The CT3010, CT3011, CT3012, CT3020, CT3021,
- •••• High isolation 5000 VRMS
- CT3022 and CT3023 consists of a Random Phase
- •••• Peak Breakdown Voltage
- Photo Triac optically coupled to a gallium arsenide
- Ω 250V – CT3010,3011,3012
- Infrared-emitting diode in a 6-lead DIP package with
- Ω 400V – CT3020,3021,3022,3023 different lead forming options.
- •••• Temperature range - 55 °C to 100 °C
- •••• RoHS compliance
- Temperature Min. (Tsmin) 150°C
- Temperature Max. (Tsmax) 200°C
- Time (ts) from (Tsmin to Tsmax) 60-120 seconds
- Ramp-up Rate (t to t ) 3°C/second max.
- Liquidous Temperature (T ) 217°C
- Time (t ) Maintained Above (T ) 60 – 150 seconds
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 符号 | 参数 | 测试条件 | 最小 | 典型 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|---|---|
| CT3010, | CT3011, | CT3012 | |||||
| CT3020, | CT3021, | CT3022, | CT3023 | ||||
| 250V/400V | Random Phase | 6-Pin | Phototriac | Optocoupler |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 符号 | 参数 | 额定值 | 单位 | 备注 |
|---|---|---|---|---|
| TOPR Operating | temperature | -55 ~ +100 | oC | |
| TSTG Storage | temperature | -55 ~ +150 | oC | |
| TSOL Soldering | temperature | 260 | oC | |
| I Forward current | 60 | mA | ||
| I Peak transient | current (≤1µs P.W,300pps) | 1 | A | |
| P Power dissipation | 100 | mW | ||
| P Power dissipation | 300 | mW | ||
| CT3010,3011,3012 | 250 | V | ||
| V Off-State | Output Terminal Voltage | |||
| CT3020,3021,3022,3023 | 400 | V | ||
| I Peak Repetitive | Surge Current | 1 | A |
电气特性 Electrical Characteristics（TA = 25°C）
| 符号 | 参数 | 测试条件 | 最小 | 典型 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|---|---|
| V Forward | voltage | I =10mA | - | - | 1.5 | V | |
| C Input | Capacitance | f= 1MHz | - | 45 | - | pF | |
| I Peak | Blocking Current | I = 0mA, V = Rated V | - | - | 100 | nA | |
| V Peak | On-State Voltage | I = Rated I , I = 100mA | - | - | 2.5 | V | |
| dv/dt | V = Rated V | - | 100 | - | V/µs | ||
| CT3020 | - | - | 30 | ||||
| CT3010, CT3021 | Terminal Voltage = 3V | - | - | 15 | |||
| I | Trigger | mA | |||||
| CT3011, CT3022 | I =100mA | - | - | 10 | |||
| CT3012, CT3023 | - | - | 5 | ||||
| I Holding | Current | - | 250 | - | µA | ||
| R Isolation | Resistance | V = 500V | 1x1011 | - | - | Ω | |
| C Isolation | Capacitance | f= 1MHz | - | 0.25 | - | pF |
