产品应用与封装尺寸

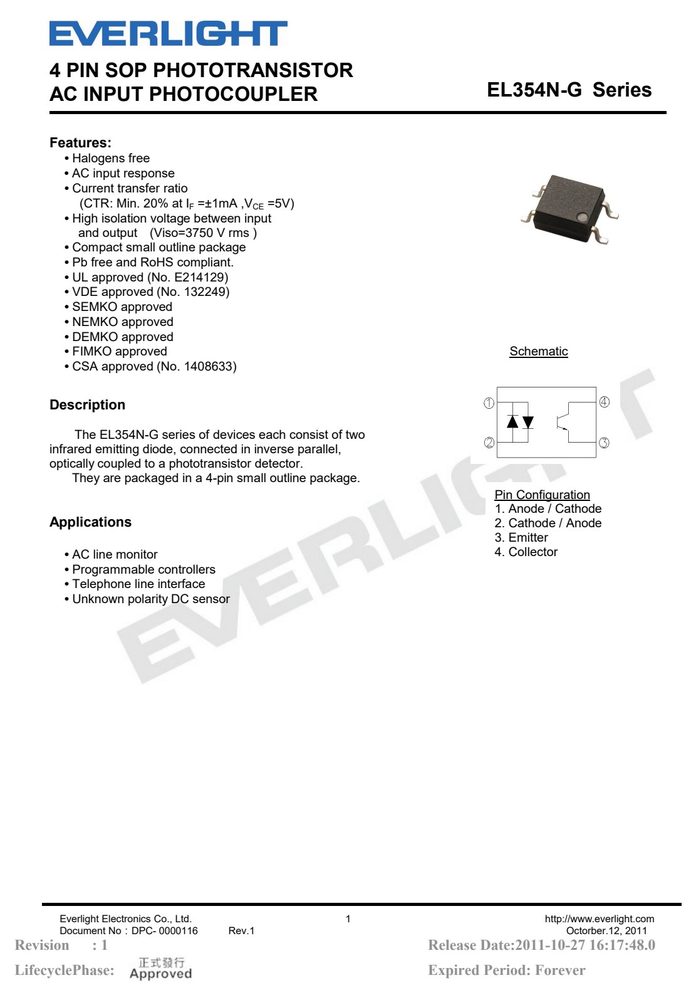

(TA)-VG-appcircuit.jpg)

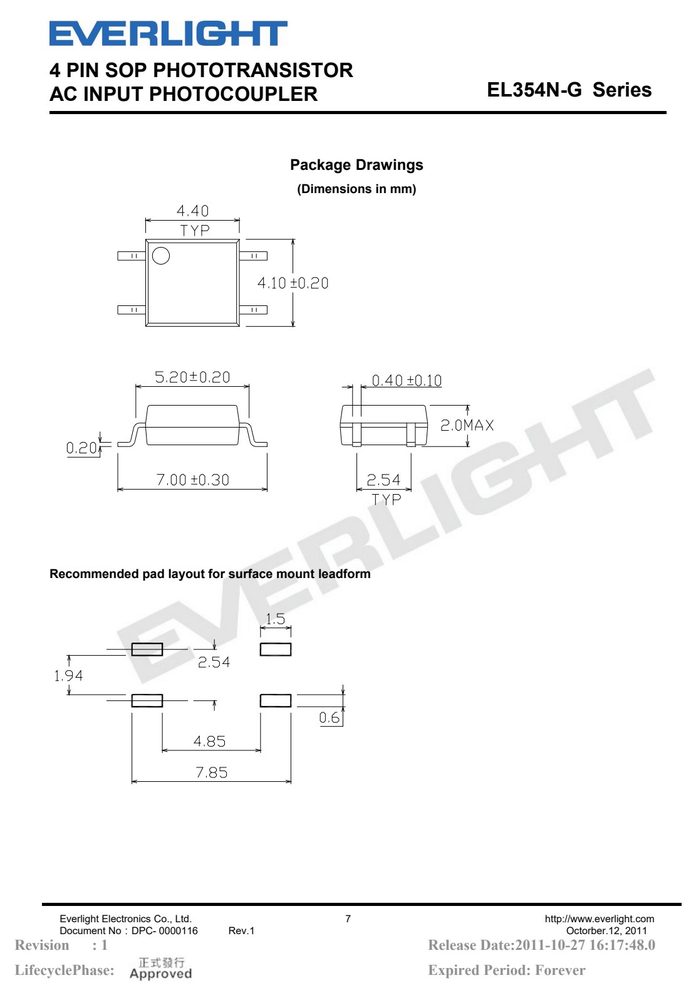

(TA)-VG-package.jpg)
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- ± 20mA
- 正向电流 IF
- ±50
- 集电极-发射极电压 VCEO
- 80
产品特点 Features
- Halogens free
- AC input response
- Current transfer ratio
- (CTR: Min. 20% at IF =±1mA ,VCE =5V)
- High isolation voltage between input
- and output (Viso=3750 V rms )
- Compact small outline package
- Pb free and RoHS compliant.
- UL approved (No. E214129)
- VDE approved (No. 132249)
- SEMKO approved
- NEMKO approved
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Forward current | I | ±50 | mA |
| Peak forward current (t = 10µs) | I P | 1 70 | A |
| No derating required up to T = | 100°C | 150 | mW |
| Derating factor (above T = 80°C) a | 3.7 | mW/℃ | |
| Collector-Emitter voltage | V | 80 | V |
| Emitter-Collector voltage | V | 6 | V |
| Total power dissipation | P | 200 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| 4 PIN SOP PHOTOTRANSISTOR | |||
| EL354N-G | Series | ||
| Operating temperature | T | -55~+100 | °C |
| Storage temperature | T | -55~+125 | °C |
| Soldering temperature | T | 260 | °C |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | Typ.* | 最大 | 单位 | 条件 |
|---|---|---|---|---|---|---|
| Forward voltage | V | - | 1.2 | 1.4 | V I = | ± 20mA |
| Input capacitance | C | - | 50 | 250 | pF V = | 0, f = 1KHz |
| I | - | - | 100 | nA V | = 20V, I =0mA | |
| current | CEO | CE | F | |||
| 80 | - | - | I | =0.1mA | ||
| breakdown voltage | BV CEO | V c | ||||
| BV | 6 | - | - | V I | =0.01mA | |
| breakdown voltage | ECO | E | ||||
| Transfer Characteristics | (T =25°C | unless | specified | otherwise) | ||
| EL354 | 20 | - | 300 |

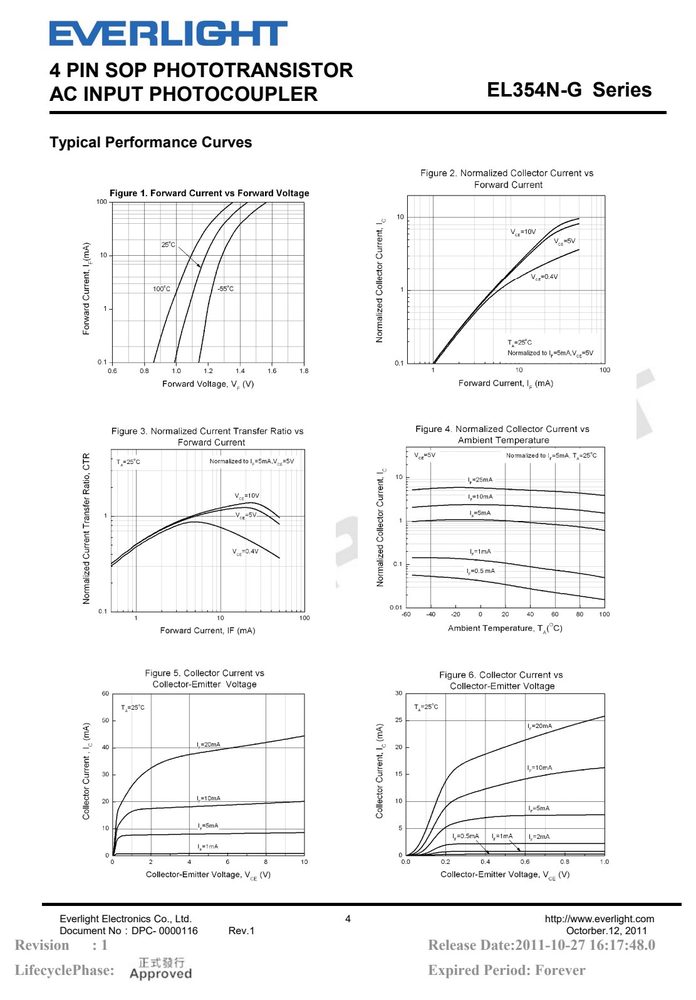

特性曲线（Typical Performance Curves）
(TA)-VG-curves.jpg)
相关 / 可替代型号
以上型号来自规格书与型号命名比对，参数需以各自规格书为准；下单前请与销售确认封装与脚位。
订货信息与供货形式
| 型号 | 型号2 |
|---|---|
| Part | Number |
