关键参数速览
- 正向电压 VF
- 1.4
- 电流传输比 CTR
- 600
- 正向电流 IF
- ±50
- 集电极-发射极电压 VCEO
- 0.3
- 隔离电压 VISO
- 1011

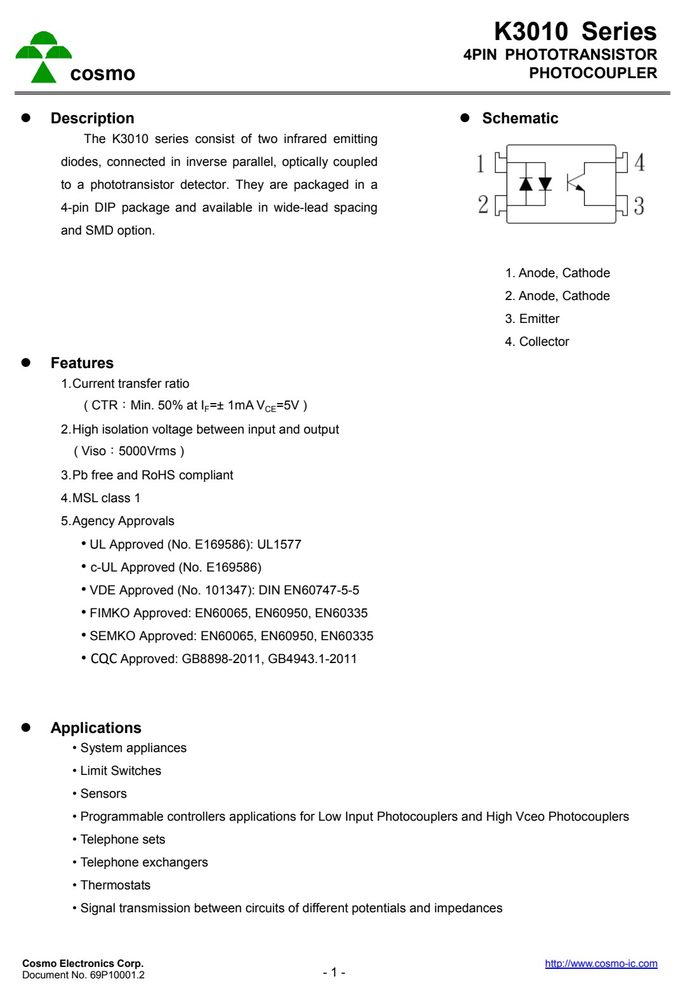

产品特点 Features
- K3010 Series
- 4PIN PHOTOTRANSISTOR cosmo PHOTOCOUPLER
- Outside Dimension Unit : mm
- 1.Dual-in-line type. 2.Surface mount type.
- K30101X K30102X
- 6.50 4.60
- 04.0 0~10°
- 00.3 07.2 1.0±01.0
- 10.00±0.4
- 0.25 1.20 0.50
- 13.00°
- 3.Long creepage distance type 4.Long creepage distance for surface mount type.
- K30103X K30106X
- 10.16
- 7.62 4.60 7.62
- 0~10°
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Forward current | I | ±50 | mA |
| Input Peak forward current | I | ±1 | A |
| Power dissipation | P | 70 | mW |
| Collector-emitter voltage | V | 80 | V |
| Emitter-collector voltage | V | 6 | V |
| Collector current | I | 50 | mA |
| Collector power dissipation | P | 150 | mW |
| Total power dissipation | P | 200 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 1.Dual-in-line | 型号 | 2.Surface | mount | 型号2 |
|---|---|---|---|---|
| K3010 Series | ||||
| 4PIN | PHOTOTRANSISTOR | |||
| Outside Dimension | Unit : mm | |||
| 1.Dual-in-line | type. | 2.Surface | mount | type. |
| K30101X | K30102X | |||
| 3.Long | creepage distance type | 4.Long | creepage | distance |
| for surface | mount type. | |||
| K30103X | K30106X 0~10° | |||
| 0.25 | 00.3 07.2 3010 | 52.0 11.80 +0.2 -0.5 | 2.54 | |
| YWW | Y: Year code / WW: | Week code |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| Forward voltage | V I | =±20mA | - | 1.2 | 1.4 | V |
| Input Peak forward voltage | V I | =±0.5A | - | - | 3.0 | V |
| Terminal capacitance | C V=0, | f=1KHz | - | 30 | - | pF |
| Output Collector dark current | I V | =20V | - | - | 0.1 | μA |
| Current transfer ratio | CTR I | =±1mA, V =5V | 50 | - | 600 | % |
| Collector-emitter | saturation V I | =±20mA, I =1mA | - | 0.1 | 0.3 | V |
| Isolation resistance | R DC500V | 5x1010 | 1011 | - | Ω | |
| charac- Floating capacitance | C V=0, | f=1MHz | - | 0.6 | 1.0 | pF |
| Cut-off frequency | f V | =5V, I =2mA, R | =100Ω - | 80 | - | KHz |
| Response time (Rise) | t | - | 5 | 20 | μs | |
| Response time (Fall) | t | - | 4 | 20 | μs |
