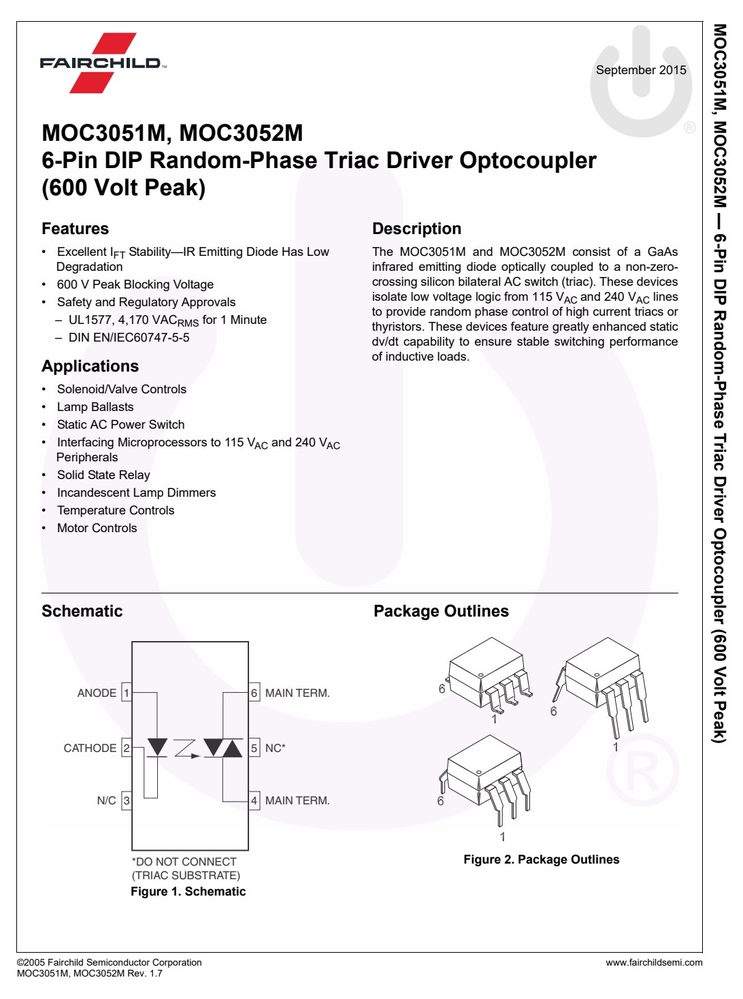

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 3 | V | |
| 4 | MAIN | |
| 5 | NC | |
| 6 | MAIN |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电压 VF
- 1.50
- 正向电流 IF
- 60
- 工作温度 TA
- -40 to +85
产品特点 Features
- 6-Pin
- Excellent I Stability—IR Emitting Diode Has Low The MOC3051M and MOC3052M consist of a GaAs
- Degradation infrared emitting diode optically coupled to a non-zero-
- 600 V Peak Blocking Voltage crossing silicon bilateral AC switch (triac). These devices DIP isolate low voltage logic from 115 V and 240 V lines
- DIN EN/IEC60747-5-5
- MOC3051M,
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 符号 | 参数 | 值 | 单位 |
|---|---|---|---|
| MOC3052M | |||
| T Storage | Temperature | -40 to +150 | °C |
| T Operating | Temperature | -40 to +85 | °C |
| T Junction | Temperature Range | -40 to +100 | °C |
| T Lead Solder | Temperature | 260 for 10 seconds | °C 6-Pin |
| Total Device | Power Dissipation at 25°C Ambient | 330 | mW |
| Derate Above | 25°C | 4.4 | mW/°C DIP |
| I Continuous | Forward Current | 60 | mA |
| Total Power | Dissipation at 25°C Ambient | 100 | mW |
| Derate Above | 25°C | 1.33 | mW/°C |
| V Off-State Output | Terminal Voltage | 600 | V |
| I Peak Non-Repetitive | Surge Current (Single Cycle 60 Hz Sine | Wave) 1 | A |
| Total Power | Dissipation at 25°C Ambient | 300 | mW |
| Derate Above | 25°C | 4 | mW/°C (600 |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 符号 | 参数 | 值 | 单位 |
|---|---|---|---|
| MOC3052M | |||
| Installation Classifications | per DIN VDE < 150 V RMS | I–IV | |
| 0110/1.89 Table 1, For Rated | Mains Voltage < 300 V | I–IV | |
| Pollution Degree (DIN VDE | 0110/1.89) | 2 | |
| Comparative Tracking Index | 175 | — 6-Pin | |
| Input-to-Output | Test Voltage, Method A, V x 1.6 = V | , | |
| IORM | PR 1360 | V | |
| Type and | Sample Test with t = 10 s, Partial Discharge < | 5 pC | peak |
| m | Random-Phase | ||
| Input-to-Output | Test Voltage, Method B, V x 1.875 = | V , | |
| IORM | PR 1594 | V | |
| 100% Production | Test with t = 1 s, Partial Discharge < 5 | pC | peak |
| V Highest Allowable | Over-Voltage | 6000 | V |
| External | Creepage | ≥ 7 | mm |
| External | Clearance | ≥ 7 | mm |
| External | Clearance (for Option TV, 0.4" Lead Spacing) | ≥ 10 | mm |
| R Insulation | Resistance at T , V = 500 V | > 109 | Ω Driver (600 MOC3051M, |
电气特性 Electrical Characteristics（TA = 25°C）
| 符号 | 参数 | 测试条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| MOC3052M | ||||||
| V Input | Forward Voltage | I = 10 mA | 1.18 | 1.50 | V | |
| I Peak | Blocking Current, Either | Direction V = 600 V, I = 0(1) | 10 | 100 | nA 6-Pin | |
| V Peak | On-State Voltage, Either | Direction I = 100 mA peak, I = | 0 | 1.7 | 2.5 | V |
| dv/dt Critical | Rate of Rise of Off-State | Voltage I = 0 (Figure 13, at 400V) | 1000 | V/µs | ||
| LED | Trigger Current, Main | Terminal MOC3051M | 15 | |||
| FT Either | Direction Voltage | = 3 V(2) MOC3052M | 10 | |||
| I | All | 220 | µA |

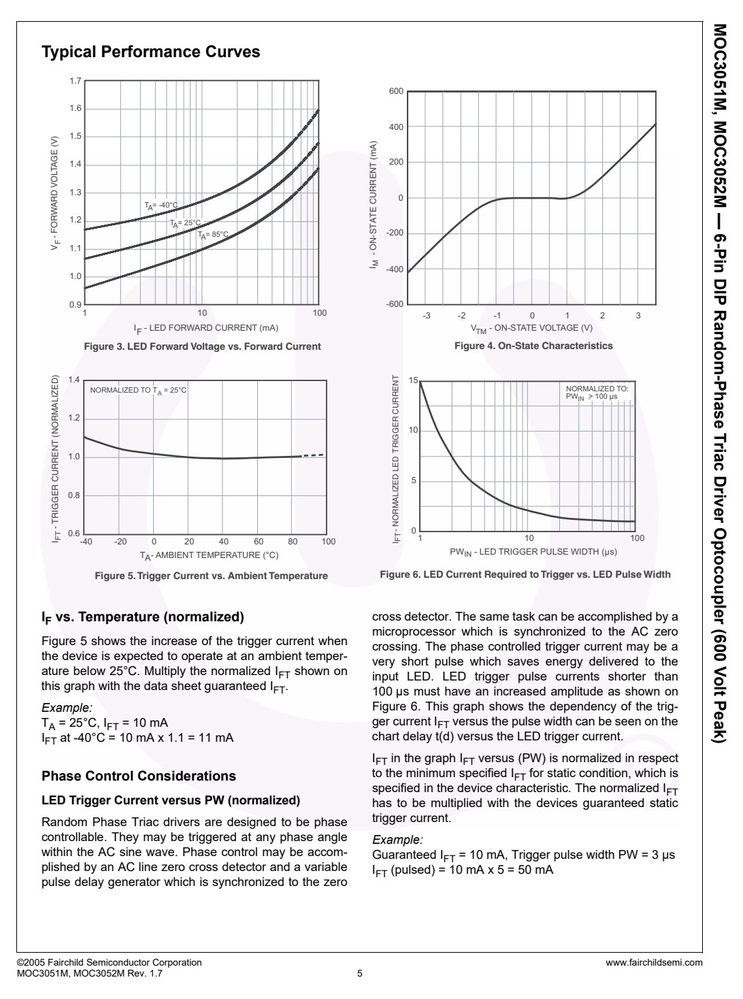

特性曲线（Typical Performance Curves）
相关 / 可替代型号
以上型号来自规格书与型号命名比对，参数需以各自规格书为准；下单前请与销售确认封装与脚位。
