产品实拍图

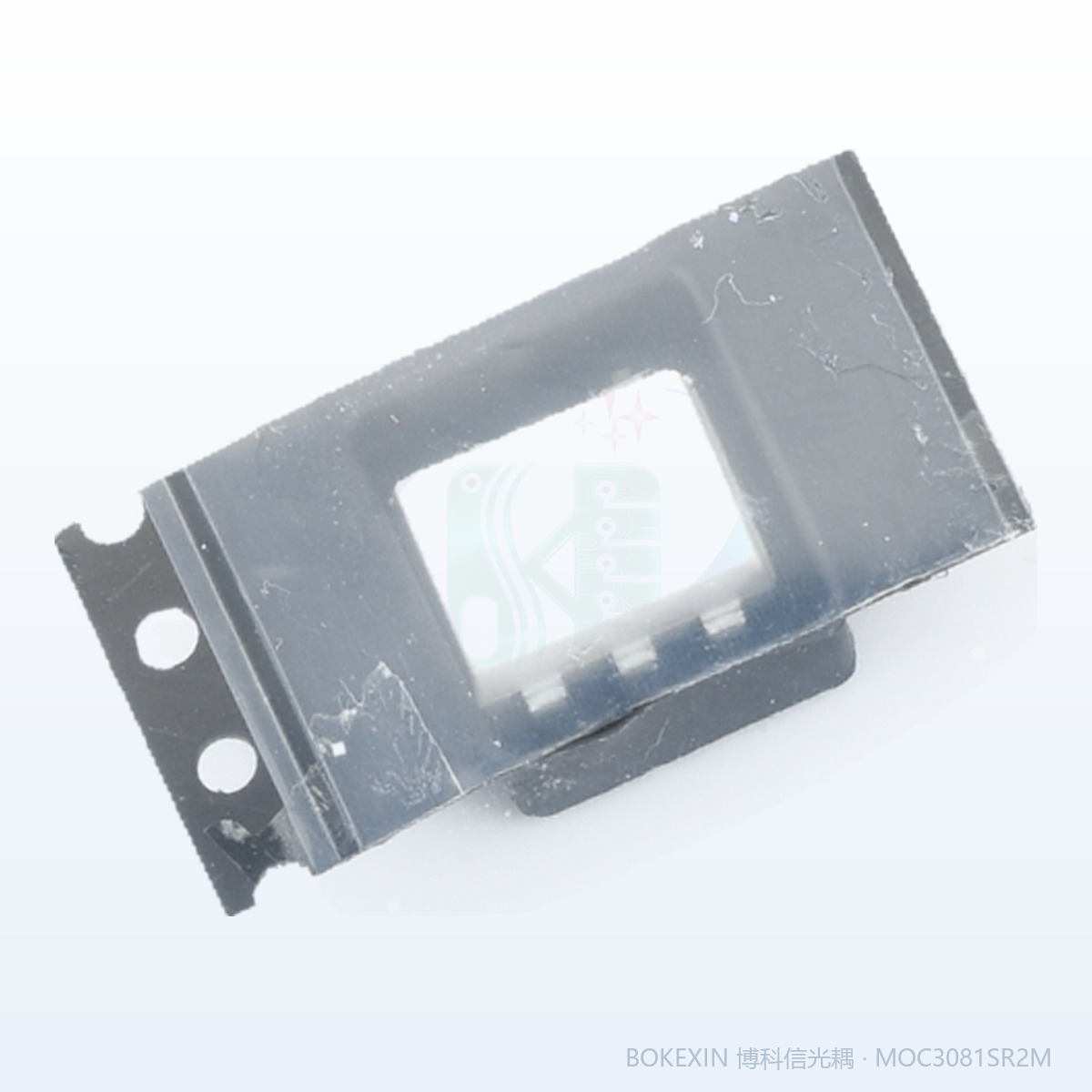

本页为博科信现货实拍（器件丝印 见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

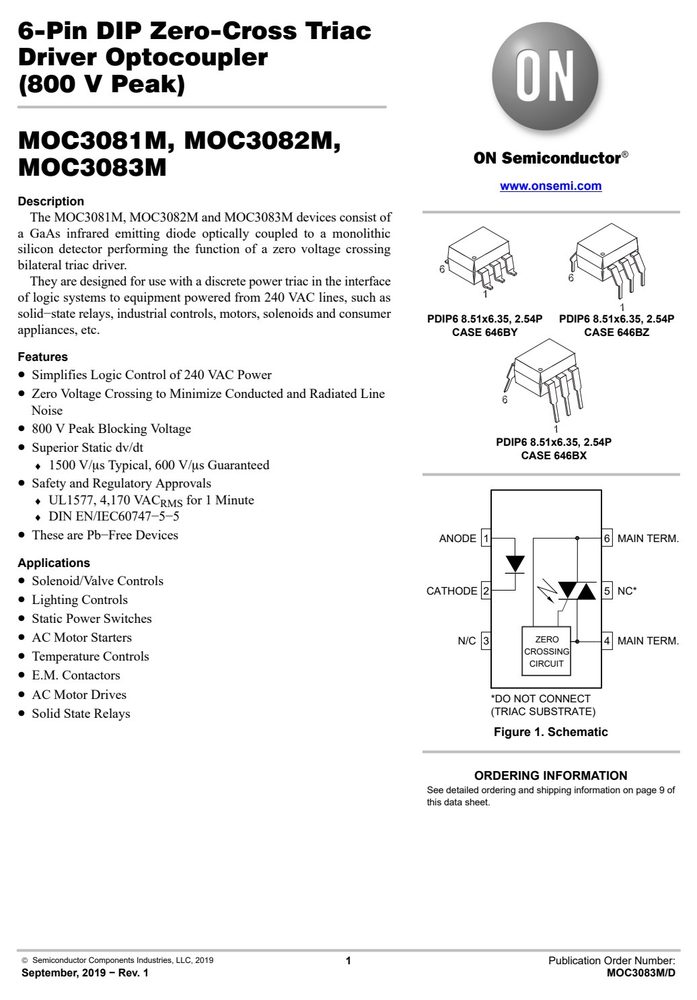

产品应用与封装尺寸

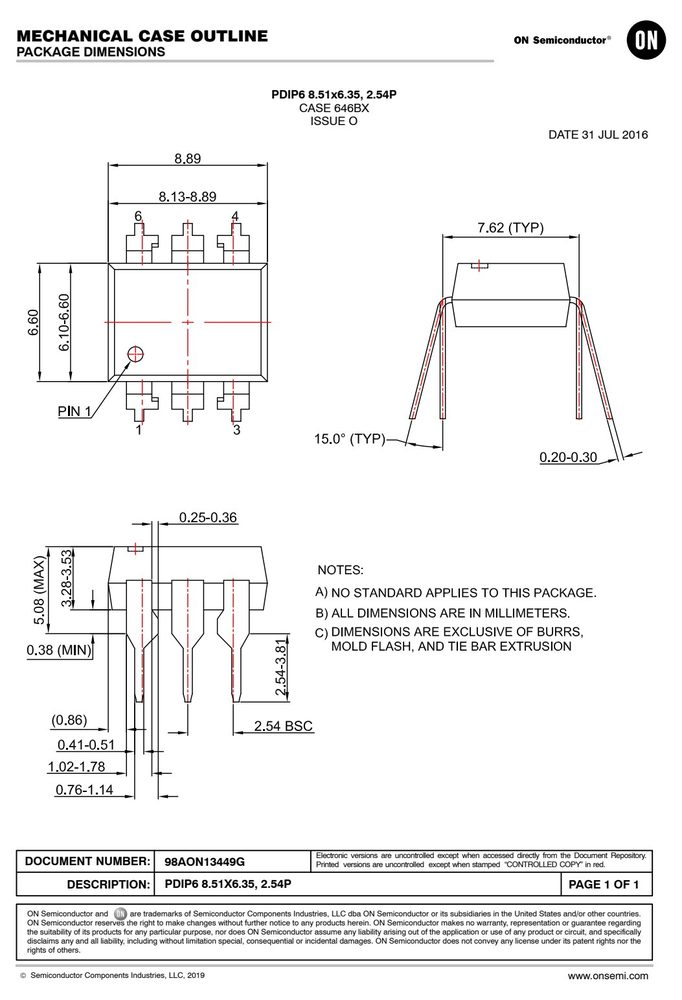

图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.5
- 正向电流 IF
- 500
- 工作温度 TA
- −40 to 85
产品特点 Features
- Simplifies Logic Control of 240 VAC Power
- Zero Voltage Crossing to Minimize Conducted and Radiated Line
- Noise
- 800 V Peak Blocking Voltage
- PDIP6 8.51x6.35, 2.54P
- Superior Static dv/dt
- CASE 646BX
- ♦ 1500 V/kΩs Typical, 600 V/kΩs Guaranteed
- MOC3081M, MOC3082M, MOC3083M
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 符号 | 参数 | 值 | 单位 |
|---|---|---|---|
| T Storage | Temperature | −40 to 150 | °C |
| T Operating | Temperature | −40 to 85 | °C |
| T Junction | Temperature Range | −40 to 100 | °C |
| T Lead Solder | Temperature | 260 for 10 seconds | °C |
| Total Device | Power Dissipation at 25°C Ambient | 250 | mW |
| Derate Above | 25°C | 2.94 | mW/°C |
| I Continuous | Forward Current | 60 | mA |
| Total Power | Dissipation at 25°C Ambient | 120 | mW |
| Derate Above | 25°C | 1.41 | mW/°C |
| V Off−State | Output Terminal Voltage | 800 | V |
| I Peak | Non−Repetitive Surge Current | 1 | A |
| (Single Cycle | 60 Hz Sine Wave) | ||
| Total Power | Dissipation at 25°C Ambient | 150 | mW |
| Derate Above | 25°C | 1.76 | mW/°C |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 符号 | 参数 | 值 | 单位 |
|---|---|---|---|
| the safety ratings shall be ensured | by means of protective circuits. < 150 V | I–IV | |
| Installation Classifications per | DIN VDE 0110/1.89 Table 1, For RMS | ||
| Rated Mains Voltage | < 300 V | I–IV | |
| Pollution Degree (DIN VDE | 0110/1.89) | 2 | |
| Comparative Tracking Index | 175 | ||
| PR Input−to−Output | Test Voltage, Method A, V x 1.6 = V , Type and | Sample Test | |
| IORM PR | 1360 | Vpeak | |
| with t = 10 s, | Partial Discharge < 5 pC | ||
| Input−to−Output | Test Voltage, Method B, V x 1.875 = V , 100% | Production Test | |
| IORM PR | 1594 | Vpeak | |
| with t = 1 s, Partial | Discharge < 5 pC | ||
| V Highest Allowable | Over−Voltage | 6000 | Vpeak |
| External Creepage | ≥ 7 | mm | |
| External Clearance | ≥ 7 | mm | |
| External Clearance | (for Option TV, 0.4” Lead Spacing) | ≥ 10 | mm |
| R Insulation Resistance | at T , V = 500 V | > 109 | µ |
| MOC3081M, MOC3082M, | MOC3083M |
电气特性 Electrical Characteristics（TA = 25°C）
| 符号 | 参数 | 测试条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| V Input Forward | Voltage | I = 30 mA | 1.3 | 1.5 | V | |
| I DRM1 Peak Blocking | Current, Either Direction | V DRM = 800 V, I F = 0(1) | 10 | 500 | nA | |
| dv/dt Critical Rate | of Rise of Off−State Voltage | I = 0 (Figure 10) (2) | 600 | 1500 | V/kΩs | |
| I FT LED Trigger | Current (Rated I FT ) Main | Terminal MOC3081M MOC3082M MOC3083M | 15 10 5 | mA | ||
| V TM Peak | On−State Voltage, I TM = | 100 mA peak, All | 1.8 | 3.0 | V | |
| I Holding | Current, Either Direction | All | 500 | kΩA | ||
| F | FT | F | FT | |||
| V Inhibit | Voltage (MT1−MT2 voltage above which | I = Rated I | 12 | 20 | V | |
| I Leakage in | Inhibited State | I = Rated I , V = 800 | V, | 2 | mA |

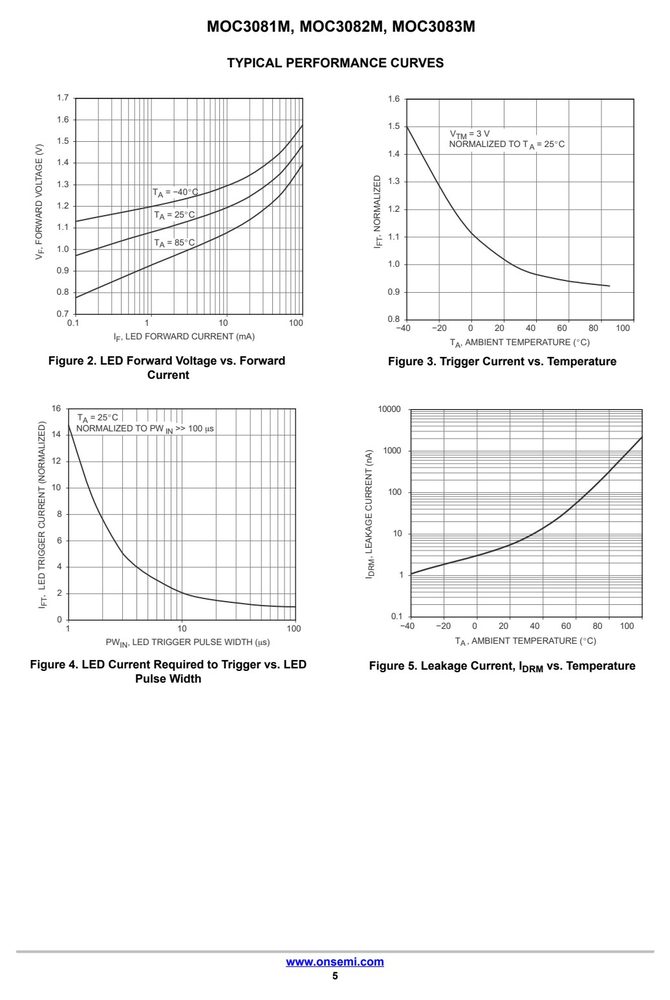

特性曲线（Typical Performance Curves）
