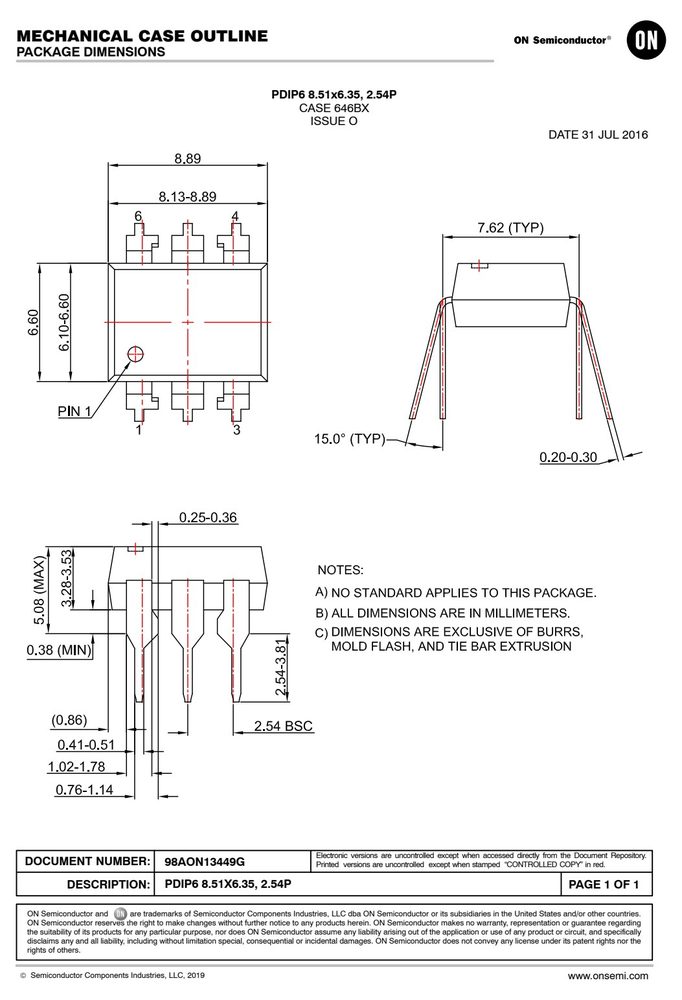

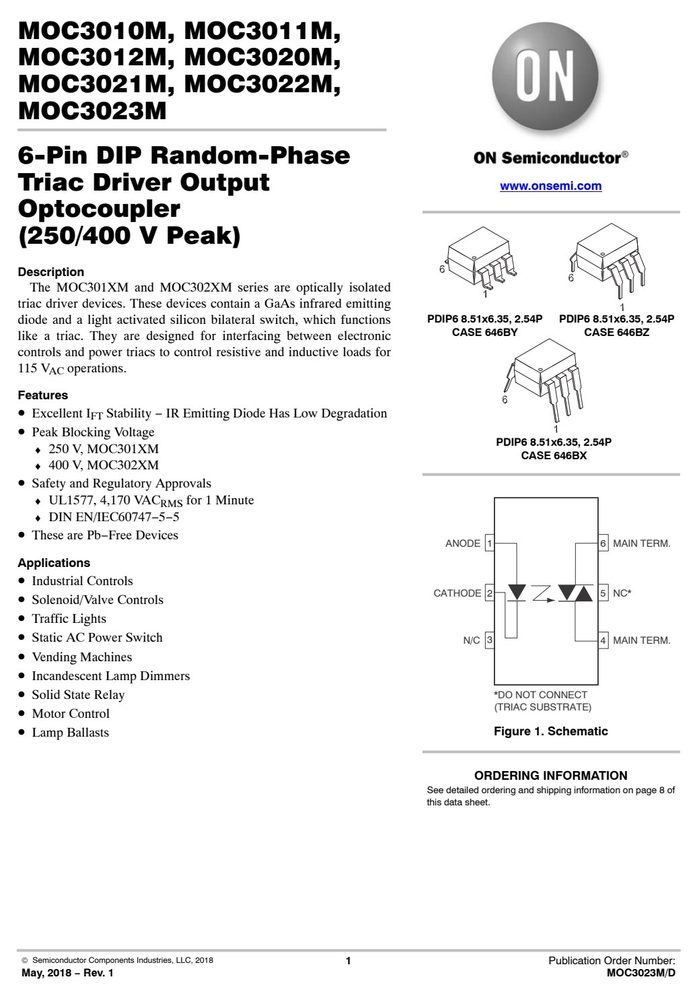

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 3 | V | |
| 4 | MAIN | |
| 5 | NC | |
| 6 | MAIN |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电压 VF
- 1.50
- 正向电流 IF
- 100
- 工作温度 TA
- −40 to 85
产品特点 Features
- Excellent I Stability − IR Emitting Diode Has Low Degradation
- Peak Blocking Voltage
- PDIP6 8.51x6.35, 2.54P
- ♦ 250 V, MOC301XM
- CASE 646BX
- ♦ 400 V, MOC302XM
- MOC3010M, MOC3011M, MOC3012M, MOC3020M, MOC3021M, MOC3022M, MOC3023M
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 符号 | 参数 | 器件 | 值 | 单位 |
|---|---|---|---|---|
| T Storage | Temperature | All | −40 to 150 | °C |
| T Operating | Temperature | All | −40 to 85 | °C |
| T Junction | Temperature Range | All | −40 to 100 | °C |
| T Lead Solder | Temperature | All | 260 for 10 seconds | °C |
| Total Device | Power Dissipation at 25°C Ambient | 330 | mW | |
| Derate | Above 25°C | 4.4 | mW/°C | |
| I Continuous | Forward Current | All | 60 | mA |
| Total Power | Dissipation at 25°C Ambient | 100 | mW | |
| Derate | Above 25°C | 1.33 | mW/°C | |
| V DRM Off−State | Output Terminal Voltage | MOC3010M, MOC3011M, MOC3012M | 250 | V |
| MOC3020M, MOC3021M, | 400 | |||
| MOC3022M, MOC3023M | ||||
| I Peak | Repetitive Surge Current (PW = 100 µs, 120 | pps) All | 1 | A |
| Total Power | Dissipation at 25°C Ambient | 300 | mW | |
| Derate | Above 25°C | 4 | mW/°C |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 符号 | 参数 | 值 | 单位 |
|---|---|---|---|
| the safety ratings shall be ensured | by means of protective circuits. < 150 V | I–IV | |
| Installation Classifications per | DIN VDE 0110/1.89 Table 1, For | ||
| Rated Mains Voltage | < 300 V | I–IV | |
| Pollution Degree (DIN VDE | 0110/1.89) | 2 | |
| Comparative Tracking Index | 175 | ||
| PR Input−to−Output | Test Voltage, Method A, V x 1.6 = V , Type and | Sample Test | |
| IORM PR | 1275 | Vpeak | |
| with t = 10 s, | Partial Discharge < 5 pC | ||
| Input−to−Output | Test Voltage, Method B, V x 1.875 = V , 100% | Production Test | |
| IORM PR | 1594 | Vpeak | |
| with t = 1 s, Partial | Discharge < 5 pC | ||
| V Highest Allowable | Over−Voltage | 6000 | Vpeak |
| External Creepage | ≥ 7 | mm | |
| External Clearance | ≥ 7 | mm | |
| External Clearance | (for Option TV, 0.4” Lead Spacing) | ≥ 10 | mm |
| R Insulation Resistance | at T , V = 500 V | > 109 | kΩ |
电气特性 Electrical Characteristics（TA = 25°C）
| 符号 | 参数 | 测试条件 | 器件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|---|
| V Input | Forward Voltage | I = 10 mA | All | 1.15 | 1.50 | V | |
| I DRM Peak | Blocking Current, Either Direction | Rated V DRM , I F = 0(1) | All | 10 | 100 | nA | |
| V Peak | On−State Voltage, Either Direction | I = 100 mA peak, I = 0 | All | 1.8 | 3.0 | V | |
| I FT LED | Trigger Current | Voltage = 3 V(2) | MOC3020M | 30 | mA | ||
| I Holding | Current, Either Direction | All | 100 | µA | |||
| F | FT | F |

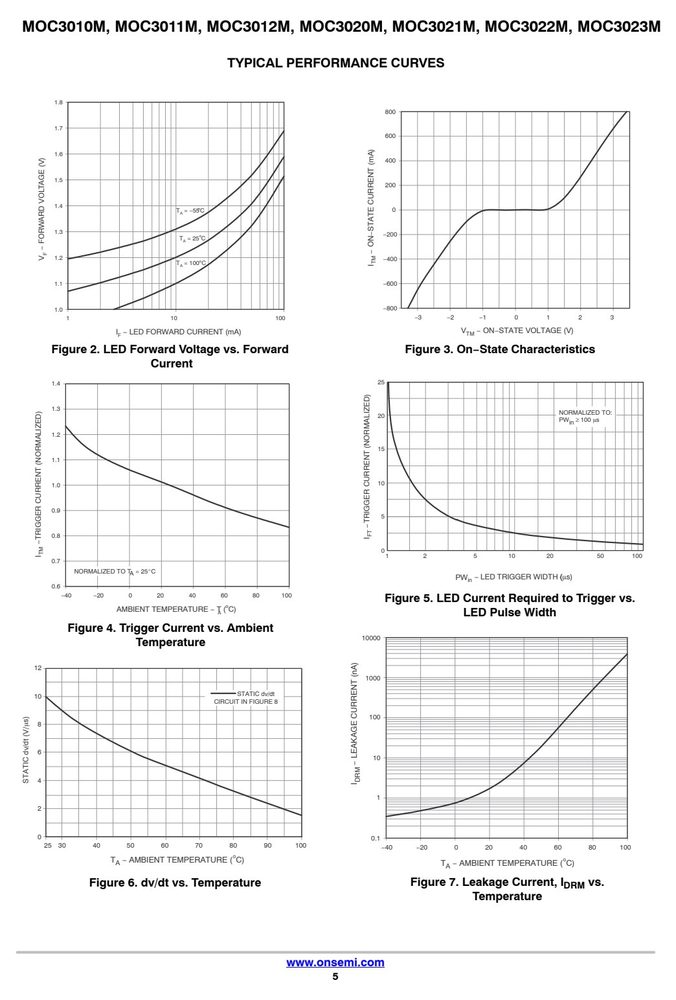

特性曲线（Typical Performance Curves）
相关 / 可替代型号
以上型号来自规格书与型号命名比对，参数需以各自规格书为准；下单前请与销售确认封装与脚位。
