Name: ONSEMI MOC3023SR2M
Brand: ONSEMI
Availability: InStock

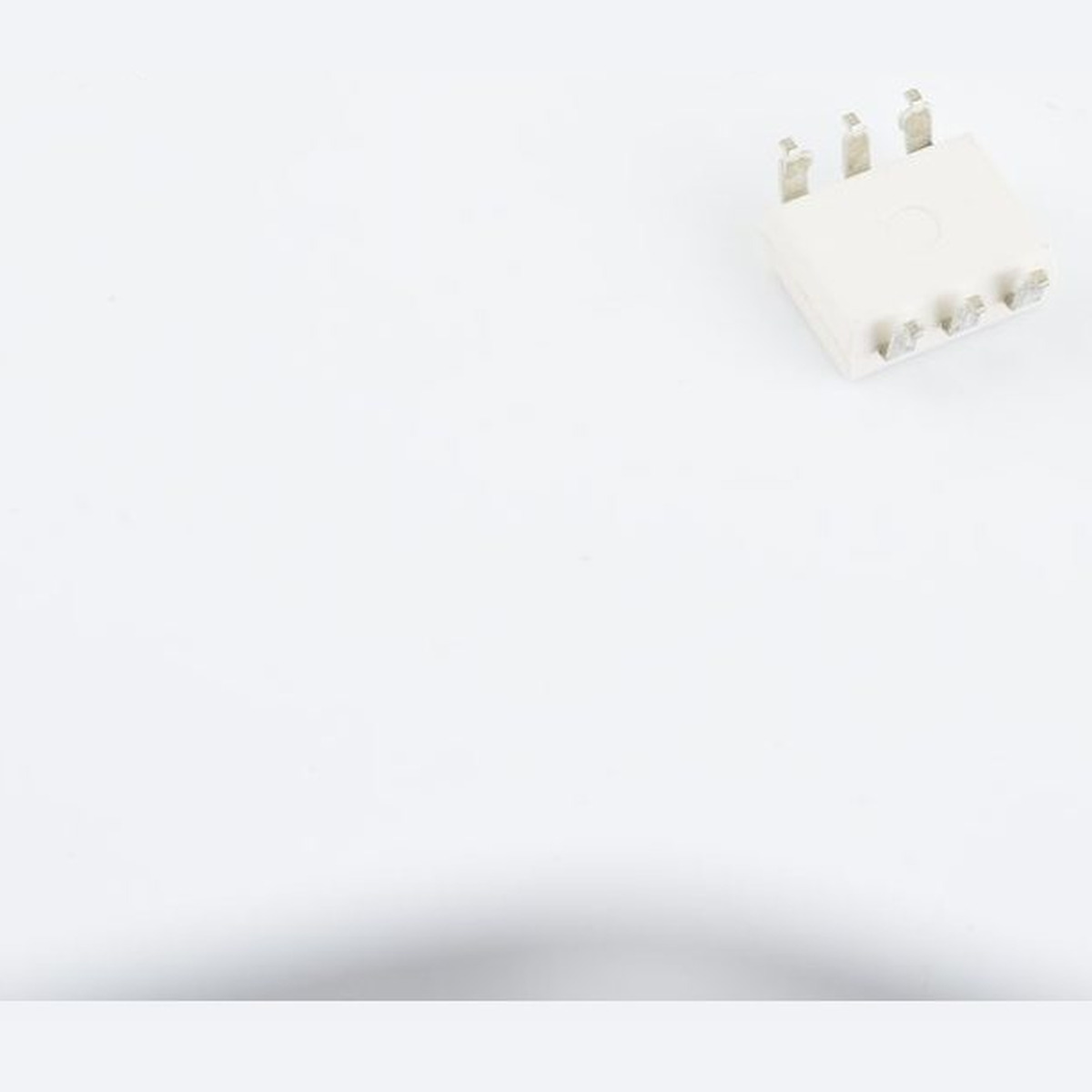

产品实拍图

实拍图统一为 1:1 浅底画幅，仅作外观参考；丝印与批次以实物及规格书为准。需要最新批次原图请联系销售；点击图片可放大。

关键参数速览

Excellent I FT Stability − IR Emitting Diode Has Low Degradation CATHODE 2 5 NC*
Peak Blocking Voltage
♦ 250 V, MOC301XM
♦ 400 V, MOC302XM N/C 3 4 MAIN TERM.
MOC3010M, MOC3011M, MOC3012M, MOC3020M, MOC3021M, MOC3022M, MOC3023M

超过下表数值可能造成器件永久损坏，设计时请留余量。

符号	参数	器件	值	单位
T Storage	Temperature	All	−40 to 125	°C
T Operating	Temperature	All	−40 to 85	°C
T Junction	Temperature Range	All	−40 to 100	°C
T Lead Solder	Temperature	All	260 for 10 seconds	°C
Total Device	Power Dissipation at 25°C Ambient		330	mW
Derate	Above 25°C		4.4	mW/°C
I Continuous	Forward Current	All	60	mA
Total Power	Dissipation at 25°C Ambient		100	mW
Derate	Above 25°C		1.33	mW/°C
V DRM Off−State	Output Terminal Voltage	MOC3010M, MOC3011M, MOC3012M	250	V
		MOC3020M, MOC3021M,	400
		MOC3022M, MOC3023M
I Peak	Repetitive Surge Current (PW = 100 µs, 120	pps) All	1	A
Total Power	Dissipation at 25°C Ambient		300	mW
Derate	Above 25°C		4	mW/°C

数据来源：原厂规格书

符号	参数	值	单位
the safety ratings shall be ensured	by means of protective circuits. < 150 V	I–IV
Installation Classifications per	DIN VDE 0110/1.89 Table 1, For
Rated Mains Voltage	< 300 V	I–IV
Pollution Degree (DIN VDE	0110/1.89)	2
Comparative Tracking Index		175
PR Input−to−Output	Test Voltage, Method A, V x 1.6 = V , Type and	Sample Test
	IORM PR	1275	Vpeak
with t = 10 s,	Partial Discharge < 5 pC
Input−to−Output	Test Voltage, Method B, V x 1.875 = V , 100%	Production Test
	IORM PR	1594	Vpeak
with t = 1 s, Partial	Discharge < 5 pC
V Highest Allowable	Over−Voltage	6000 ≥ 7	Vpeak
External Creepage		≥ 7	mm
External Clearance		≥ 10	mm
External Clearance	(for Option TV, 0.4” Lead Spacing)	≥ 0.5	mm
R Insulation Resistance	at T , V = 500 V	> 109	kΩ

符号	参数	测试条件	器件	最小	典型	最大	单位
V Input	Forward Voltage	I = 10 mA	All		1.15	1.50	V
I DRM Peak	Blocking Current, Either Direction	Rated V DRM , I F = 0(1)	All		10	100	nA
dv/dt Critical	Rate of Rise of Off−State	Volt- Rated V , I = 0	All	1000			V/µs
I FT LED	Trigger Current	Voltage = 3 V(2)	MOC3020M			30	mA
V Peak	On−State Voltage, Either Direc-	I = 100 mA peak,	All		1.8	3.0	V
I Holding	Current, Either Direction		All		100		µA
	F	FT				F

Industrial Controls

规格书为原厂公开资料，点击在新窗口打开下载。
