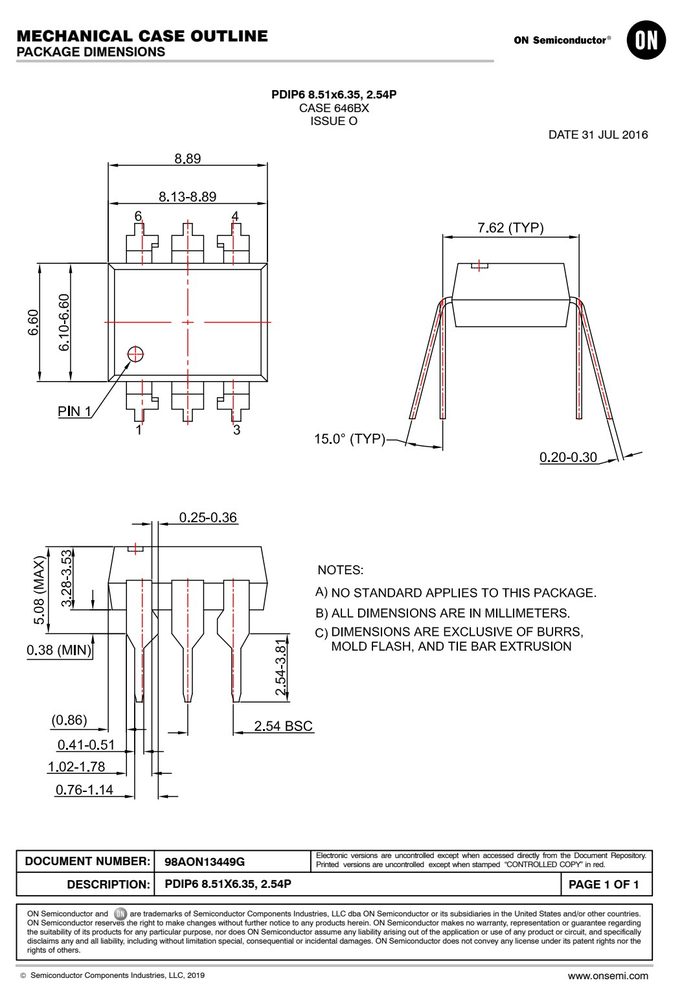

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 1 | A | |
| 4 | MAIN | |
| 5 | NC | |
| 6 | CASE |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电压 VF
- 1.5
- 正向电流 IF
- 60
- 工作温度 TA
- −40 to +85

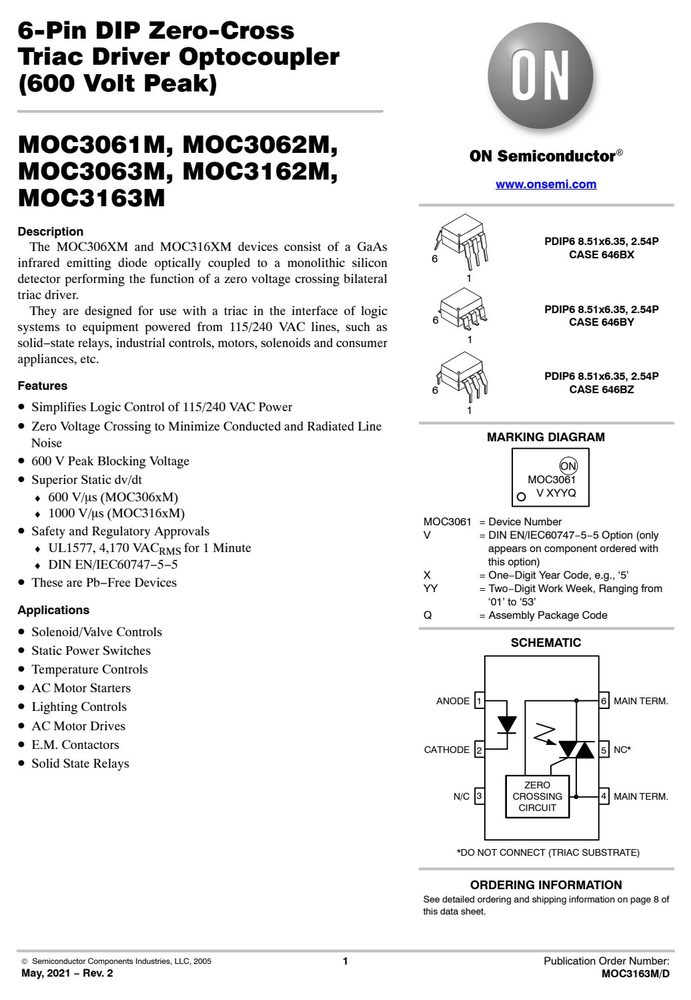

产品特点 Features
- 6 CASE 646BZ
- Simplifies Logic Control of 115/240 VAC Power
- Zero Voltage Crossing to Minimize Conducted and Radiated Line
- MARKING DIAGRAM
- Noise
- 600 V Peak Blocking Voltage
- Superior Static dv/dt MOC3061
- ♦ 600 V/ kΩ s (MOC306xM) V XYYQ
- ♦ 1000 V/ kΩ s (MOC316xM)
- MOC3061 = Device Number
- MOC3061M, MOC3062M, MOC3063M, MOC3162M, MOC3163M
- Parameter Characteristics
- Installation Classifications per DIN VDE 0110/1.89 Table 1, For Rated Mains Voltage <150 V I–IV
- <300 V I–IV
- Pollution Degree (DIN VDE 0110/1.89) 2
- Comparative Tracking Index 175
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 符号 | 参数 | 器件 | 值 | 单位 |
|---|---|---|---|---|
| T Storage | Temperature | All | −40 to +150 | °C |
| T Operating | Temperature | All | −40 to +85 | °C |
| T Junction | Temperature Range | All | −40 to +100 | °C |
| T Lead Solder | Temperature | All | 260 for 10 seconds | °C |
| P Total Device | Power Dissipation at 25°C Ambient | All | 250 | mW |
| Derate Above | 25°C | 2.94 | mW/°C | |
| I Continuous | Forward Current | All | 60 | mA |
| P Total Power | Dissipation at 25°C Ambient | All | 120 | mW |
| Derate Above | 25°C | 1.41 | mW/°C | |
| V Off−State Output | Terminal Voltage | All | 600 | V |
| I Peak Non−Repetitive | Surge Current (Single Cycle 60 Hz Sine | Wave) All | 1 | A |
| I Peak Repetitive | On−State Current | All | 100 | mA |
| P Total Power | Dissipation at 25°C Ambient | All | 150 | mW |
| Derate Above | 25°C | 1.76 | mW/°C |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 符号 | 参数 | 值 | 单位 |
|---|---|---|---|
| V Highest Allowable | Over−Voltage | 6000 | V |
| External Creepage | ≥7 | mm | |
| External Clearance | ≥7 | mm | |
| External Clearance | (for Option TV, 0.4” Lead Spacing) | ≥10 | mm |
| R Insulation Resistance | at T , V = 500 V | >109 | µ |
电气特性 Electrical Characteristics（TA = 25°C）
| 符号 | 参数 | 测试条件 | 器件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|---|
| V Input | Forward Voltage | I = 30 mA | All | − | 1.3 | 1.5 | V |
| I Peak | Blocking Current, | V = 600 V, I = 0 (Note 1) | MOC306XM | − | 10 | 500 | nA |
| MOC316XM | − | 10 | 100 | ||||
| dv/dt | Critical Rate of Rise of | I = 0 (Note 2) | MOC306XM | 600 | 1500 | − | V/kΩs |
| MOC316XM | 1000 | − | − | ||||
| I LED | Trigger Current | Main Terminal Voltage = 3 V | MOC3061M | − | − | 15 | mA |
| MOC3062M | − | − | 10 | ||||
| MOC3063M | − | − | 5 | ||||
| V Peak | On−State Voltage, | I = 100 mA peak, I = rated I | All | − | 1.8 | 3.0 | V |
| I | Holding Current, Either | All | − | 500 | − | kΩA | |
| V Inhibit | Voltage (MT1−MT2 | I = rated I | MOC3061M | − | 12 | 20 | V |
| MOC3162M | − | 12 | 15 | V | |||
| I | Leakage in Inhibited State | I = rated I , V = 600 V, off−state | All | − | − | 2 | mA |

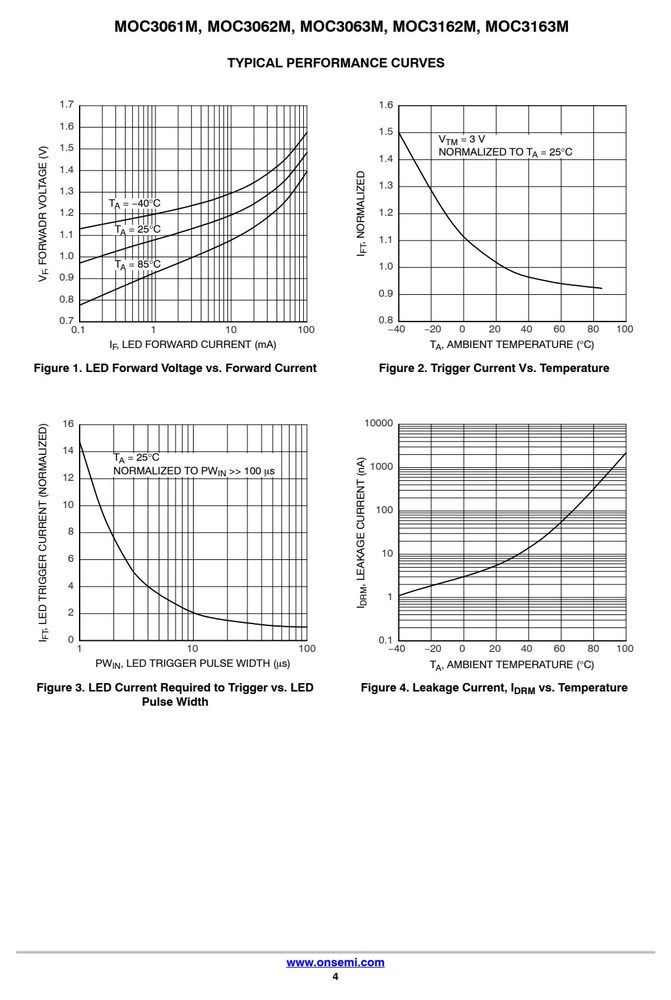

特性曲线（Typical Performance Curves）
