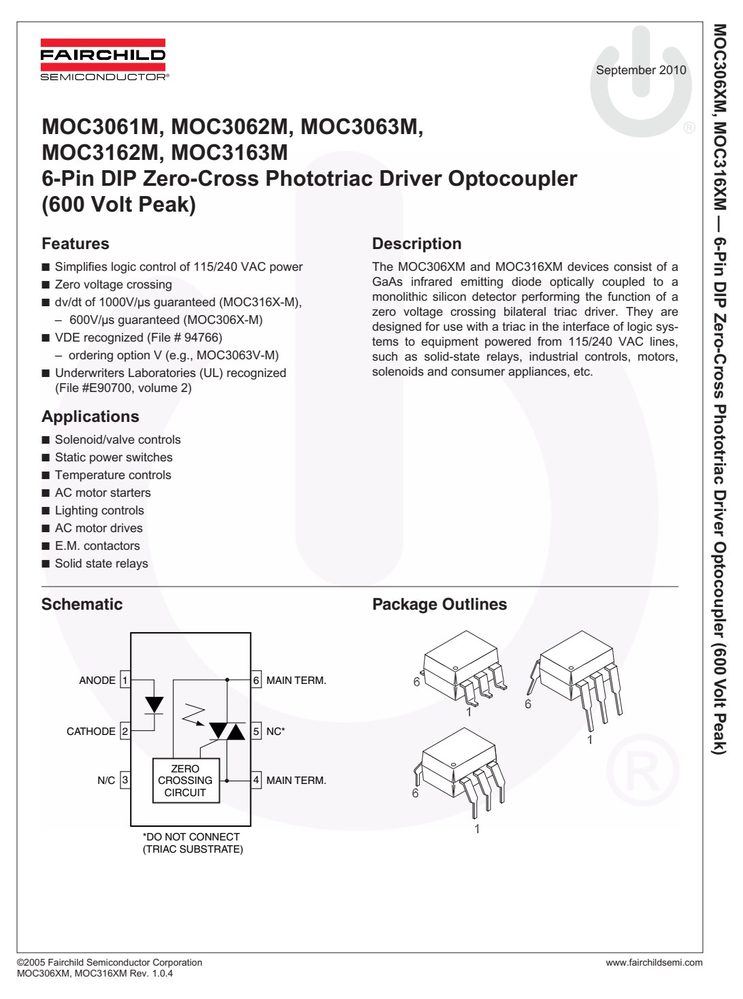

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.5
- 正向电流 IF
- 60
- 隔离电压 VISO
- 7500
- 工作温度 TA
- -40 to +85
产品特点 Features
- Simplifies logic control of 115/240 VAC power The MOC306XM and MOC316XM devices consist of a
- 600V/µs guaranteed (MOC306X-M) Zero-Cross designed for use with a triac in the interface of logic sys-
- VDE recognized (File # 94766) tems to equipment powered from 115/240 VAC lines, ordering option V (e.g., MOC3063V-M) such as solid-state relays, industrial controls, motors,
- Underwriters Laboratories (UL) recognized solenoids and consumer appliances, etc.
- (File #E90700, volume 2)
- Phototriac
- MOC306XM,
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 符号 | 参数 | 器件 | 值 | 单位 |
|---|---|---|---|---|
| (T = 25°C unless | otherwise noted) | MOC316XM | ||
| T Storage | Temperature | All | -40 to +150 | °C |
| T Operating | Temperature | All | -40 to +85 | °C |
| T Lead Solder | Temperature | All | 260 for 10 sec | °C — |
| T Junction | Temperature Range | All | -40 to +100 | °C 6-Pin |
| V Isolation | Surge Voltage(1) | All | 7500 | Vac(pk) |
| (peak AC | voltage, 60Hz, 1 sec. duration) | |||
| P Total Device | Power Dissipation @ 25°C Ambient | All | 250 | mW |
| Derate | above 25°C | 2.94 | mW/°C Zero-Cross | |
| I Continuous | Forward Current | All | 60 | mA |
| P Total Power | Dissipation @ 25°C Ambient | All | 120 | mW |
| Derate | above 25°C | 1.41 | mW/°C | |
| V Off-State | Output Terminal Voltage | All | 600 | V |
| I Peak | Repetitive Surge Current | All | 1 | A |
| (PW = | 100µs, 120pps) | Driver | ||
| P Total Power | Dissipation @ 25°C Ambient | All | 150 | mW |
| Derate | above 25°C | 1.76 | mW/°C (600 |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 符号 | 特性 | 测试条件 | 器件 | 最小 | Typ.* | 最大 | 单位 |
|---|---|---|---|---|---|---|---|
| V | Isolation Voltage | f = 60 Hz, t = 1 sec | All | 7500 | V | ||
| 2. Test voltage | must be applied | within dv/dt rating. | |||||
| I lies between | max I (15mA | for MOC3061M, 10mA for | MOC3062M | & MOC3162M, | 5mA for | MOC3063M | & |
电气特性 Electrical Characteristics（TA = 25°C）
| 符号 | 参数 | 测试条件 | 器件 | 最小 | Typ.* | 最大 | 单位 |
|---|---|---|---|---|---|---|---|
| EMITTER | MOC316XM | ||||||
| V Input | Forward Voltage | I = 30mA | All | 1.3 | 1.5 | V | |
| I Peak | Blocking Current, | V = 600V, I = 0(2) | MOC316XM | 10 | 100 | ||
| Either | Direction | nA — | |||||
| MOC306XM | 10 | 500 | 6-Pin | ||||
| dv/dt Critical | Rate of Rise of | I = 0 (Figure 9)(3) | MOC306XM MOC316XM | 600 1000 | 1500 | ||
| I LED | Trigger Current | Main Terminal | MOC3061M | 15 | mA | ||
| FT | MOC3062M/ MOC3063M/ | 10 5 | |||||
| V Peak | On-State Voltage, | I = 100 mA peak, | All | 1.8 | 3 | V | |
| I | Holding Current, | All | 500 | µA | |||
| Zero Crossing | Characteristics | Optocoupler | |||||
| V | Inhibit Voltage (MT1-MT2 | I = Rated I | MOC3061M/2M/3M | 12 | 20 | V | |
| MOC3162M/3M | 12 | 15 | |||||
| I | Leakage in Inhibited State | I = Rated I , | Al | 2 | mA | ||
| DRM2 | F FT | (600 |

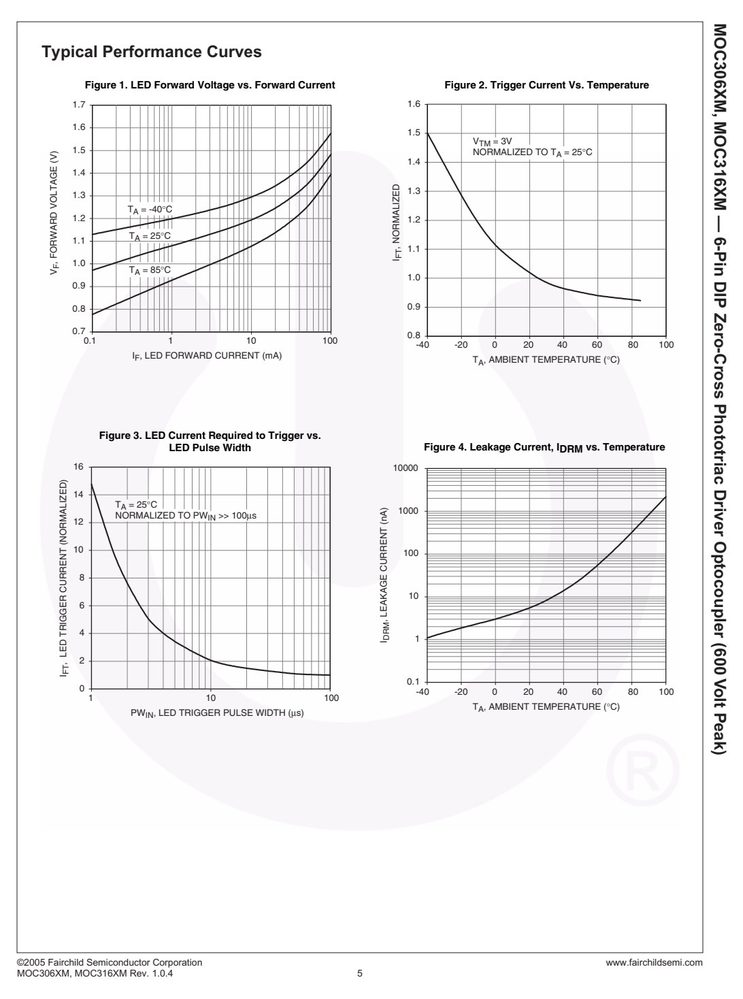

特性曲线（Typical Performance Curves）
