Name: LITEON MOC3063S-TA1
Brand: LITEON
Availability: InStock

产品实拍图

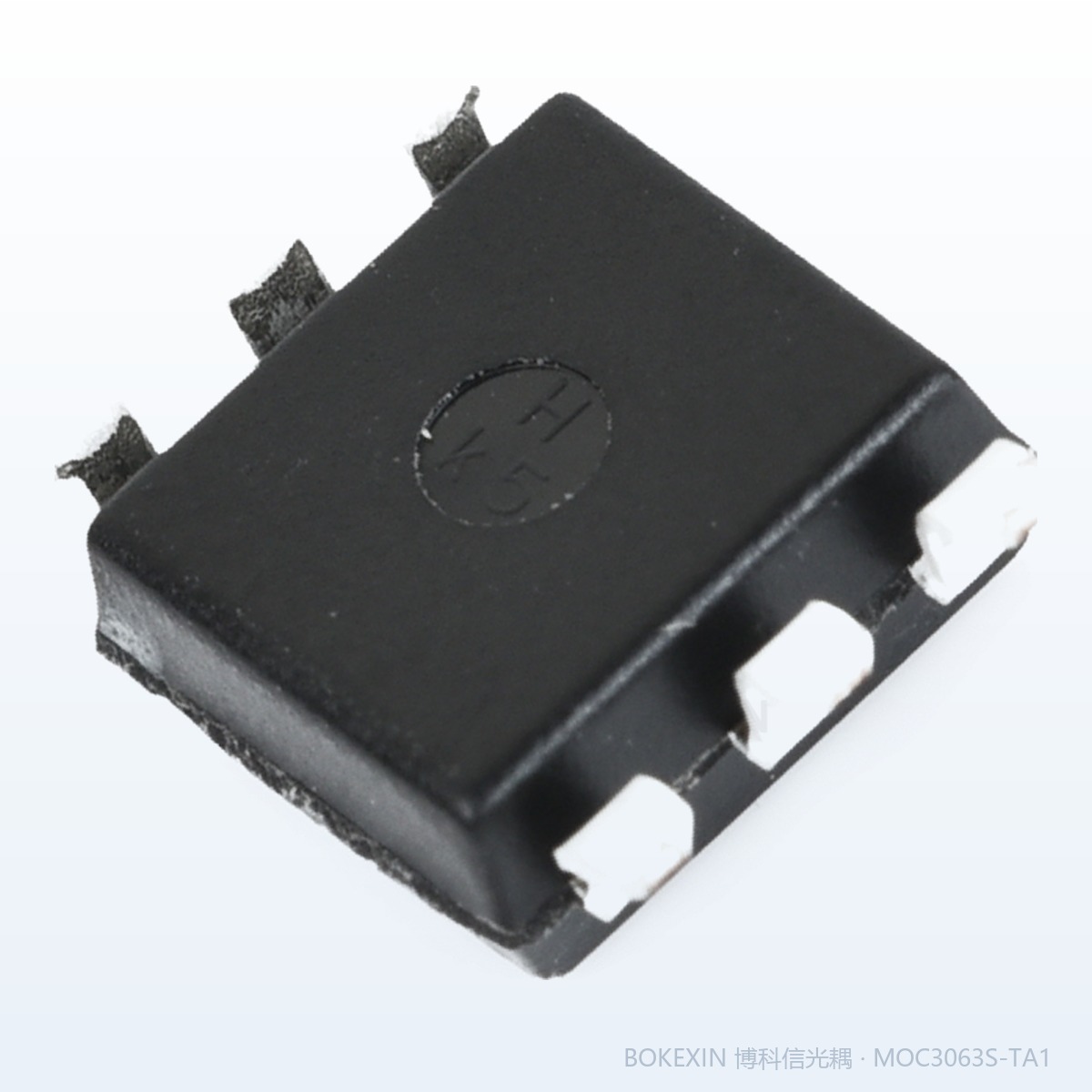

本页为博科信现货实拍（器件丝印见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

产品应用与封装尺寸

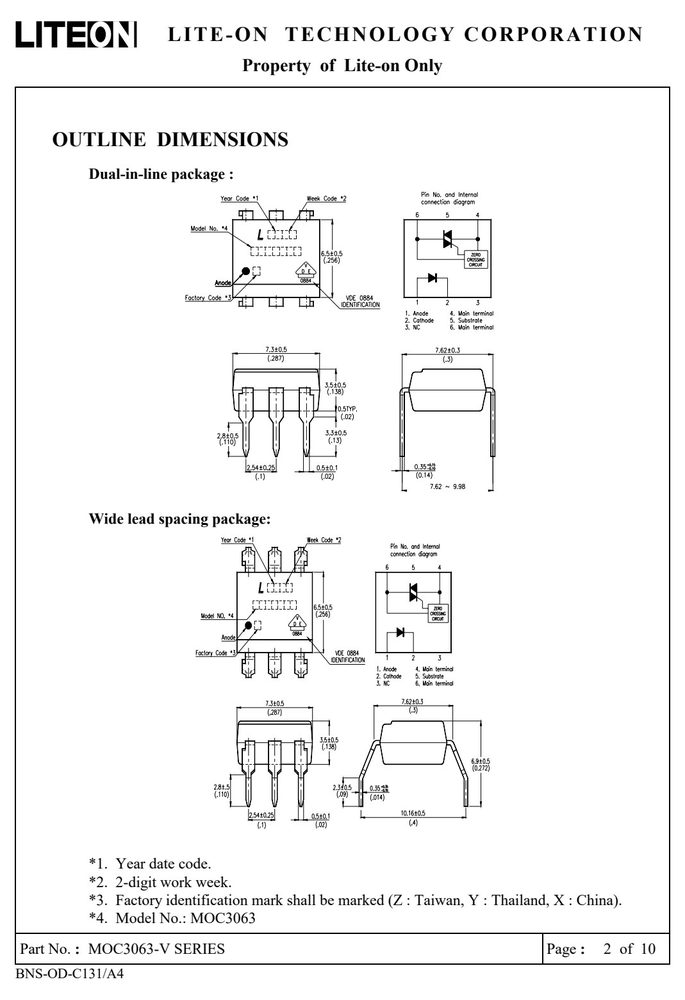

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

1. This specification shall be applied to photocoupler. Model No. MOC3063 as an option.
2. Applicable Models (Business dealing name)
Dual-in-line package :
MOC3063-V : 1-channel type
Wide lead spacing package :
MOC3063M-V : 1-channel type
Surface mounting package :
MOC3063S-V : 1-channel type
Tape and reel packaging :
MOC3063S TA1-V
3. The relevant models are the models Approved by VDE according to DIN VDE 0884:1992-06
Approved Model No.: MOC3063 / MOC3063M / MOC3063S /
VDE approved No.: 094722
(According to the specification DIN VDE 0884:1992-06)
L I T E - O N T E C H N O L O G Y C O R P O R A T I O N
Property of Lite-on Only

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	额定值	单位
		(	Ta = 25 C )
Forward Current	I	50	mA
Power Dissipation	P	120	mW
Off-State Output Terminal	Voltage V	600	V
OUTPUT	I	1	A
( PW=100µs, 120pps )	TSM
Collector Power Dissipation	P	150	mW
Total Power Dissipation	P	250	mW

数据来源：原厂规格书

*	包装	and	包装2	packaging	:
L I	T E - O N T	E C H N O L	O G Y C	O R P O R	A T I O N
	Property	of Lite-on	Only
ISOLATION	SPECIFICATION		ACCORDING	TO VDE	0884
Class of environmental test	-	DIN IEC68	30/100/21	-
Pollution	-	DIN VDE0110	2	-
	V -		850	V
Diagram	1	tp=60s, qc<5pC	1275	V
Test Voltage					Refer to the
(Between Input and					Diagram 1, 2
Diagram	2	tp=1s, qc<5pC	1594	V
Maximum Over-voltage	V t	= 10s	6000	V
	INITIAL	INI		PEAK
(ex. V ). And	there is possibility	that this product	occurs partial	discharge	in
Part No. : MOC3063-V	SERIES				Page : 7 of 10

规格书为原厂公开资料，点击在新窗口打开下载。

常备现货、免费送样、支持小批量试产。报出用量与封装要求，当天给报价与交期。
